6.4 Installation Procedure

NOTE

WARNING

Preparation of indoor unit

Avoid installation and use at those places listed below.

All wiring of this installation must comply with NATIONAL, STATE AND LOCAL REGULATIONS. These

instructions do not cover all variations for every kind of installation circumstance. Should further information be

desired or should particular problems occur, the matter should be referred to your local distributor.

BE SURE TO READ THESE INSTRUCTIONS CAREFULLY BEFORE BEGINNING INSTALLATION. FAILURE TO

FOLLOW THESE INSTRUCTIONS COULD CAUSE SERIOUS INJURY OR DEATH, EQUIPMENT MALFUNCTION

AND/OR PROPERTY DAMAGE.

Places where chilled or heated air circulates freely. When the installation height exceeds 3m warmed air stays

close to the ceiling. In such cases, suggest your client users to install air circulators.

Places where perfect drainage can be prepared and sufcient drainage.

Places free from air disturbances to the suction port and blowout hole of the indoor unit, places where the re

alarm may not malfunction or short-circuit.

Places with the environmental dew-point temperature is lower than 28 and the relative humidity is less than 80 %.

(When installing at a place under a high humidity environment, pay sufcient attention to the prevention of dewing

such as thermal insulation of the unit. )

Installation dimension is the following.

Places exposed to oil splashes or steam (e.g. kitchens and machine plants).

Installation and use at such places incur deteriorations in the performance or corrosion with the heat exchanger

or damage in molded synthetic resin parts.

Places where corrosive gas (such as sulfurous acid gas) or inammable gas (thinner, gasoline etc.) in generated

or remains. Installation and use at such places cause corrosion in the heat exchanger and damage in molded

synthetic resin parts.

Places adjacent to equipment generating electromagnetic waves or high-frequency waves such as in hospitals.

Generated noise may cause malfunctioning of the controller.

Before or during the installation of the unit, assemble necessary optional panel etc. depending on the specic type.

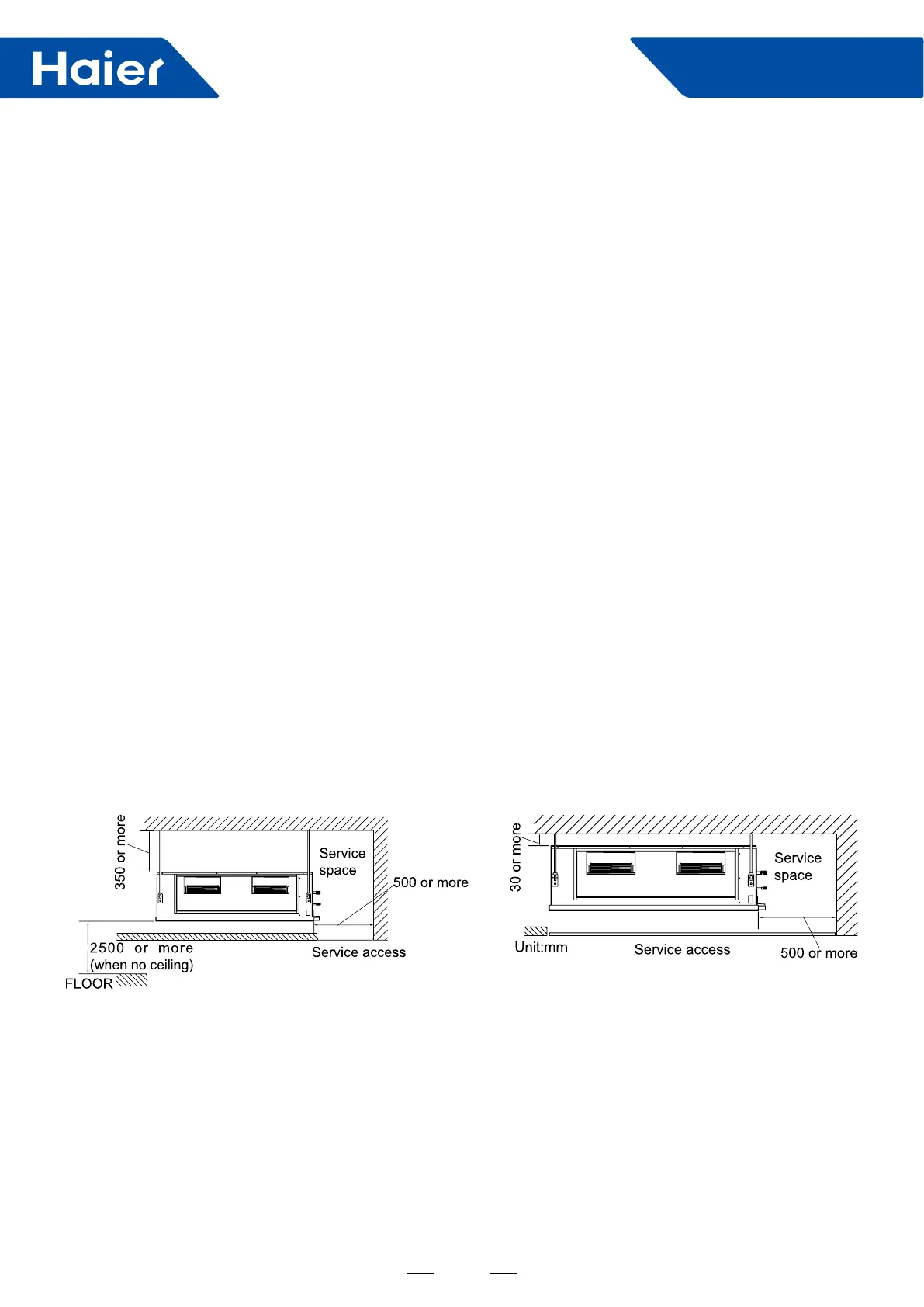

(1) Installation by which service space is made on top of the

unit (recommended)

Install the unit away from the ceiling by 350mm or more

(2) Installation by which service is carried out from the

bottom of the unit

Select places for installation satisfying following conditions and at the same time obtain the consent on the

part of your client user.
