53
Smart Power
Pipe size

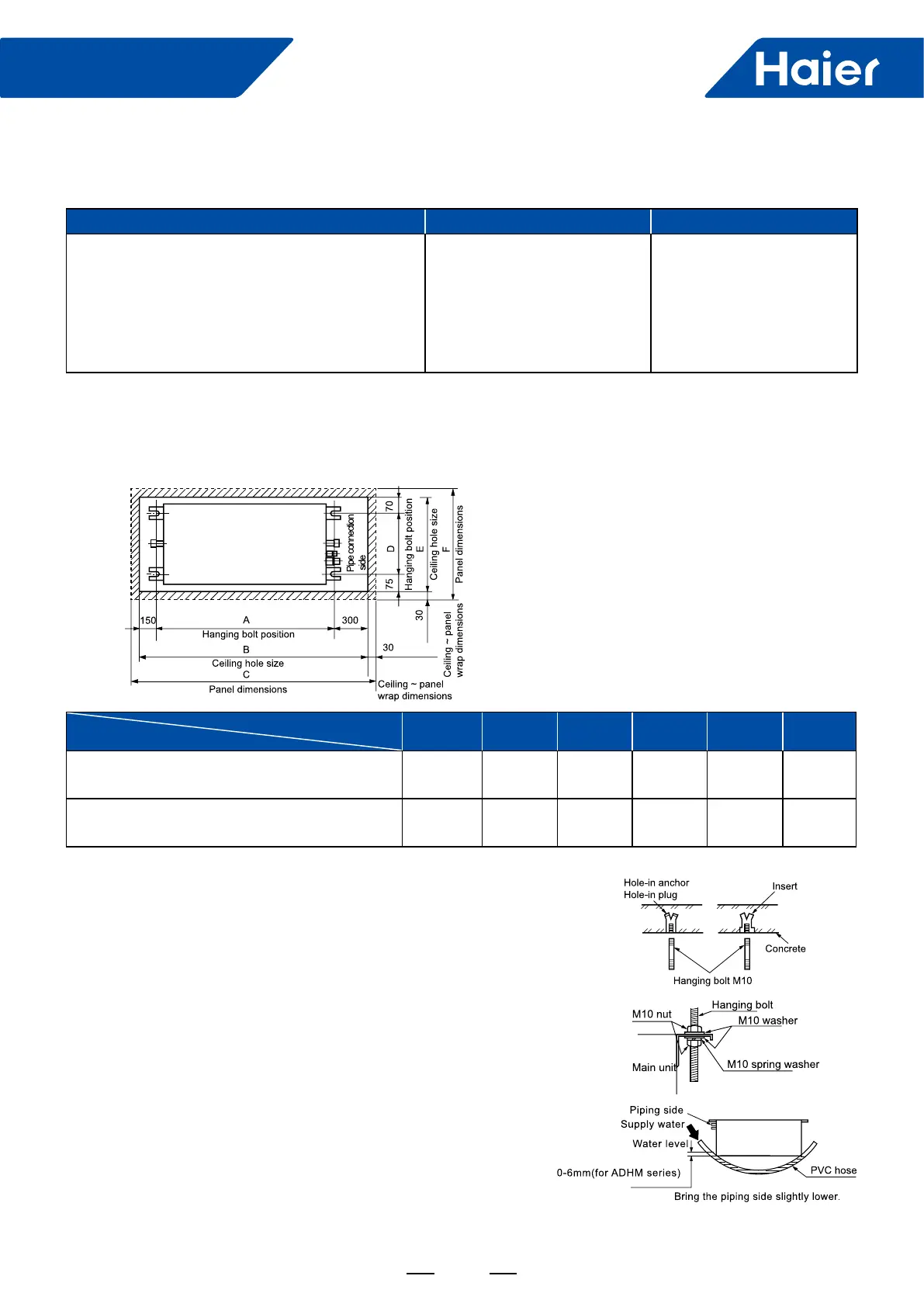

1. Preparation for suspending the unit
a.Size of hole at ceiling and position of hanging bolts
b.Hanger bolts installation
2.Installation of indoor unit
Note
Adjusting to the levelness
Use care of the piping direction when the unit is installed.
Fix the indoor unit to the hanger bolts.
If required, it is possible to suspend the unit to the beam, etc.
Directly by use of the bolts without using the hanger bolts.
When the dimensions of main unit and ceiling holes
does not match, it can be adjusted with the slot holes of
hanging bracket.
Make adjustment so that the relation between the lower surface
of the unit proper and water level in the hose becomes as given
below.
(a) Adjust the out-of levelness using a level or by the following method.
(b) Unless the adjustment to the levelness is made properly,
malfunctioning or failure of the oat switch may occur.
ADH071M1ERG ADH071M3ERG
ADH090M1ERG ADH105M1ERG
ADH125M1ERG ADH140M1ERG
Model Liquid side Gas side
ADH071M1ERG
ADH071M3ERG
ADH090M1ERG
ADH105M1ERG
ADH125M1ERG
ADH140M1ERG
φ9.52mm φ15.88mm
A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
ADH071M1ERG ADH071M3ERG ADH090M1ERG 983 1433 1493 593 740 800
ADH105M1ERG ADH125M1ERG ADH140M1ERG 1556 2006 2066 653 798 858
Dimensions
Model
