Smart Power

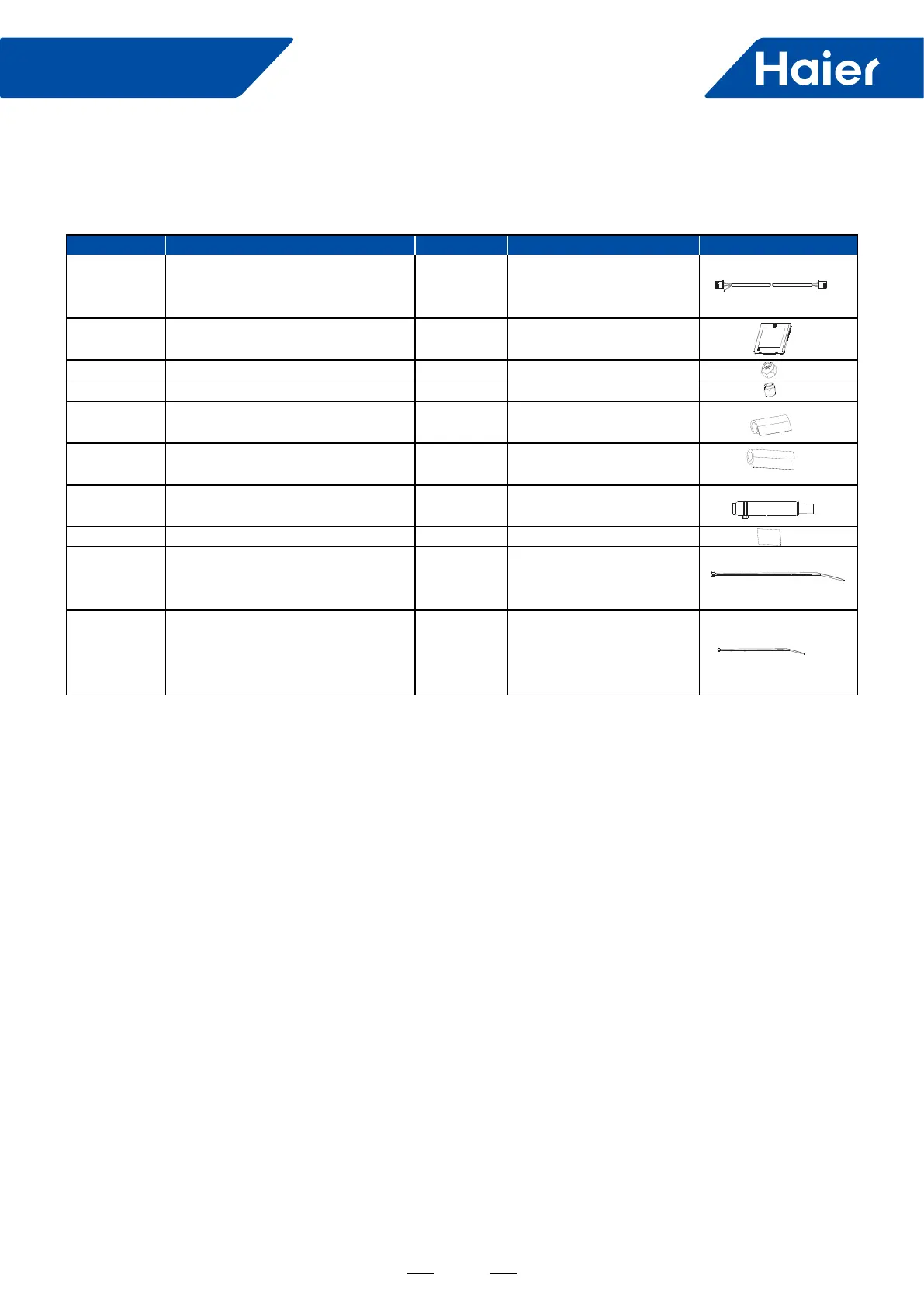

Accessories supplied with the indoor unit:
No. Name of parts Quantity Note Shape
1 Signal line 1
Connection between the
wired remote control and
electric control board
2 Wired controller 1
For Air conditioner
operation
3 3/8" Brass nut (liquid side) 1 For tightening the
Connecting pipe
4 5/8" Brass nut (gas side) 1
5 Coupler heat insulation(gas side) 1
For indoor side pipe
joint(gas side)
6 Coupler heat insulation(liquid side) 1
For indoor side pipe
joint(liquid side)
7 Drain pipe 1
Drainage ttings group
(For ADHM series only)
8 Instructions 1 Air conditioner operation
9 Cable tie(Large) 7
For xing the heat
insulation
(For ADHH series only)
10 Cable tie(small) 4
For xing the remote
controller cable and
connecting cable
(For ADHH series only)
Note
All wiring of this installation must comply with NATIONAL, STATE AND LOCAL REGULATIONS. These instructions
do not cover all variations for every kind of installation circumstance. Should further information be desired or
should particular problems occur, the matter should be referred to your local distributor.
WARNING
Be sure to read these instructions carefully before beginning installation. Failure to follow these instructions could
cause serious injury or death, equipment malfunction and/or property damage.
Preparation of indoor unit
Before or during the installation of the unit, assemble necessary optional panel etc. depending on the specic type.
Select places for installation satisfying following conditions and at the same time obtain the consent on the part of
your client user.
a.Places where chilled or heated air circulates freely. When the installation height exceeds 3m warmed air stays
close to the ceiling. In such cases, suggest your client users to install air circulators.
b.Places where perfect drainage can be prepared and sufcient drainage.
c. Places free from air disturbances to the suction port and blowout hole of the indoor unit, places where the re
alarm may not malfunction or short circuit.
d.Places with the environmental dew point temperature is lower than 28 C and the relative humidity is less than
80 %. (When installing at a place under a high humidity environment, pay sufcient attention to the prevention of
dewing such as thermal insulation of the unit. )
e.Installation dimension is the following.
