- 81 -
5. Data Rate 25KHz GMSK (AIS, TX and RX)
25KHz AFSK (DSC, RX only)
6. Sensitivity -107dBM(Message error rate: 20%)
7. Display stats ON, TX, RX1, RX2
8. Compliant with IEC62287-1 ClassB, ITU-RM.1371-1, IEC61162-1, EN-60945
9. Output power 2W(33dBm
±
1.5dB)
10. Demodulation GMSK

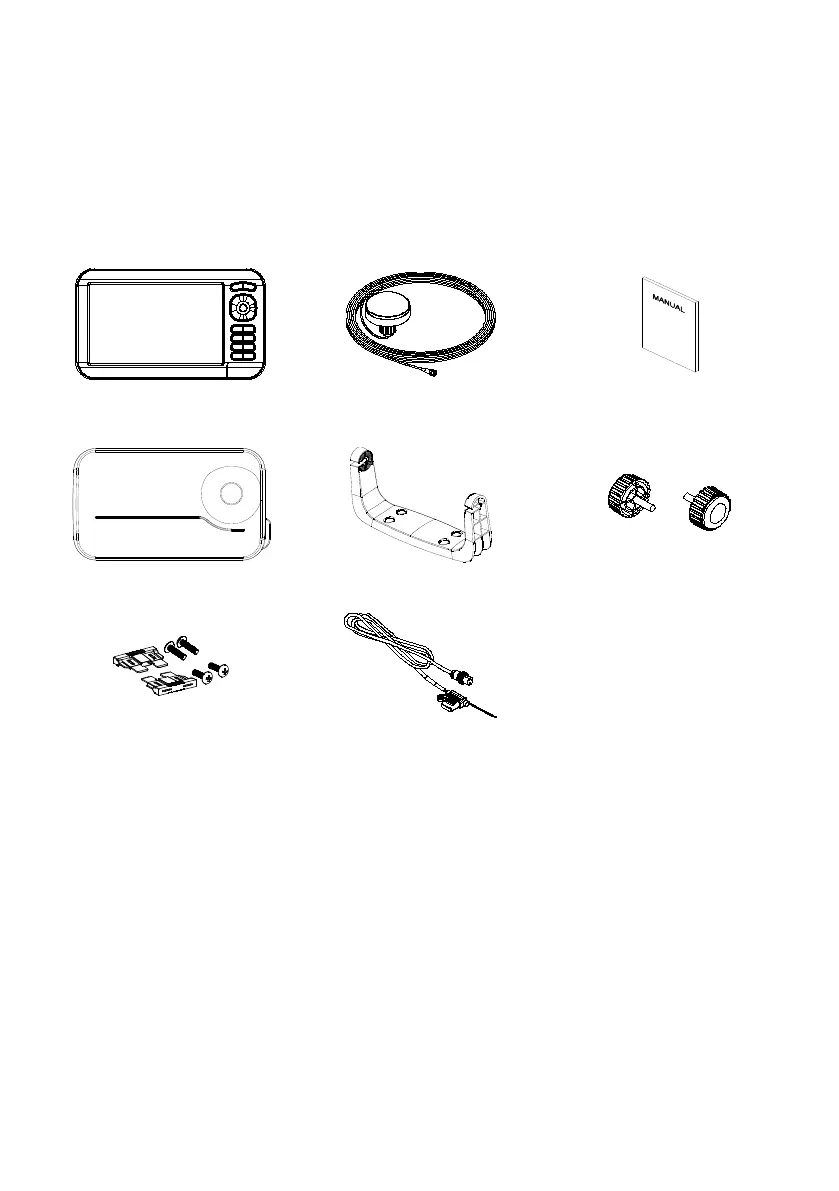

Standard Equipment Configuration List
Display unit External GPS ANT(option) Manual
Protector Mounting Bracket Knobs
Fuse & Bolt Power cable
