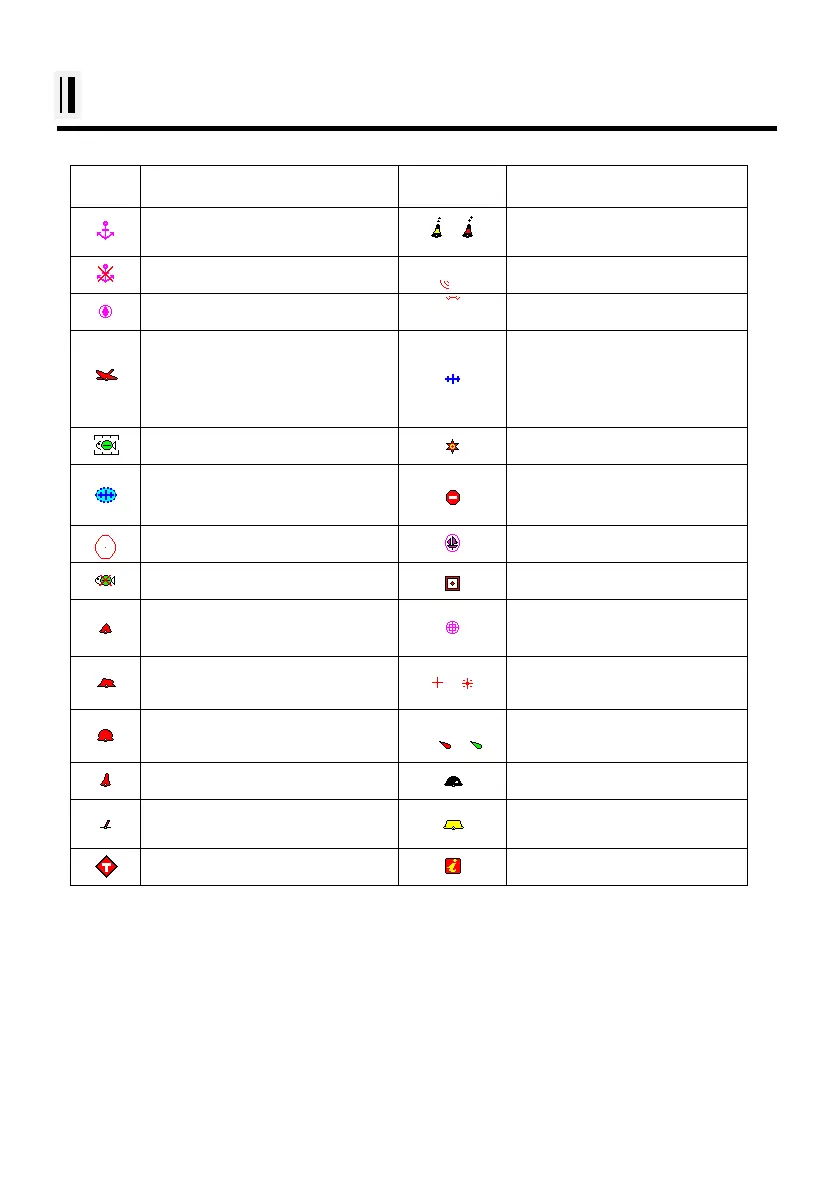

HY-MAP Icon
Icon Description Icon Description
Anchor berths
Beacon with color and
topmark
No Anchoring Area
Position of fog signal
Pilot boarding place
Radar reflector
Wreck showing any part of hull or
superstructure at the level of Chart
Datum.
Wreck, in over 200m or depth
unknown, which is not
considered dangerous to
surface navigation
Marine farm
Lighthouse
Wreck, depth unknown, which is
considered dangerous to surface
navigation
Military restricted area into
which entry is prohibited
Radar transponder beacons
Yacht harbor, Marina
Fishing prohibited
Lighted offshore platform
Conical buoy, nun buoy, ogival
buoy
Oil tanks
Can buoy, cylindrical buoy
Wrecks
Spherical buoy
Lights
Pillar buoy
Barrel buoy, tun buoy
Spar buoy, spindle buoy
Superbuoy. Superbuoys are
very large buoys
Tides
Port information(
