7 Displays
7.1 System Initialization, Power-On-Self-Test (POST), and STANDBY States
• The System Initialization state is initiated when the system is turned on and it lasts about 40 seconds. The FAULT indicator normally lights during a portion of the System
Initialization state.

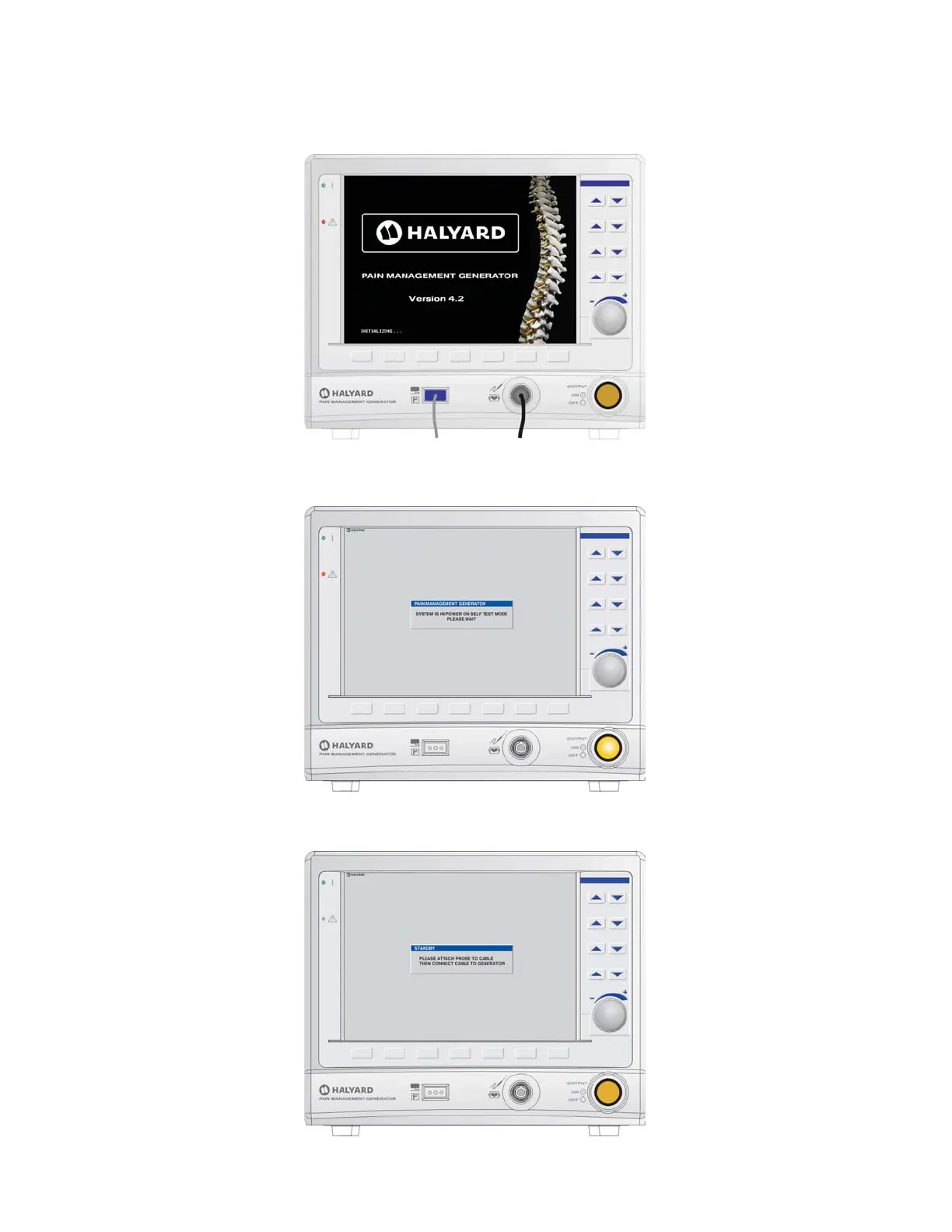

Figure 7-1 System Initialization State Display
• The POST state is initiated after System Initialization is completed. It lasts about 30 seconds.
Figure 7-2 POST State Display
• The STANDBY state is initiated upon successful completion of the POST state.
Figure 7-3 STANDBY State Display
