Halyard CO LIEF PMG-Basic - Special Event States; Recoverable Errors; Display; Settings

33
Settings
Aected Mode Parameter DESCRIPTION Range/Units Default Value Increment
IDL Mode
SECONDARY THERMOCOUPLE Disable optional Thermocouple Probe ENABLE/ DISABLE DISABLE N/A
INITIAL TIME Ramp-up interval to INITIAL TEMP set point 15 – 120 s 30 s 1 s
INITIAL TEMP Initial target for temperature ramping. 40° – 80°C 65°C 1°C
RAMP RATE
Rate at which temperature increases from the
INITIAL TEMP to the SET TEMP
0.5° – 5°C/min 2°C/min 0.1°C/min
POWER LIMIT Maximum power available for temperature control 1 – 50 W 50 W 1 W
7.8 Special Event States
7.8.1 Recoverable Errors

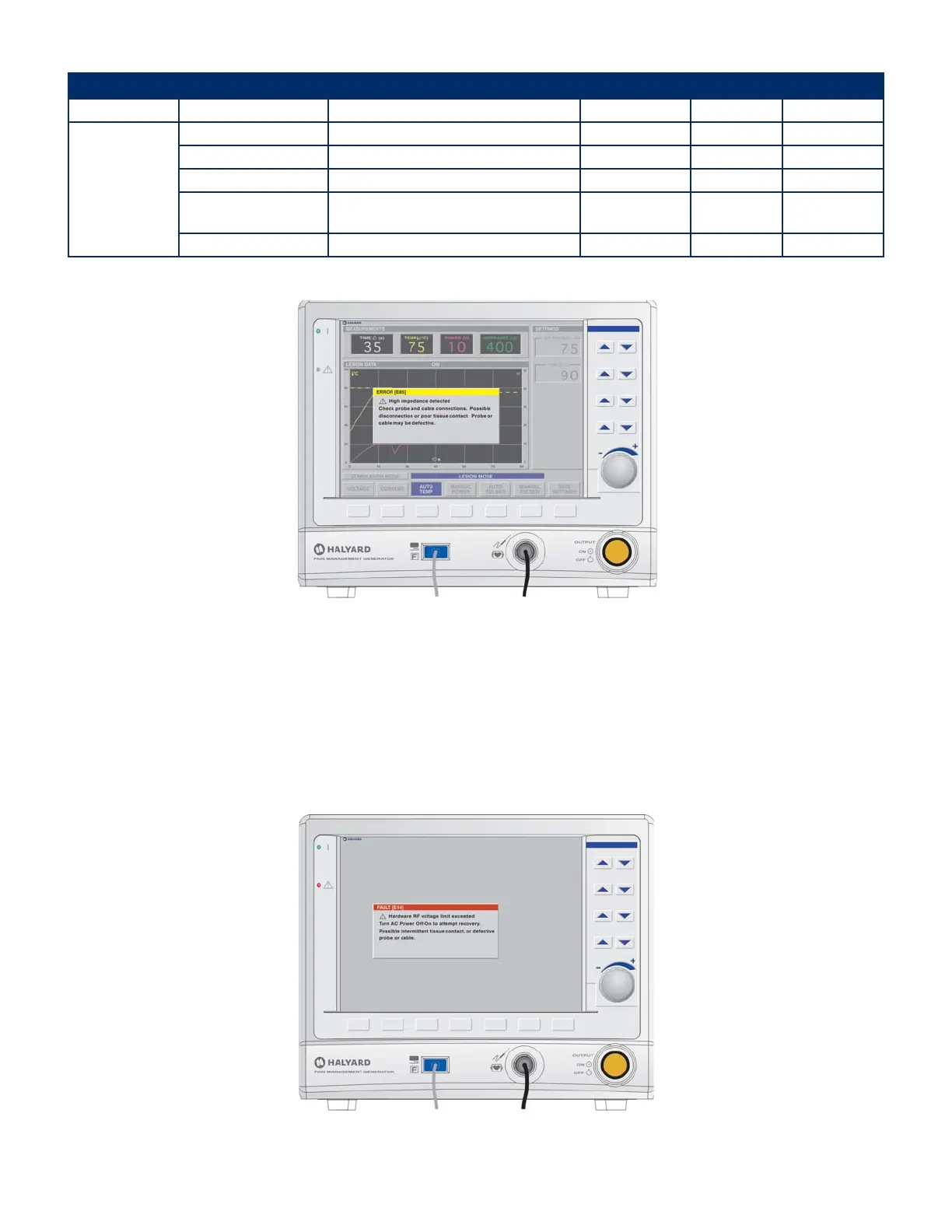

Figure 7-30 Recoverable Error Pop-Up Display
7.8.1.1 Display
• Yellow “error” indicator will display on screen.
• Error text will display in the center of the screen within the Status window.
7.8.1.2 Settings
• In all modes except Mult-Cool, a 10-second time-out returns device to previous READY mode. If the probe and cable have been detached the Generator returns to the
STANDBY state.
• In Multi-Cool, a 60-second time-out returns device to previous READY mode. If the probe and cable have been detached the Generator returns to STANDBY state.
• Recoverable Error: measurement values are shown, and settings are greyed out.
7.8.2 Non-Recoverable Faults
Figure 7-31 Non-Recoverable Fault Pop-Up Display
