5.4.3 Rear cutterblock cover
5.4.4 Kickback guards
When thicknessing, the kickback guards prevent the
workpiece from kicking back.
! Kickback guards
Note: Only properly adjusted (smoothly operating and sharp) kickback guards will perform this protective
function! See Chapter >10.3.1 Checking/cleaning the kickback guards<
Fig. 5-13: Kickback guards
5.4.5 Drilling chuck guard
The drilling chuck guard covers the 2-jaw drilling chuck
on the cutterblock.
!Drilling chuck guard
Fig. 5-14: Drilling chuck guard
When surface planing, the rear cutterblock cover screens
the part of the cutterblock that remains exposed behind
the fence. Attach the rear cutterblock cover to the back of
the combination fence.
The rear cutter block guard is fitted with an additional
mount to stabilise the fence.

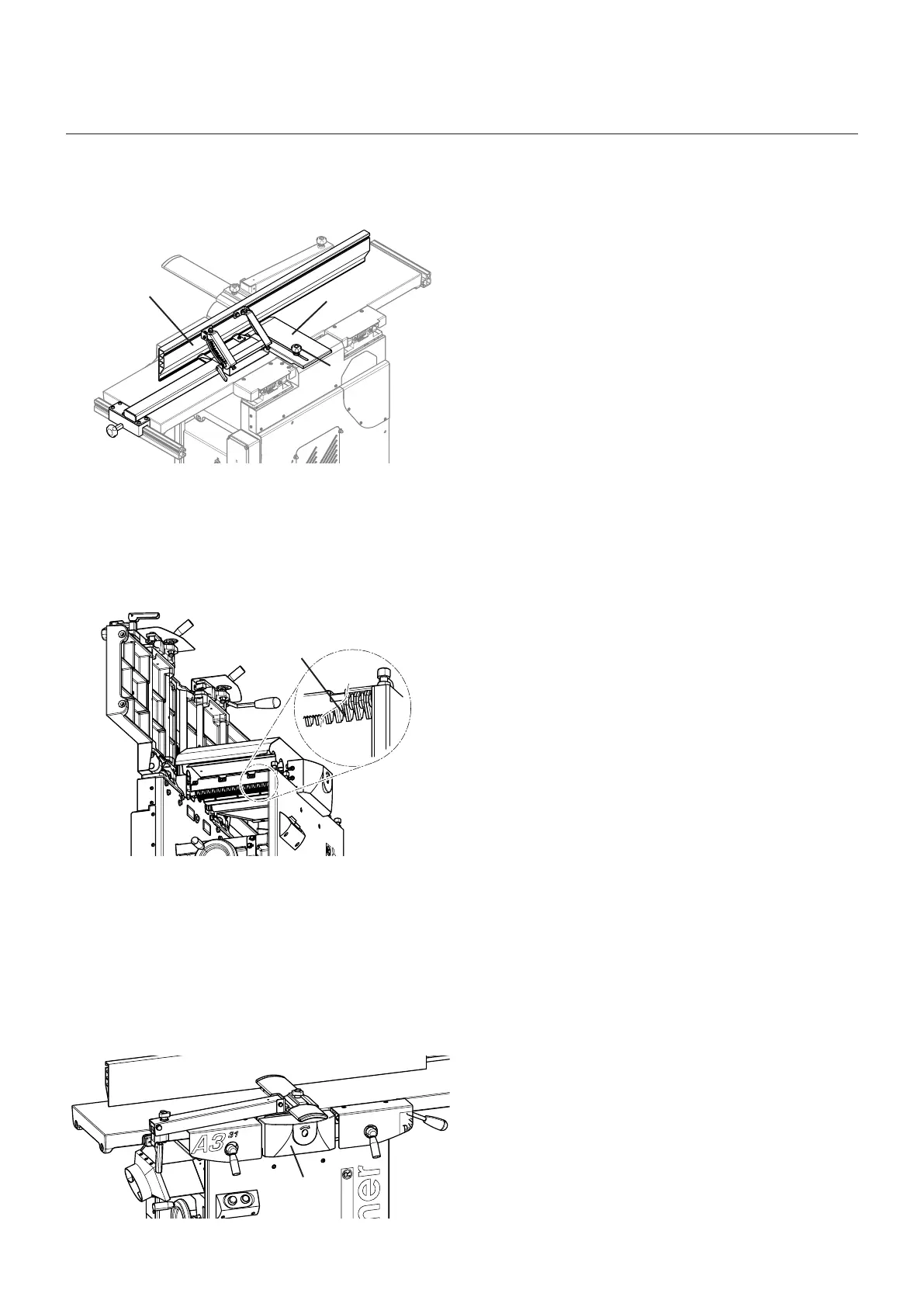

Fig. 5-12 Rear cutterblock cover
! Planer fence
" Cover
# Clamping screw
Assembly
