Hammer A3-26 - Retooling from Drilling to Planer;Thicknesser

40
#
$
!
"
Planer-Thicknesser
A3-26 / A3-31 / A3-41
8.10 Retooling from a drilling operation to a planer or a thicknesser operation

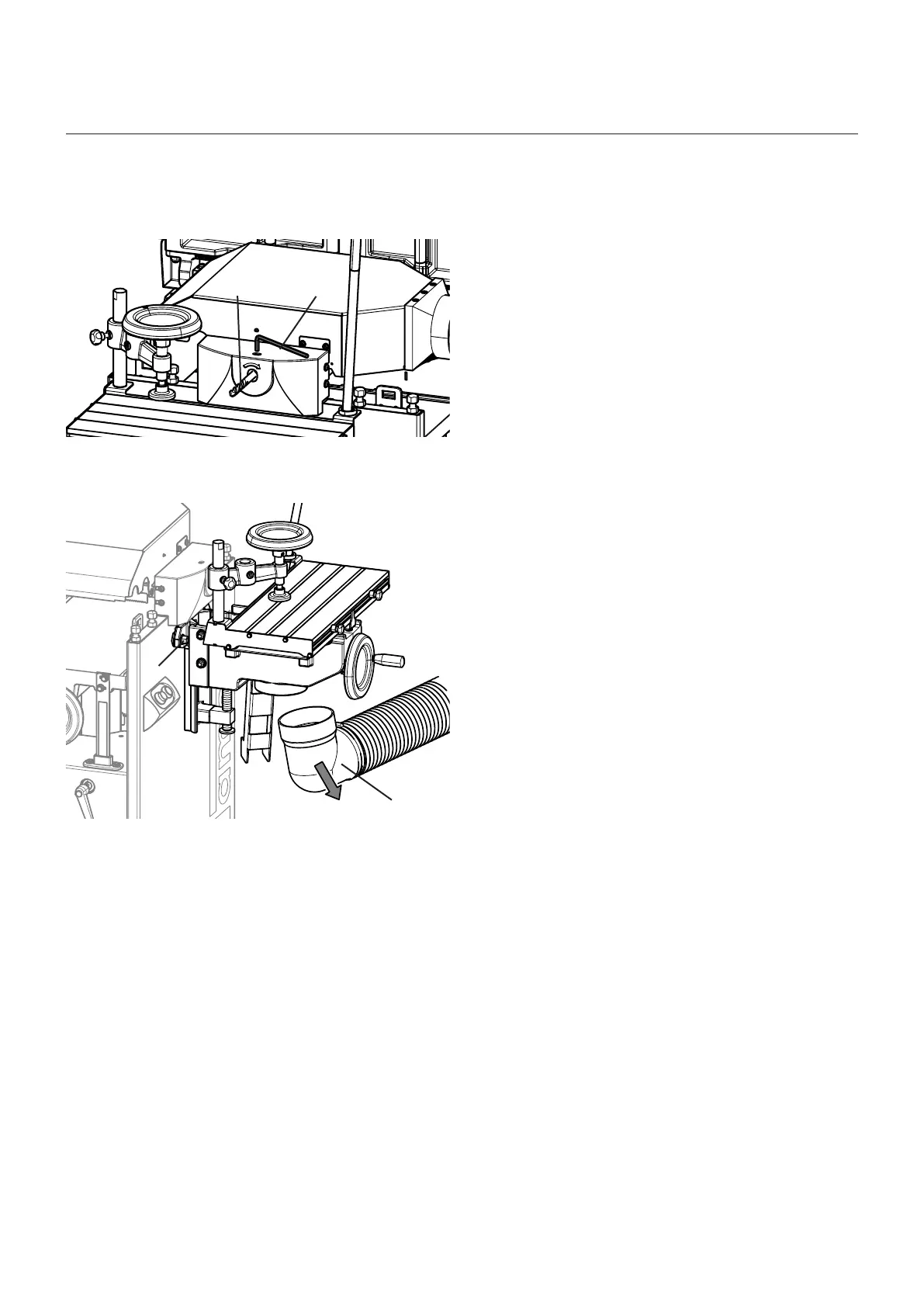

Fig. 8-15: Unchuck the drilling tool
1. Prior to starting to work with the machine, switch it off
and secure it against being switched on again.
2. Unchuck the drilling tool:
• Open the 2-jaw chuck with an 8 mm Allen key
• Remove the drilling tool from the drilling chuck
! Drilling tool
" Allen key
3. Removing the drilling support:
• Release the extractor hose from the
extraction port
• Affix the drilling table:
- Depth adjustment in the hindmost position and
- Adjust the length in the middle position
• Loosen the nuts.
• Detach the drilling table
4. If required, change the tooling to surface planing or
thickness planing.
# Nuts
$ Vacuum connector
Fig. 8-16: Removing the drilling support
Making adjustments and preparations
