MIDI
5. PROGRAM - BANK MSB
6. PROGRAM - BANK LSB
7. PROGRAM - PROGRAM CHANGE
These are for setting the Bank Select and the Program Change data to be transmitted by this zone.
Please consult the users guide/manual for your specific piece of outboard gear that you wish to control
for the exact combination of commands that allow bank and program change.
You can choose 0 - 127 in the Bank MSB and the Bank LSB, and 1 - 128 in the Program Change.
8. NOTE - OCTAVE
This is for selecting the octave to be transmitted by this zone. The octave that is transmitted may be set
to be different than the octave that you may be playing.
9. NOTE - VOLUME
This is for setting the volume (= Control Change #7) of this zone. However, the set value will be null,
if the CC# (item #14) is at “7.VOL”.
10.NOTE - PAN
This is for setting the Pan (= Control Change #10) of this zone.
NUMBER BASE
Some MIDI modules map their presets
from 0 - 127, and some from 1 - 128. If
your instrument does not respond to the
exact number of program change, you
may need to decrease the program
change number here by the value [1].

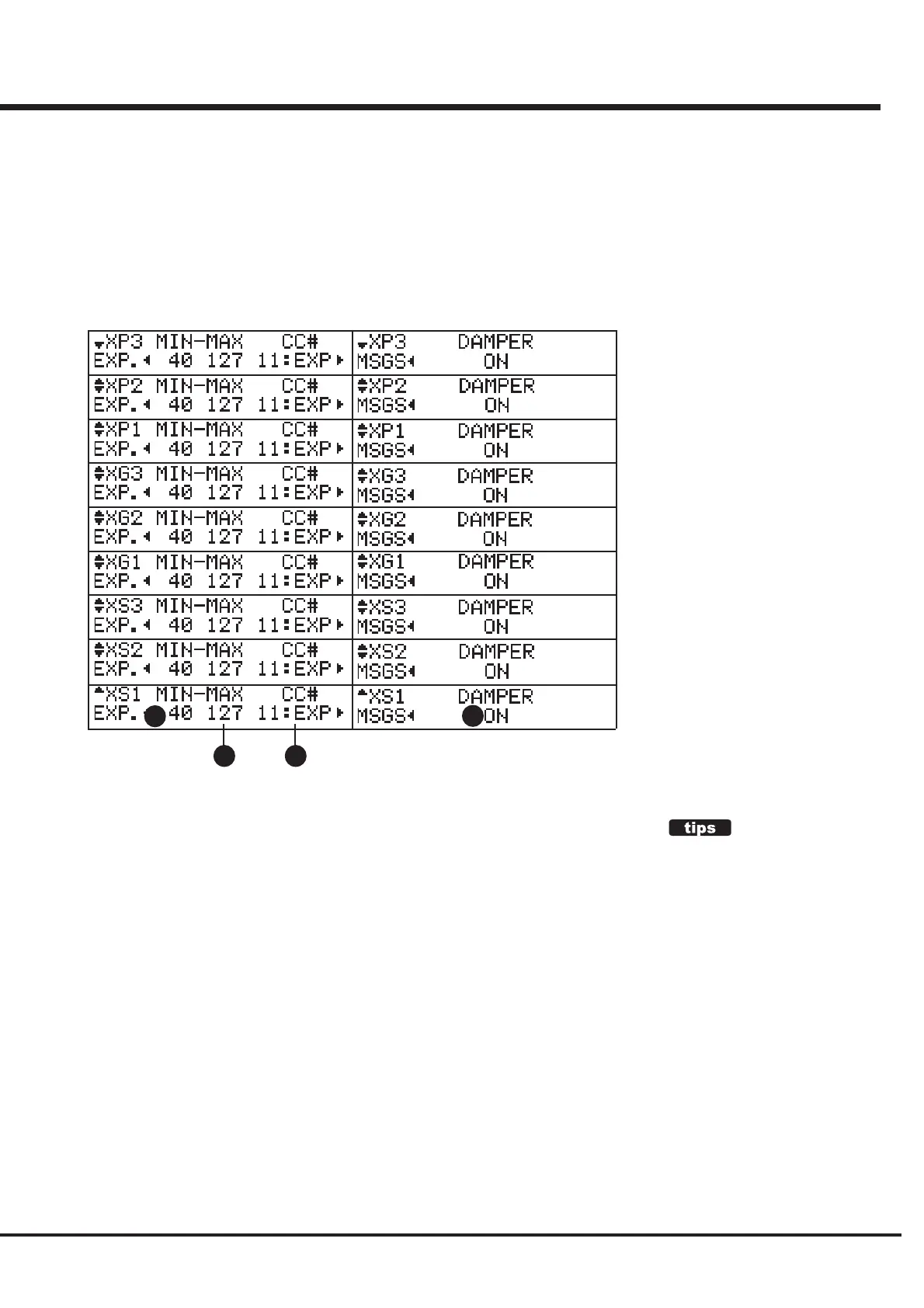

103
12
13 14
15
