Owner’s Manual
EX. ZONE (EXternal ZONE)
There are 3 External Zones (SL1, 2, 3) for the Swell manual, 3 (GR1, 2, 3) for the Great manual
and 3 (PD1, 2, 3) for the Pedalboard.
1. SWITCH
This switch “turns on” the selected External Zone.
2. MIDI CHANNEL
This is for choosing the External Zone’s transmitting MIDI channel.
The range is 1 - 16, and OFF.
3. MAP - LOW
4. MAP - HIGH
These set the playing range of the chosen External Zone on each of the Swell, Great manuals and
Pedalboard.
Set the lowest note at LO and the highest one at HI. To forbid sending note data, set the HI
parameter to “OFF”.
NOTE: For 3 and 4, you can set the value by pressing the [RECORD] button, while holding down the
desired note on the manual (or pedalboard).
To control external MIDI equipment, ranges on the key-
board of this organ are assigned. They are called “External
Zones”.
A MIDI Pedalboard connected to the MIDI PEDAL IN
can control the MIDI
equipment by the Pedal EXTERNAL
ZONE.

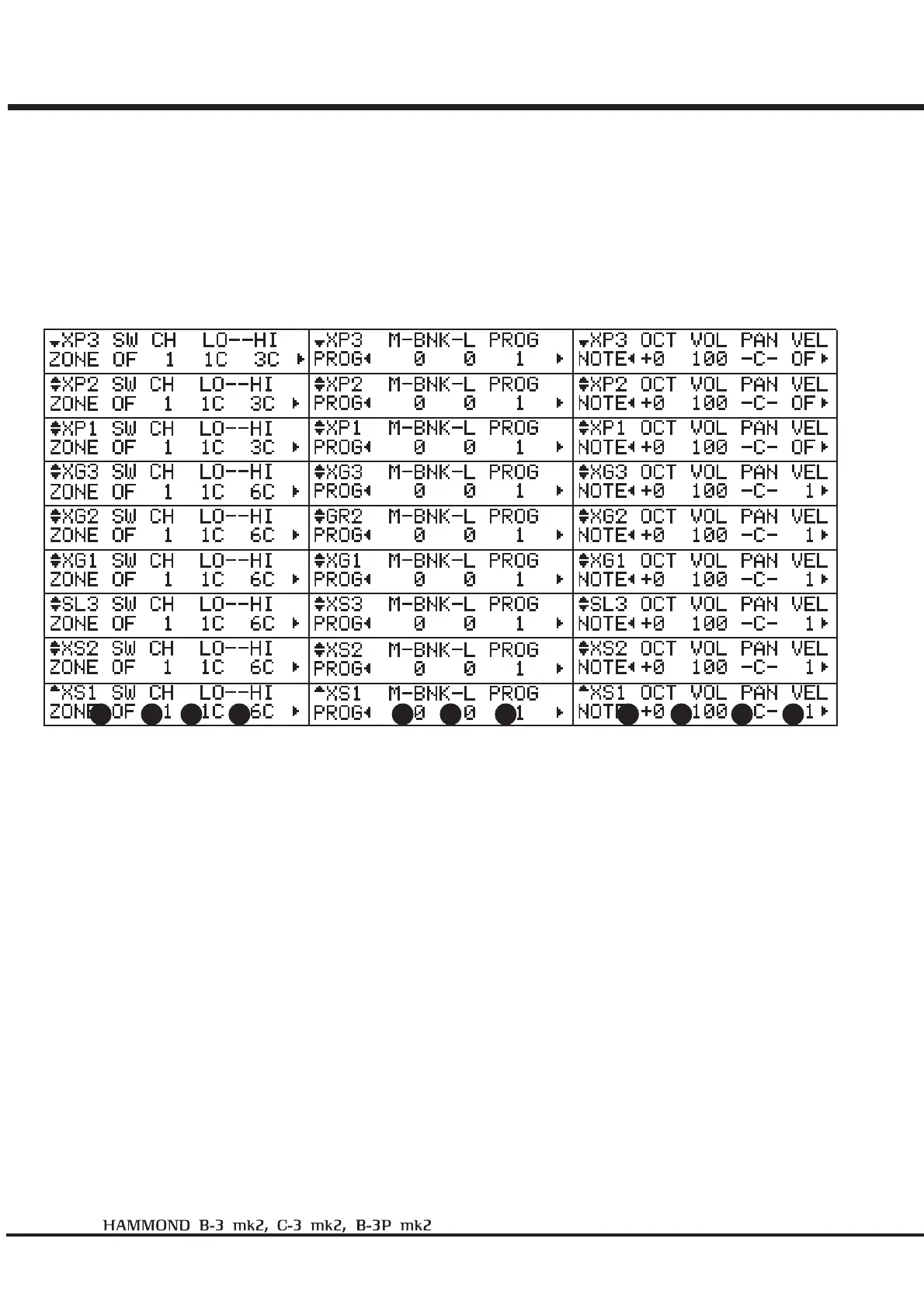

To locate this mode:
Press the [MENU/EXIT] button and display MENU, select Page
C by the [PAGE] button, then press [1] EXZONE.
