Hammond C-3 User Manual

Introduction
23

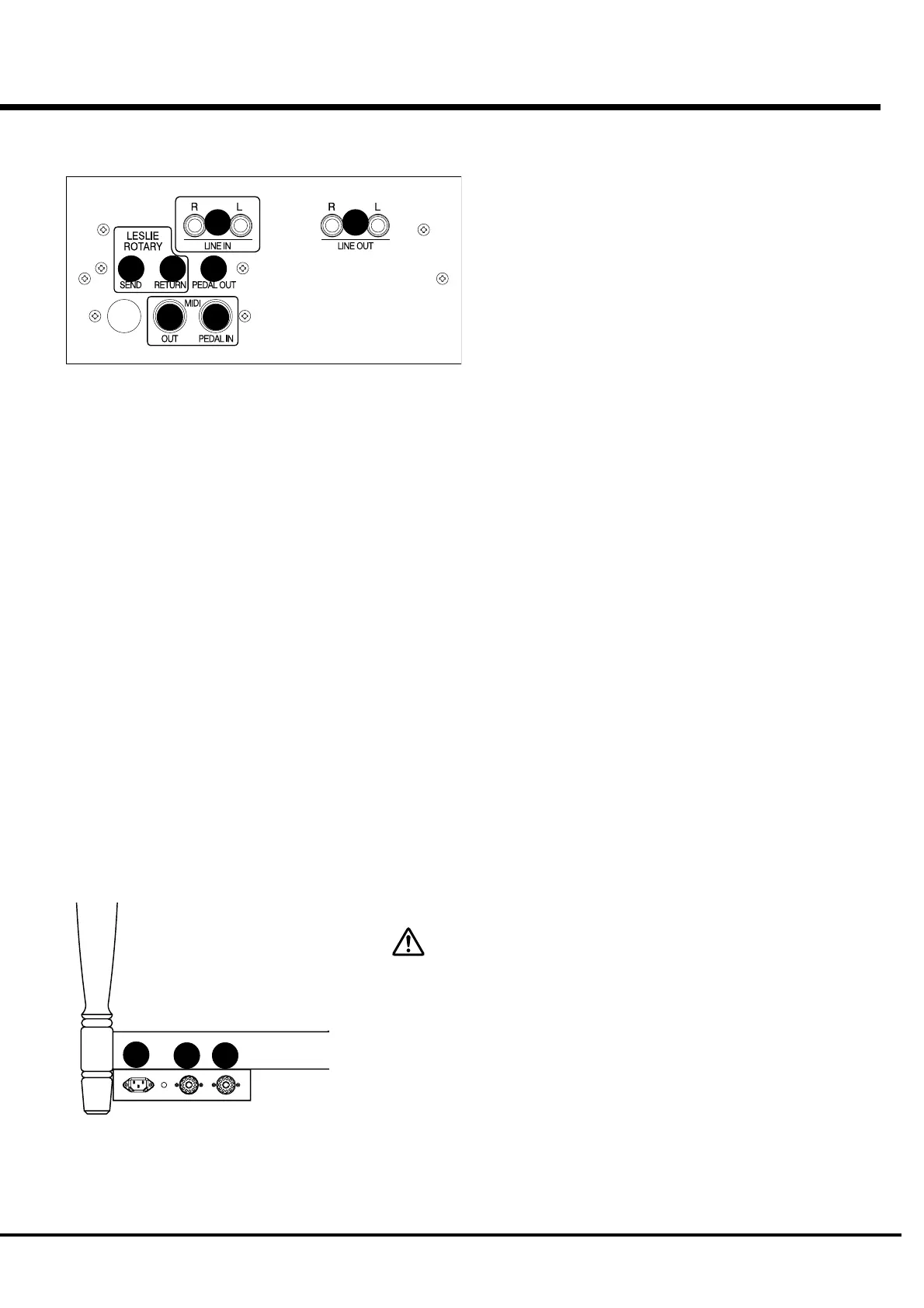

Accessory Panel (B-3 mk2, C-3 mk2)
SOUND INPUT TERMINAL
37. LINE IN Jack
This is the terminal for connecting an external sound module or
a CD player. The signals input to this jack are output to the LINE
OUT jack, headphone jack, the stationary channel of each Leslie.
(Rating Input Level: 1.23V +4dBm, Input Impedance: 5kΩ)
SOUND OUTPUT TERMINAL
38. LINE OUT Jack
The main output terminals, post internal effects (includes the
built-in Leslie effect).
Use both L and R, if the connected mixer or monitor speaker is
stereo, and use only L, if monaural.
When the Leslie speaker is connected, the built-in Leslie effect
appars on the L output only.
39. PEDAL OUT Jack
This is an independent output terminal for the Pedal part.
EFFECT LOOP
40. SEND Jack
This is a post-internal effects patch-out point.
If a plug is inserted to this jack, signals inside the organ are cut
off. (Rating Output Level: 1.23V +4dBm, Output Impedance:
600Ω)
41. RETURN Jack
This is a post-internal effects patch-in point.
This jack is used also as the input terminal to the rotary channel
from an external sound source. (Rating Input Level: 1.23V
+4dBm, Input Impedance: 10kΩ)
MIDI TERMINAL
42. MIDI OUT Jack
This is for sending playing information to external MIDI equip-
ment such as a Synthesizer or a Sound Module.
43. MIDI PEDAL IN Jack
This is the input for a MIDI Pedalboard.
Power Panel (B-3 mk2, C-3 mk2)
42. AC Inlet
Connects the A.C. Power Cable.
CAUTION
This organ shall be connected to a MAINS socket outlet with a protec-
tive earth (ground) connection.
LESLIE SOCKETS
45. MAIN
Connect the first Leslie speaker here. If the Main/Echo switch (optional) is con-
nected to the MAIN/ECHO jack on the Volume Panel(#22), the sound is not
output unless you set the switch at the MAIN position.
46. ECHO
Connect the second Leslie speaker to this. Sound is sent here, if you set the
optional Main/Echo switch to the echo position when the Main/Echo switch is
connected to this organ.
40 41
37 38
42 43
44
45 46
39
