Connect the Pedalboard
1. Place the Pedalboard on the floor in front of the organ.
2. Take the Pedal Cable out of the organ and insert the plug
into the connector on the Pedalboard.
3. Hold the plug with the “Retention Hook” and lock it on
by turning the screw knob.
4. Slide and push in the Pedalboard beneath the organ until
it stops.
HA<O>
HA<O>

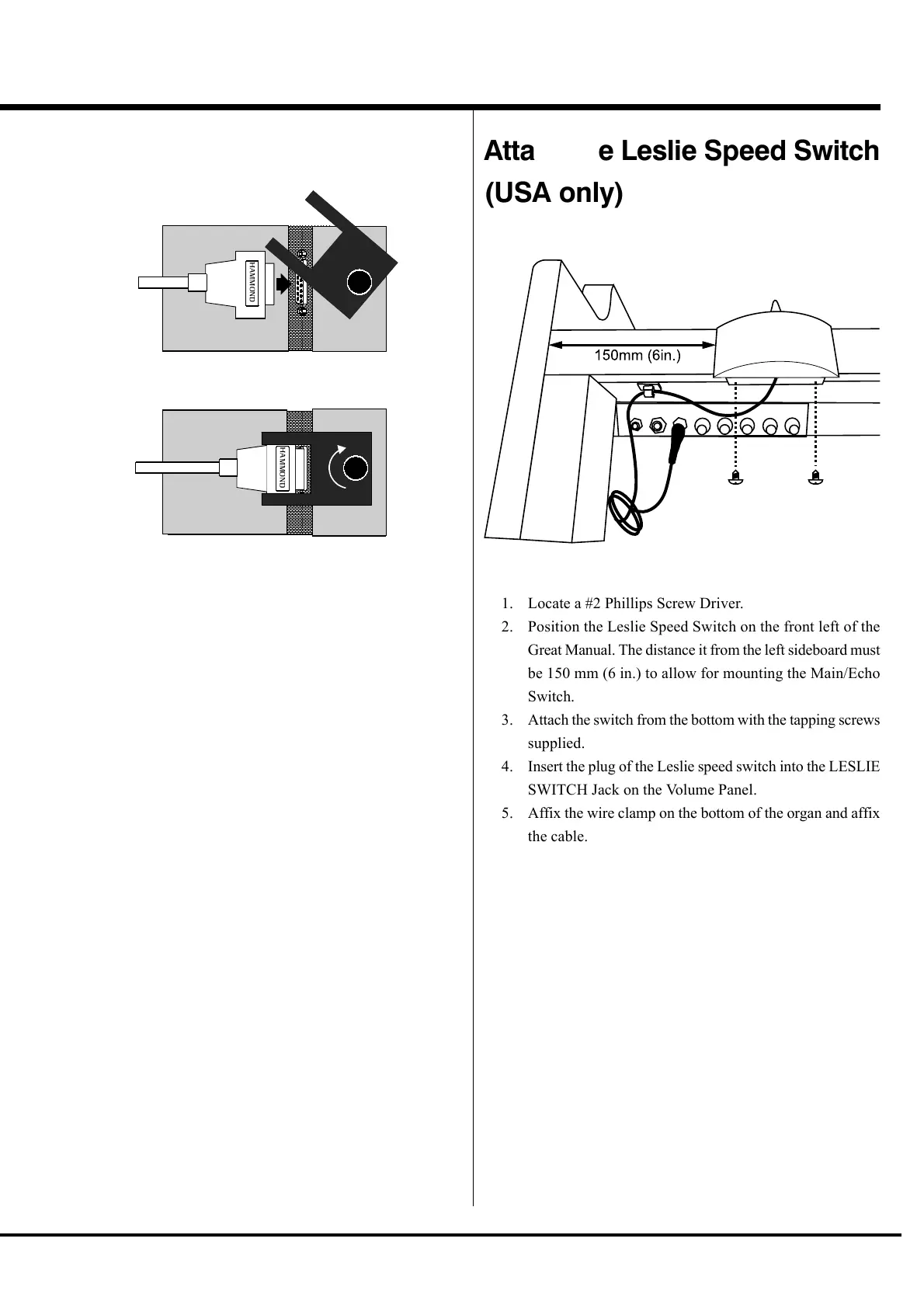

1. Locate a #2 Phillips Screw Driver.
2. Position the Leslie Speed Switch on the front left of the
Great Manual. The distance it from the left sideboard must
be 150 mm (6 in.) to allow for mounting the Main/Echo
Switch.
3. Attach the switch from the bottom with the tapping screws
supplied.
4. Insert the plug of the Leslie speed switch into the LESLIE
SWITCH Jack on the Volume Panel.
5. Affix the wire clamp on the bottom of the organ and affix
the cable.
Attach the Leslie Speed Switch
(USA only)
