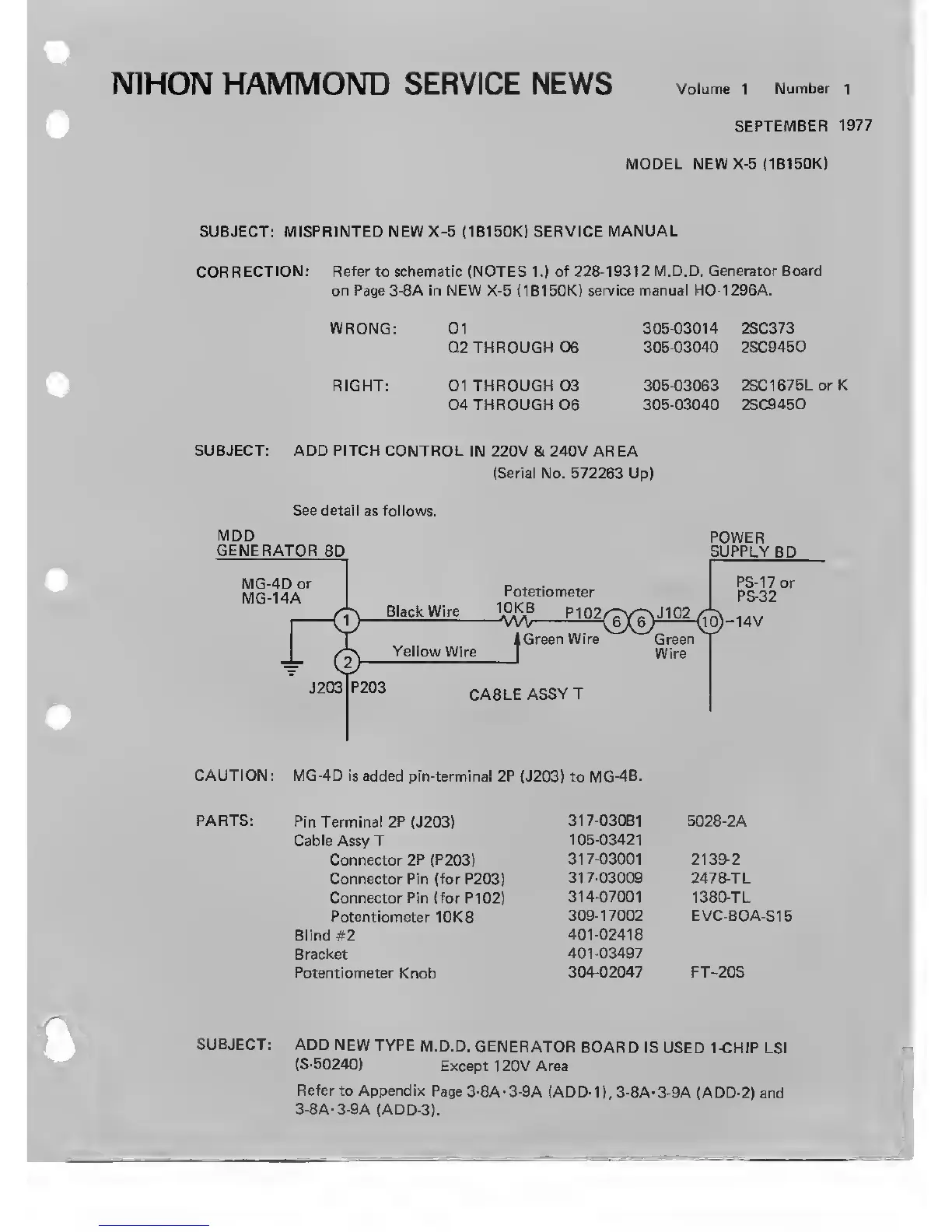

ROL IN
220V 8. 240V AREA
(Serial No. 572263 Up)
See detail as follows.
CAUTION: MG-4D is added pin-terminal
2P (J203) to MG-4B.
PARTS:
Pin
Terminal
2P
(J203)
317-03081
5028-2A
Cable Assy T
105-03421
Connector
2P (P203)
317-03001 2139-2
Connector Pin (for P203)
317-03009
2478-TL
Connector
Pin
(for P102)
314-07001
1380-TL
Potentiometer
10KB
309-17002
EVC-BOA-S15
Blind #2
401-02418
Bracket
401-03497
Potentiometer
Knob
304-02047
FT-20S
ADD NEW
TYPE
M.D.D. GENERATOR
BOARD
IS USED
1-CHIP LSI
(S50240)
Except 120V Area
Refer to Appendix
Page
3-8A-3-9A (ADD-1I,
3-8A-3-9A (ADD-2)
and
3-8A-3-9A (ADD-3).
