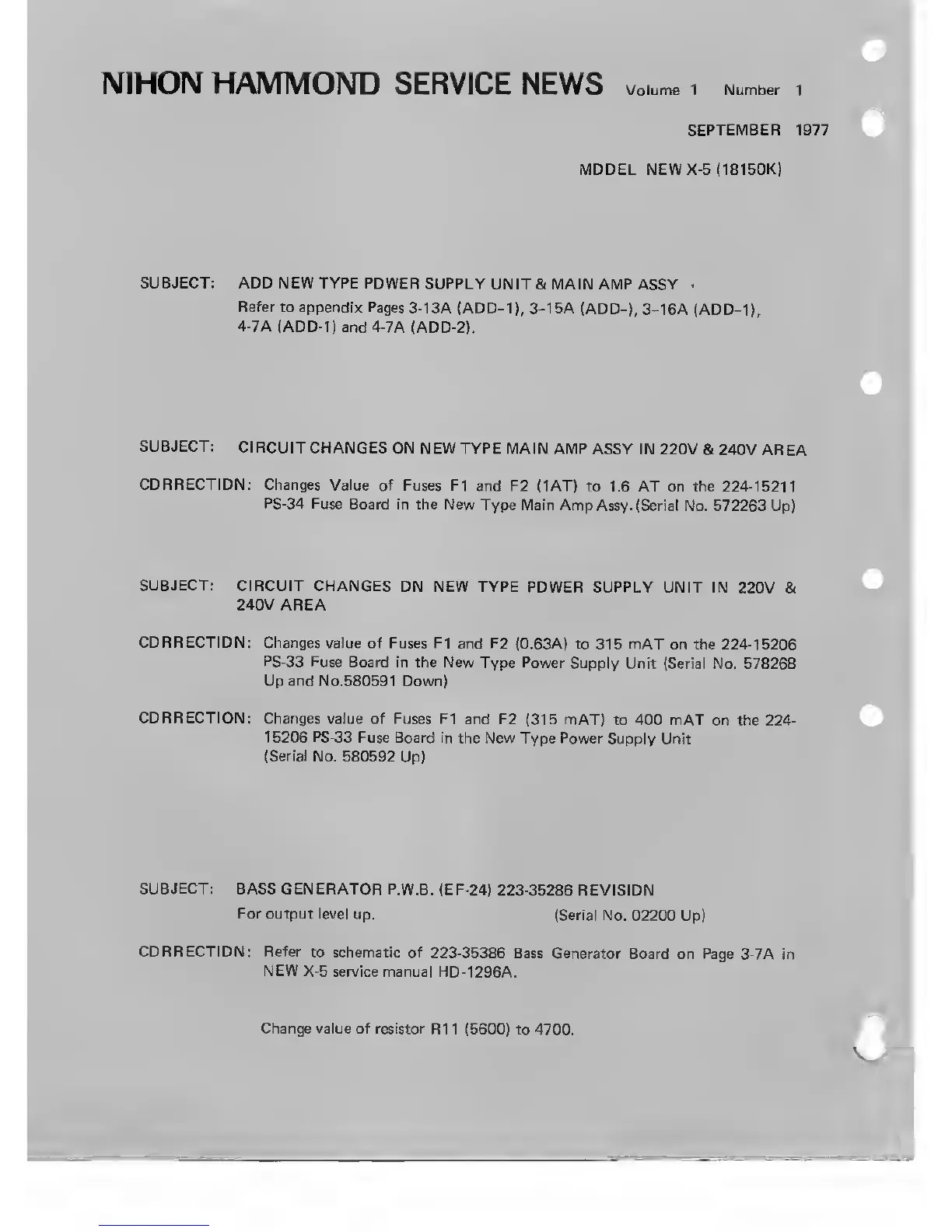

Hammond X-5 User Manual

ADD NEW TYPE POWER
SUPPLY
UNIT & MAIN AMP ASSY
Refer to appendix
Pages
3-13A (ADD-1), 3-15A
(ADD-),
3-16A (ADD-1),
4-7A
(ADD-1) and
4-7A (ADD-2I.
T:
CIRCUIT
CHANGES ON NEW TYPE
MAIN AMP ASSY
IN 220V
& 240V AREA
:TION: Changes
Value of Fuses F1
and
F2
(1
AT) to
1.6
AT
on the
224-15211
PS-34 Fuse
Board in the New
Type Main Amp
Assy. (Serial No. 572263 Up)
CIRCUIT
CHANGES
ON NEW TYPE POWER
SUPPLY UNIT IN 220V
240V
AREA
TION: Changes
yalue of Fuses F1
and
F2
(0.63A) to
315 mAT on the
224-15206
PS-33 Fuse
Board in the New
Type
Power
Supply
Unit (Serial No. 578268
Up and No.
580591 Down)
TION:
Changes value of Fuses F1
and F2
(315 mAT) to 400 mAT
on the
224-
15206 PS-33 Fuse
Board in
the New Type Power
Supply Unit
(Serial No.
580592 Up)
SUBJECT: BASS
GENERATOR P.W.B.
(EF-24) 223-35286
REVISION
For output level
up.
(Serial No.
02200 Up)
CORRECTION: Refer
to schematic of 223-35386
Bass Generator
Board on Page
3-7A in
NEW
X-5 service manual HO-1296A.
Change value of resistor R1
1 (5600) to 4700.
