HAMPTON BAY H27 - Horizontal Venting Configurations; Horizontal Venting with Two 90° Elbows

24 | Hampton
®
H27E-11 Direct Vent Freestanding Gas Stove
installation

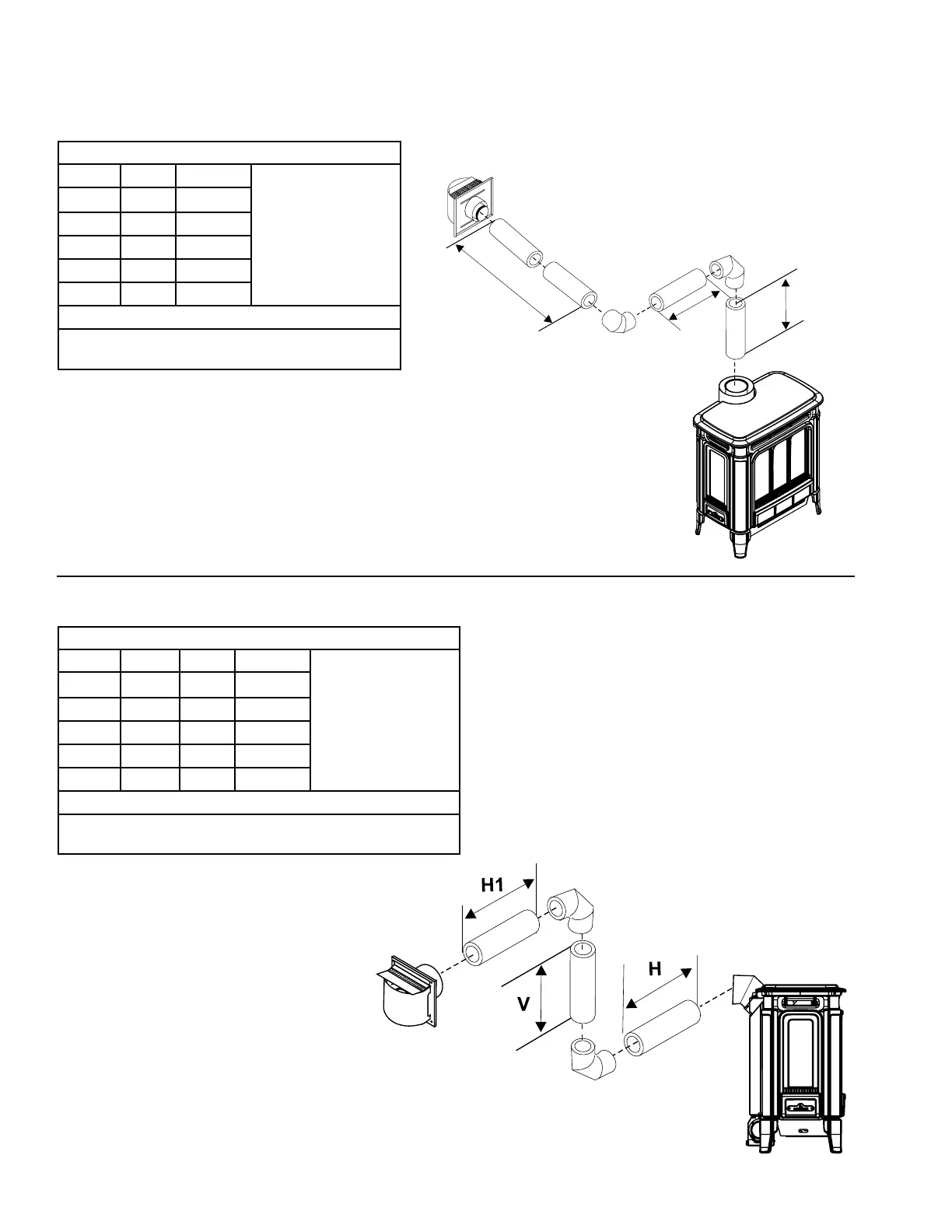

Horizontal Venting with Two (2) 90
o
Elbows
Horizontal Venting with Two (2) 90
o
Elbows
H
H1
V
One 90
o
elbow = Two 45
o
elbow
Option V H + H1
With these options, maxi-
mum total pipe length is
30 feet with minimum of
6 feet total vertical and
maximum 8 feet total
horizontal.
Please note minimum 1
foot between 90
o
elbows
is required.
A) 2' Min. 4' Max.
B) 3' Min. 5' Max.
C) 4' Min. 6' Max.
D) 5' Min. 7' Max.
E) 6' Min. 8' Max.
Lengths do not include elbow indicated.
Vent restrictor position A (fully open), refer to the
"Vent Restrictor Position" section.
One 90
o
elbow = Two 45
o
elbow
Option H V H + H1
With these options, maxi-
mum total pipe length is
30 feet with minimum of
8 feet total vertical and
maximum 8 feet total
horizontal.
Please note minimum 1
foot between 90
o
elbows
is required.
A) 1' Max. 1' Min. 3' Max.
B) 2' Max. 2' Min. 5' Max.
C) 3' Max. 4' Min. 6' Max.
D) 4' Max. 6' Min. 7' Max.
E) 5' Max. 8' Min. 8' Max.
Lengths do not include elbow indicated.
Vent restrictor position A (fully open), refer to the "Vent Restric-
tor Position" section.
Option V H V + V1
A) 1' Min. 4' Max. 2' Min.
B) 2' Min. 5' Max. 3' Min.
C) 3' Min. 6' Max. 4' Min.
D) 4' Min. 7' Max. 5' Min.
E) 5' Min. 8' Max. 6' Min.
Option H + H1 V
A) 2' Max. 2' Min.
B) 3' Max. 3' Min.
C) 4' Max. 4' Min.
D) 5' Max. 5' Min.
E) 6' Max. 6' Min.
