HAMPTON BAY H27 - Vertical Venting Configurations; Vertical Venting with Two 90° Elbows

Hampton
®
H27E-11 Direct Vent Freestanding Gas Stove | 25
installation
Vertical Venting with Two (2) 90
o
Elbows
Vertical Venting with Two (2) 90
o
Elbows
One 90
o
elbow = Two 45
o
elbows.

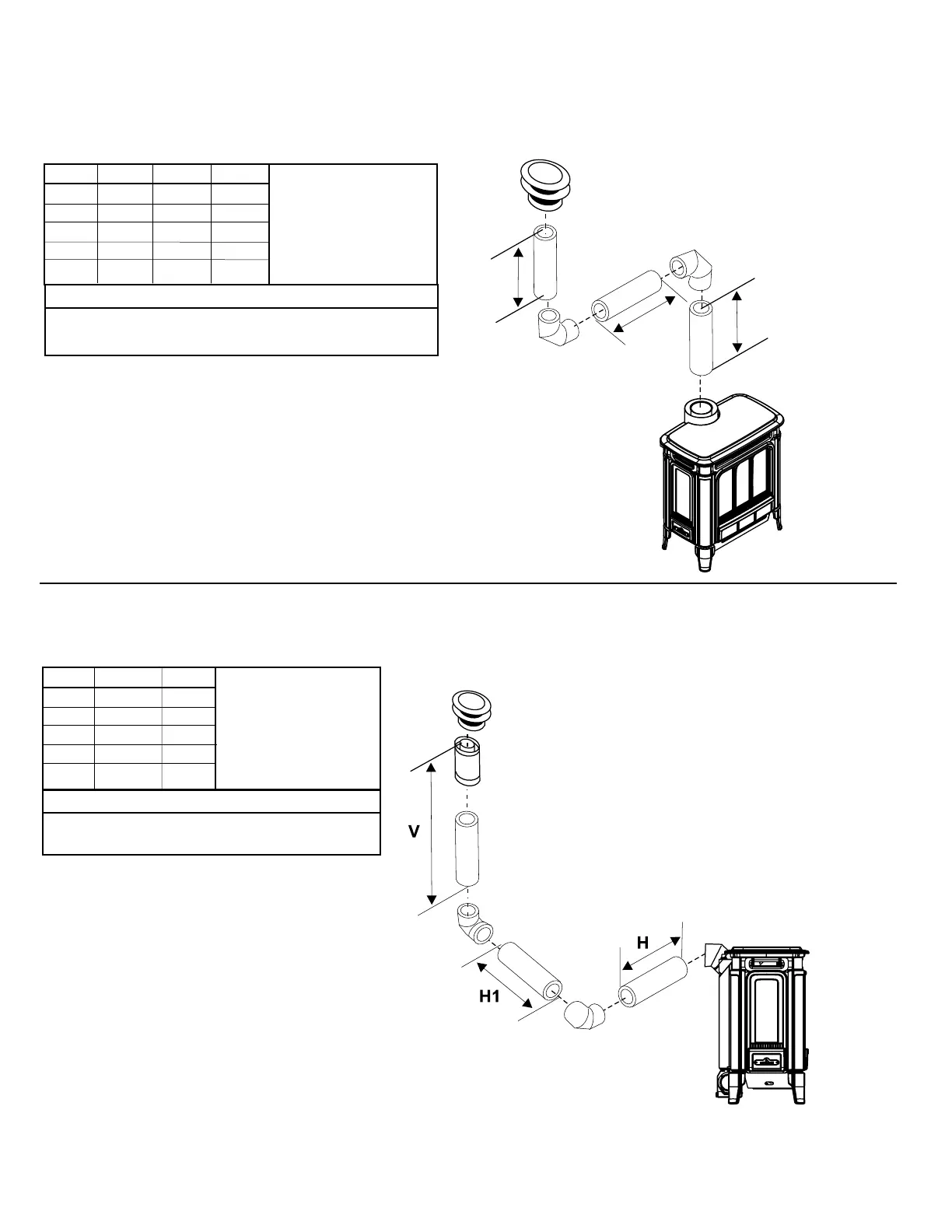

V1
V
H
Option V H V + V1
A) 1' Min. 4' Max. 2' Min.
B) 2' Min. 5' Max. 3' Min.
C) 3' Min. 6' Max. 4' Min.
D) 4' Min. 7' Max. 5' Min.
E) 5' Min. 8' Max. 6' Min.
With these options, max. total
pipe length is 30 feet with min.
of 6 feet total vertical and max.
8 feet total horizontal.
Please note min. 1 foot be-
tween 90
o
elbows is required.
Vent restrictor position A (fully open), refer to the "Vent
Restrictor Position" section.
Lengths do not include elbow indicated
Option H + H1 V
A) 2' Max. 2' Min.
B) 3' Max. 3' Min.
C) 4' Max. 4' Min.
D) 5' Max. 5' Min.
E) 6' Max. 6' Min.
With these options, max. total
pipe length is 30 feet with min.
of 6 feet total vertical and max.
6 feet total horizontal.
Please note min. 1 foot
between 90
o
elbows is
required.
One 90
o
elbow = Two 45
o
elbows.
Vent restrictor position A (fully open), refer to the "Vent
Restrictor Position" section.
Lengths do not include elbow indicated
