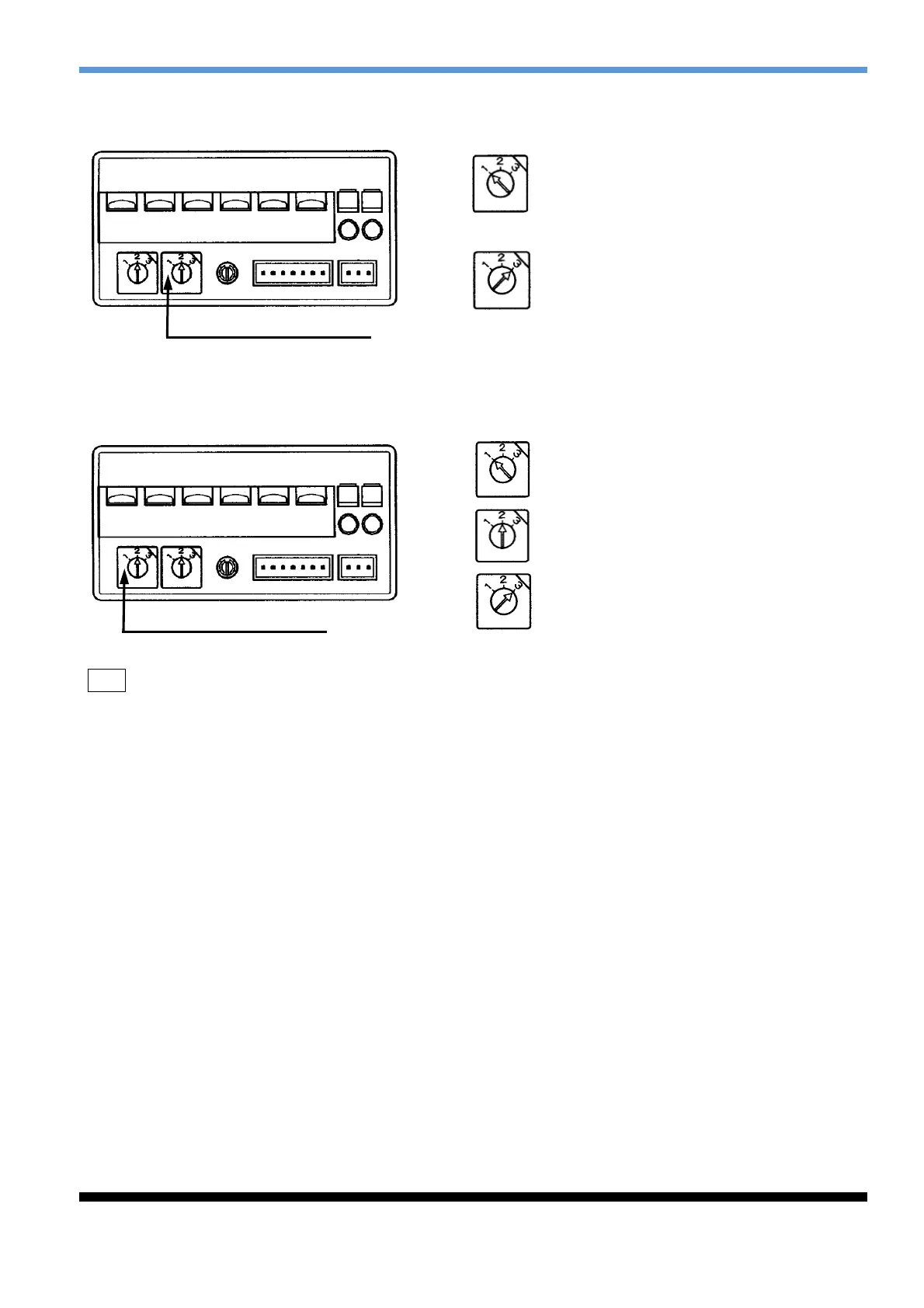

※Direction mode

Either direct or reverse action is selectable at this switch.

※Selection of a mode during signal interruption：

A mode among open/stop/close is selectable at this switch in case of signal interruption

Note：When the input signal is less than 2mA, the actuator is judged to be interrupted and transferred

to the specified state, so the control device and signal 4~20mA must be adjusted correctly.

Select switch for action mode

Select switch for off mode

1 = Direct action

Input signal 20mA → Close

Input signal 4mA → Open

3 = Reverse action

Input signal 4mA → Open

Input signal 20mA → Close

Select switch 1 = Close action

Select switch 2 = Stop action

Select switch 3 = Open action
