Length (mm) 105
Width (mm) 155
Height (mm) 50
Weight (kg) 0.25
IP protection degree (*For storage, IP 2X or higher level is
required)
IP 00(Body)
Operation Temp. (℃) +5~+40℃
Relative humidity (%) 30%~70%
Storage Temp. (℃) -25℃~+55℃
Power 24 VDC
5.7 THD installation & fix
※The THD board is provided mounted on a RS100 support. The THD board must be mounted in the
upright position on DIN rail as figure 5.2.
※The THD board must be installed with proper space away from cable tray.
※High voltages are presented on the THD board. It is suggested to install plexiglass cover.
※The link between the THD board (power supply 24Vdc) and MBC must be carried out with a
twisted wires.

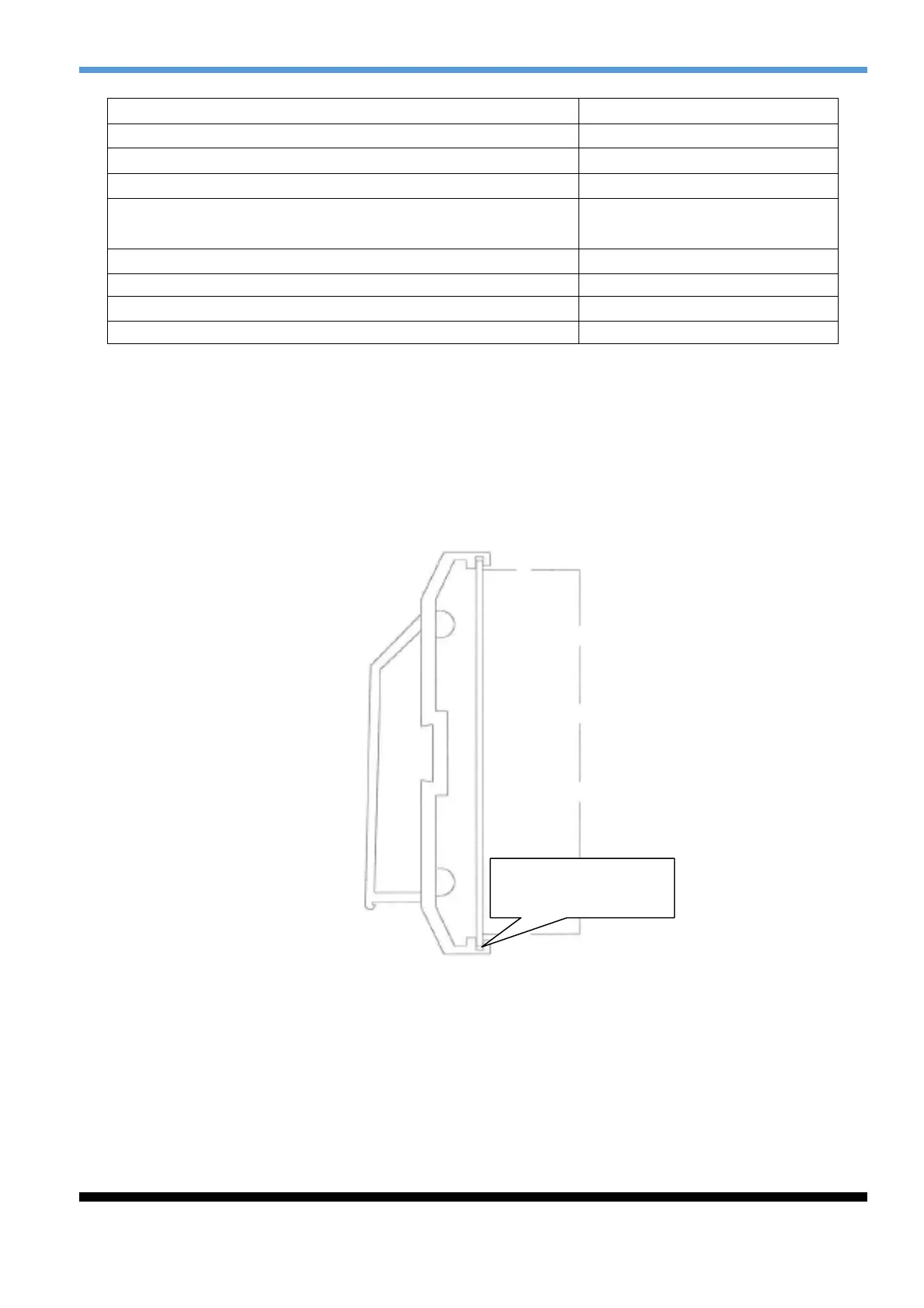

Figure 5.2 THD installation
Extrude THD board
until it is locked
