5.8 THD connector

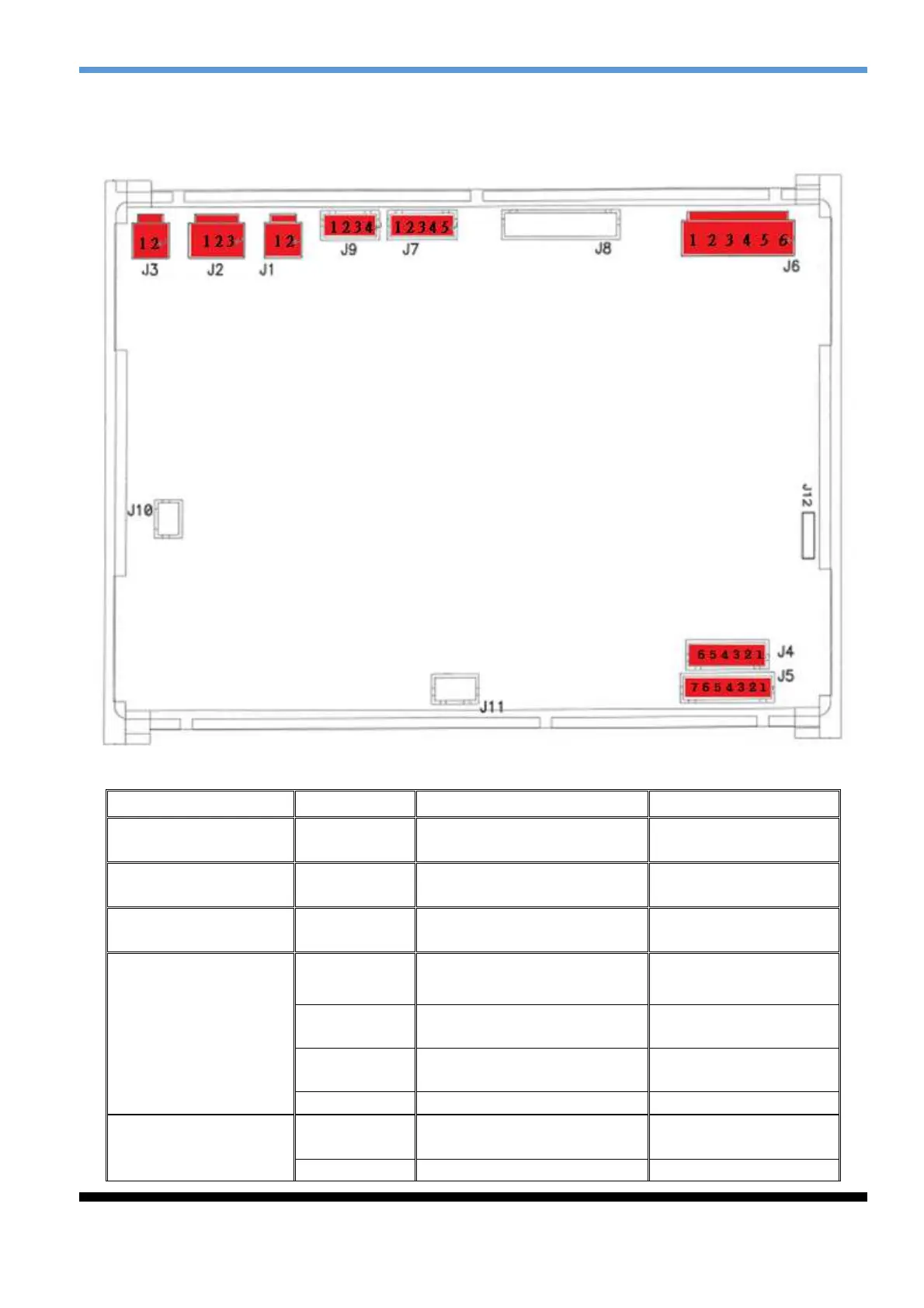

THD connection terminal numbers are shown as figure 5.3, please refer to figure 5.1：
Figure 5.3 THD outline
Terminal Pin Number Pin Name Pin Description
J1 1 W
W phase voltage of
motor
J2 1 U
U phase voltage of
motor
J3 1 V
V phase voltage of
motor
J4
J4.1 N15V
LEM(CT) -15V power
supply
J4.2 0V
LEM(CT) 0V power
supply
J4.3 P15V
LEM(CT) +15V power
supply
J4.4 U_LEM Phase U current
J5
J5.1 N15V
LEM(CT) -15V power
supply
J5.2 0V LEM(CT) 0V power
