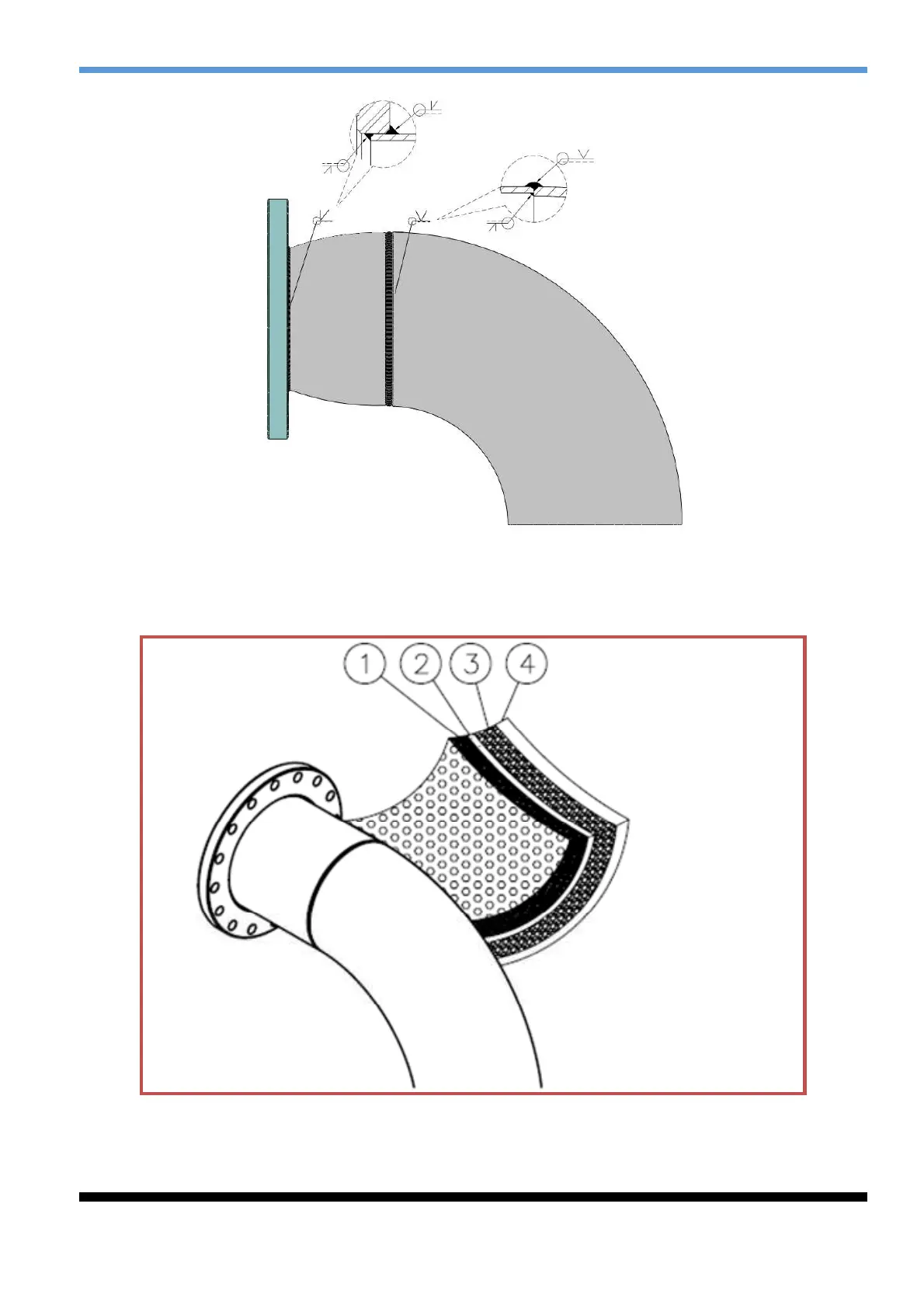

Figure 2.4 Discharge and suction piping
Note: Residue from welding might damage the compressor seriously.
1
防熱橡膠
2
鉛板層(2~3mm)
3
隔音棉
4
表層膠帶
Figure 2.5 Enclosure of piping connection
1 Heatproof rubber
2 Laminated lead
(2~3mm)
3 Acoustic foam
4
Gummed tape
