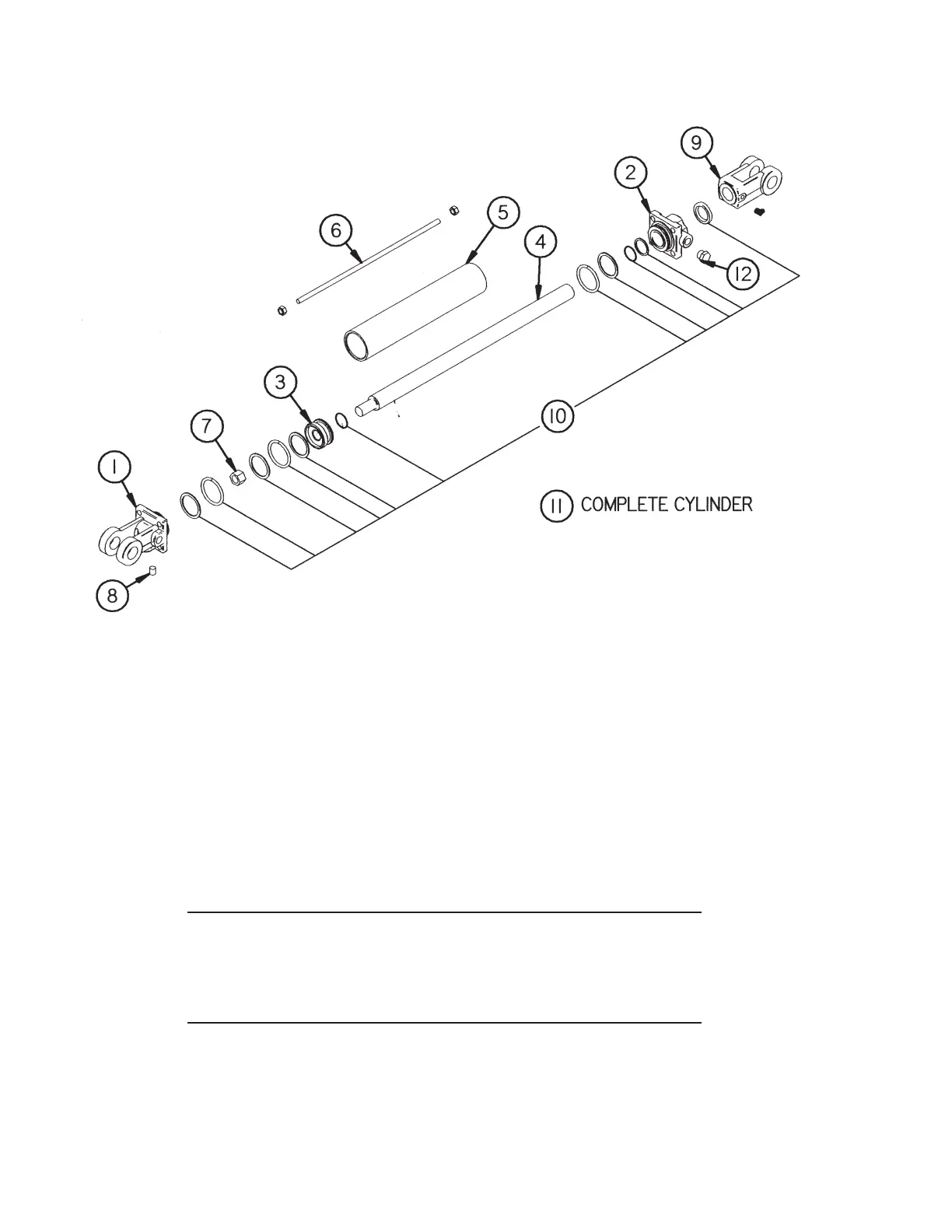

FIGURE 4
FIGURE 4
1460-1660 HI-CAPACITY RAKE
HYDRAULIC LIFT CYLINDER
ITEM PART NO. DESCRIPTION
1. 23N142A Clevis Cap
2. 23N143A Rod Cap
3. 23N144 Piston
4, 16SV168A Rod
5. 16SV169 Cylinder Tube
6. 16SV170 Tie Rod
7. 23N148 Piston Nut
8. 23N149 Plug
9. 23N150A Rod Clevis
10. 23N151 Seal Kit
11. 16SV171A Complete Cylinder (2” x 10”)
12. BFR70 Vent PLug
-26-
