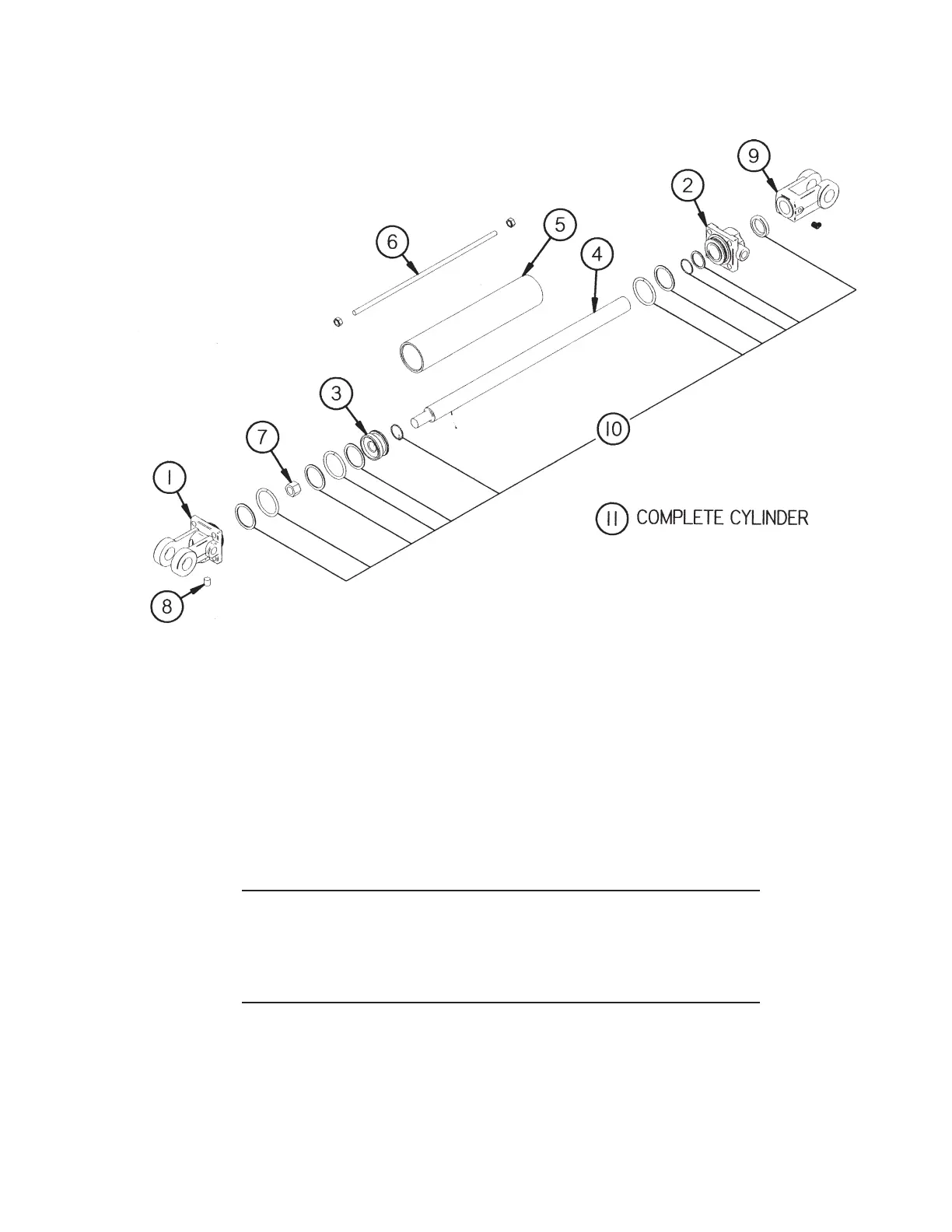

FIGURE 5
FIGURE 5
1460-1660 HI-CAPACITY RAKE
HYDRAULIC OPEN CYLINDER
ITEM PART NO. DESCRIPTION
1. 23N142A Clevis Cap
2. 23N143A Rod Cap
3. 23N144 Piston
4, BFR 654 Rod
5. BFR655 Cylinder Tube
6. BFR656 Tie Rod
7. 23N148 Piston Nut
8. 23N149 Plug
9. 23N150A Rod Clevis
10. 23N151 Seal Kit
11. BFR653 Complete Cylinder (2” x 40”)
