DOUBLE-SEAT VALVE (Type 491)
BA 049100.06 EN 29.06.2016
8.2 Disassembly of the Valve inset/Seat sealings
The disassembly of the valve inset for exchanging the seals in the product chamber is
described in this chapter.
09 10

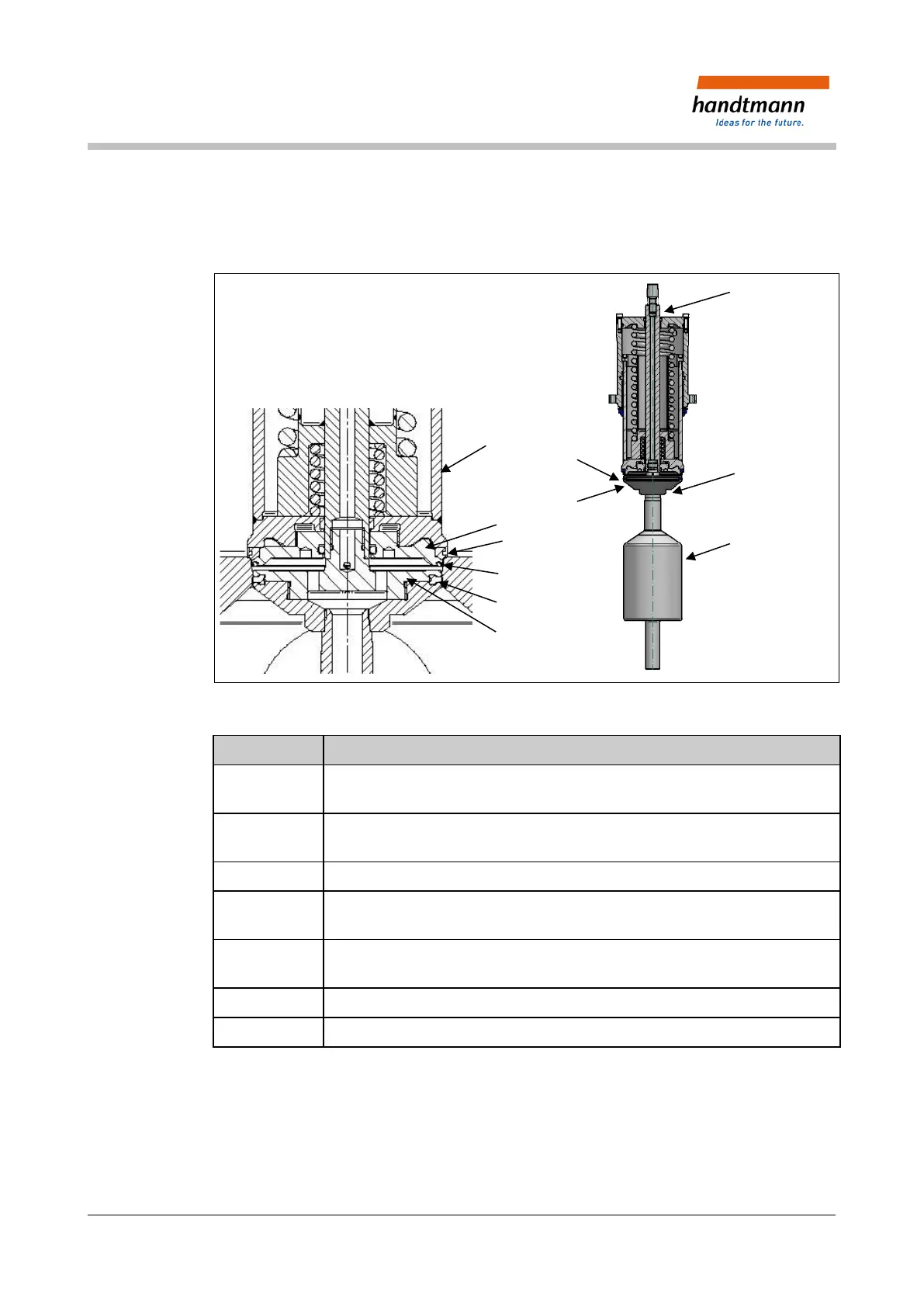

Fig. 8: Representation of the valve inset
Serial No. Type of activity
1 Unscrew the lower piston [1]. Hold screwing key area 2 against screwing key
area 3 for this.
2 Insert the lower piston [1] in the locking collar and unscrew the lower valve disk
[4] with a pin type face wrench.
3 Remove form seal [5].
4 Check the bore holes for the leakage chamber rinsing for dirt and clean if
necessary.
5 Insert the lower piston [6] in the locking collar and unscrew the upper valve disk
[7] with a pin type face wrench.
6 Remove form seal [8].
7 Remove the O-ring in the leakage chamber [9].
3
1
4
5
2
8
6
7
9
5
4
