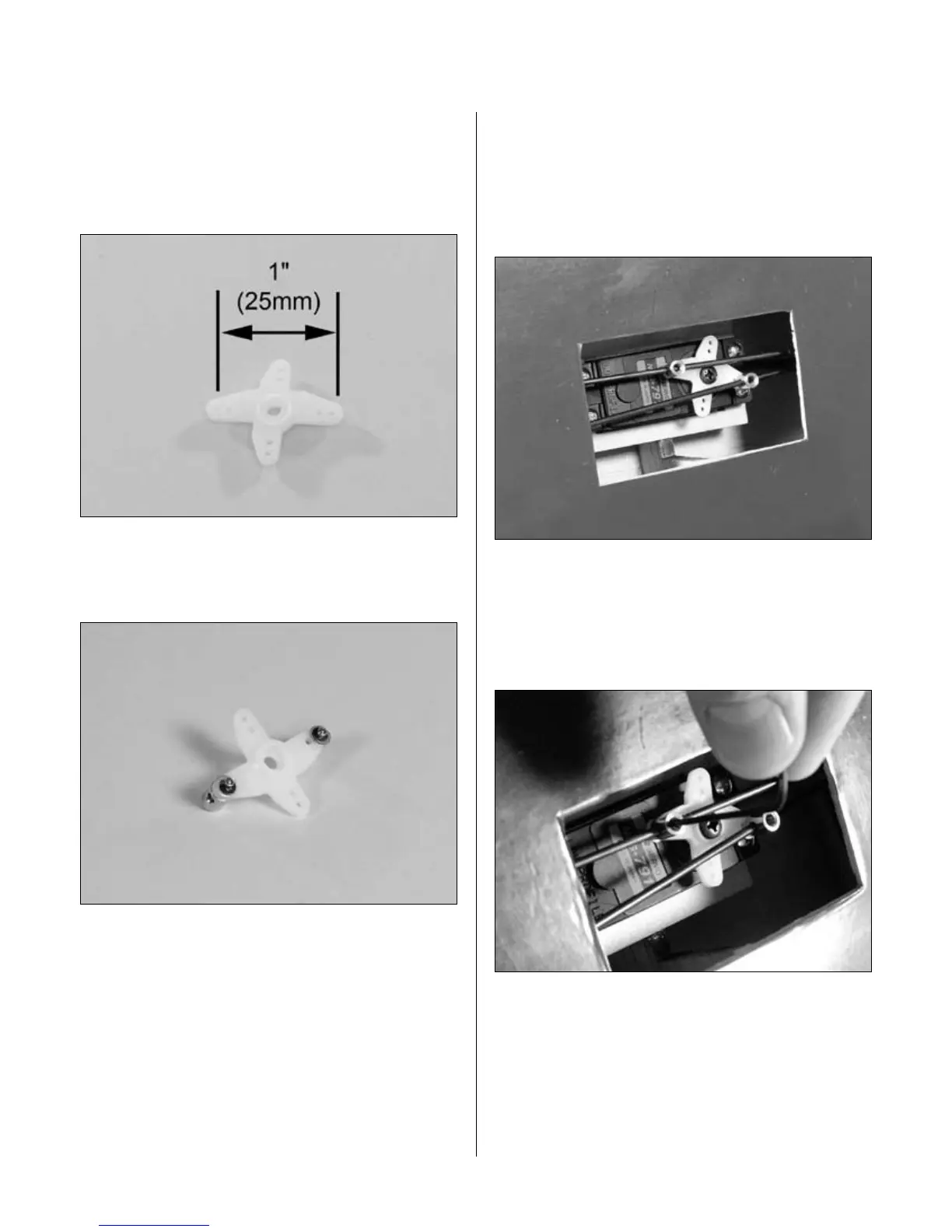

Step 4
Select a servo arm from those included with your
servo that has a distance of 1" (25mm) between
equally spaced holes as shown. Use a 5/64" (2mm)
drill bit to drill the appropriate holes in the arm.
Step 5
Attach two quick connectors to the servo arm
using quick connector washers and retainers.
Step 6
Connect the retract servo to your radio system
and electronically move the servo to the
retracted position. Slide the retract control wires
through the quick connectors as shown and
secure the servo arm to the retract servo.
Step 7
With the retract servo in the up position, use
the linkage to manually retract the landing gear.
Install a 3mm setscrew into the quick connectors
and tighten them to secure the linkage.
