HANKISON PR500 User Manual

5
1
22
45
MIN.
1
7
15
SEC..
manual
overide
POWER
ON
ELECTRIC DRAIN
(Optional with Three Light Control Panel)
ISOLATION VALVE
RESERVOIR WITH
INTERNAL
STRAINER
TIMER
MANUAL DRAIN
TUBE
SET TIME VALVE OPENS
SET TIME BETWEEN
OPERATIONS
(VALVE CLOSED)
VALVE
ENERGIZED
LIGHT
TIMER ENERGIZED
LIGHT
DRAIN TEST BUTTON

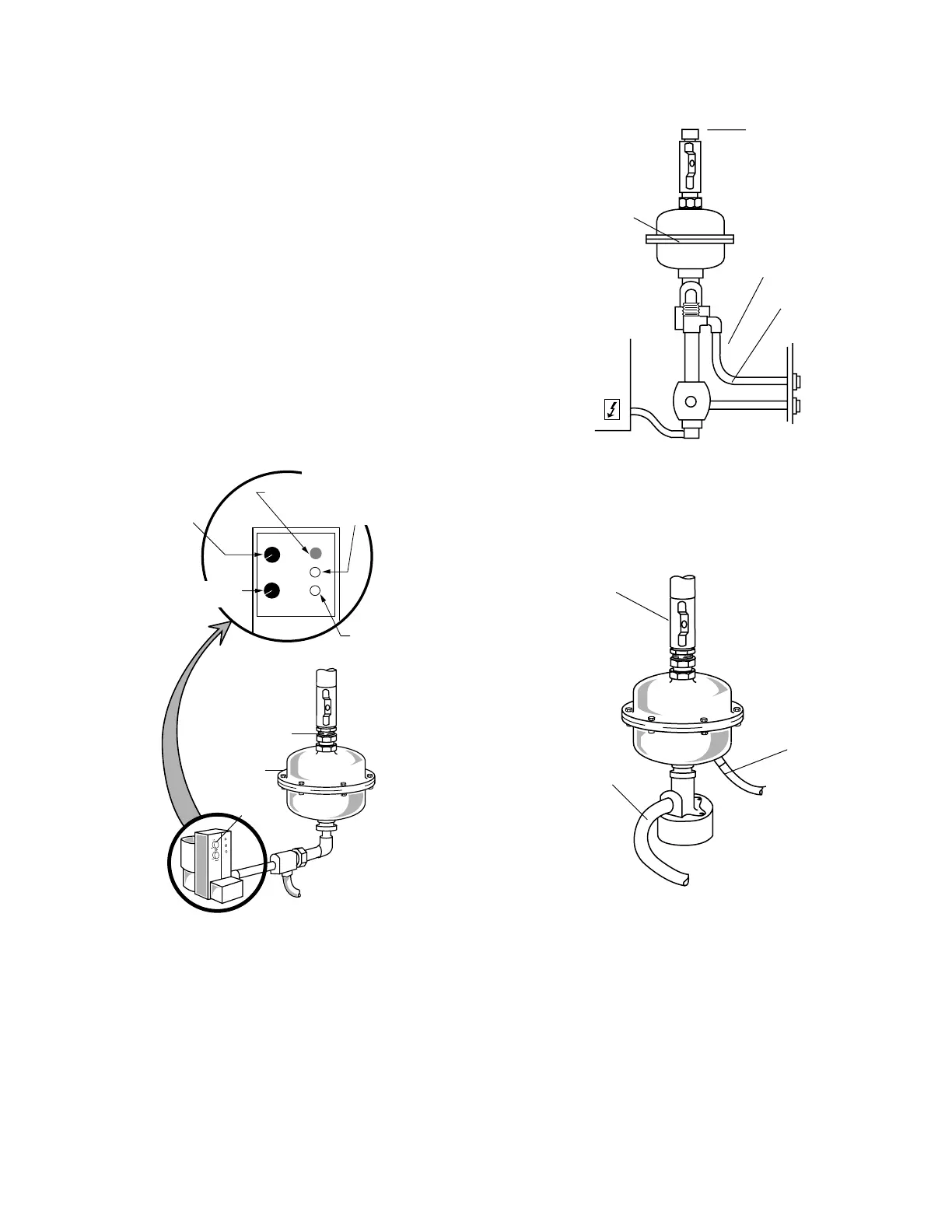

1.5 Automatic condensate drains
A. Models with electric drains
1. Verify that isolation valves are open.
2. Verify time settings.
After dryer is operating, verify that valve remains open
long for all condensate to be ejected from the system.
If all condensate is not ejected during valve open time,
shorten time between operations.
a. MODELS WITH STANDARD CONTROL PANEL AND
ELECTRIC DRAIN - Drain timers (2) are factory set
for 5 minutes between operations (valve closed)
and 5 seconds valve open time
b. MODELS WITH DIGITAL CONTROL PANEL - TIME
BETWEEN OPERATIONS (valve closed) is factory set
for 2.5 minutes, valve open time is not adjustable.
See instructions under 2.3 to adjust time.
B. Models with mechanical drains
1. Verify that isolation valves are open.
MECHANICAL DRAIN
ISOLATION
VALVE
MANUAL DRAIN
AUTOMATIC
DISCHARGE
MANUAL DRAIN
AUTOMATIC DRAIN
ISOLATION VALVE
SOLENOID VALVE
RESERVOIR WITH
INTERNAL STRAINER
ELECTRIC DRAIN
(Supplied with digital control panel)
