Hansa C5 - Belt replacement

Hansa C5 O&M Manual - OM-025 Revision A 13/02/2020
© Hansa Chippers 2020
17
Using two 16 mm spanners, tighten the two clamping
nuts back up near the bottom of the chipper. Recheck
belt tension.
Belt replacement

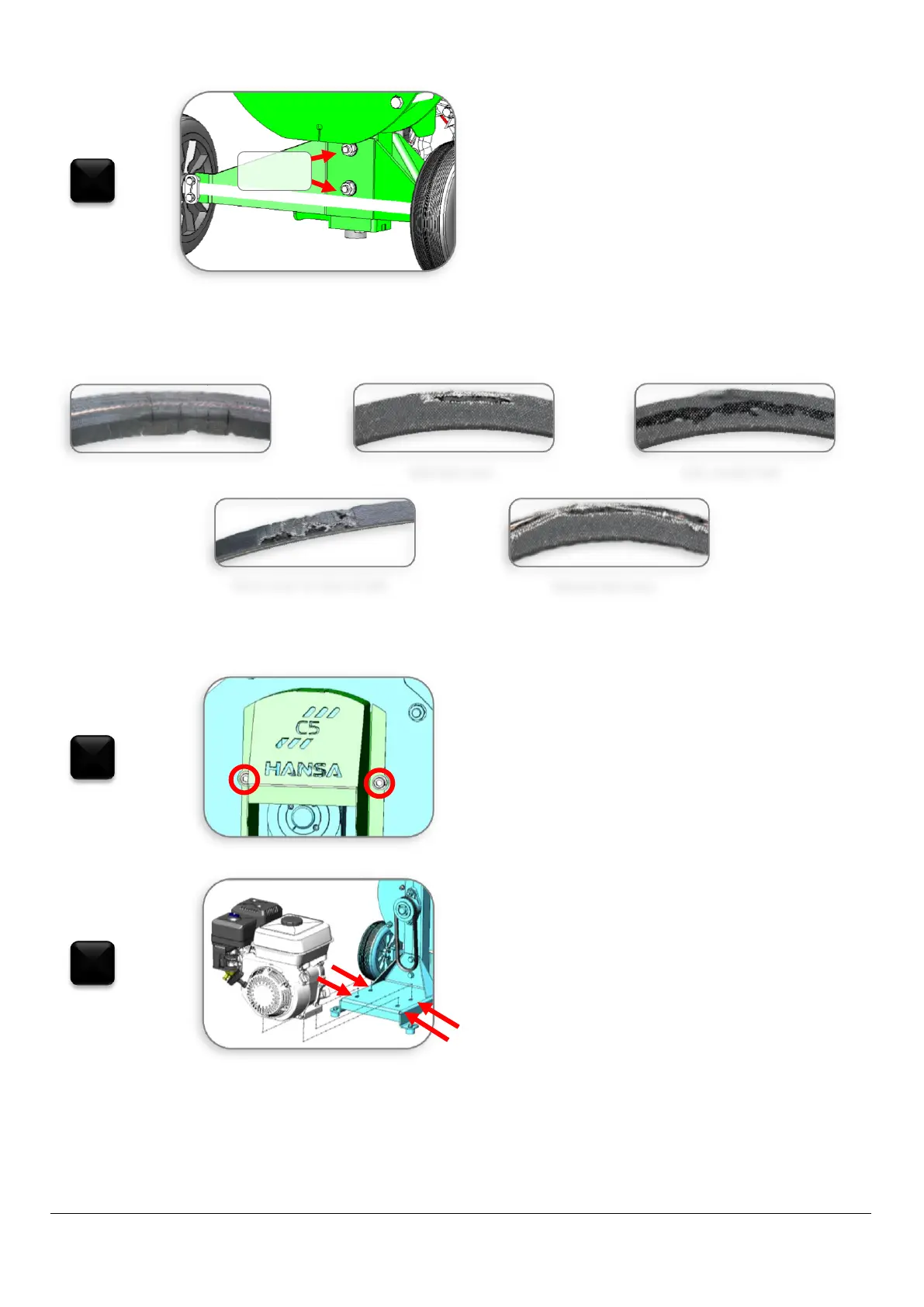

If the belts in your chipper look similar to any of the following images or are clearly broken, then they need to be replaced.
If a belt change is necessary, follow these steps
Using a 6 mm Allen key, undo the two cap screws from
the belt guard and then remove the belt guard.
Note: Engine not shown in this view
Using two 13 mm spanners, unbolt and remove the
engine (4 x M8 nuts). Replace the belt (A21 vee belt).
3
1
2
Soft, swollen belt
Cracked underside of belt
Sidewall belt wear
Worn cover on back of belt
Split belt cover
Clamping
nuts
