Hansa C5 - Bolt torque

Hansa C5 O&M Manual - OM-025 Revision A 13/02/2020
© Hansa Chippers 2020
18

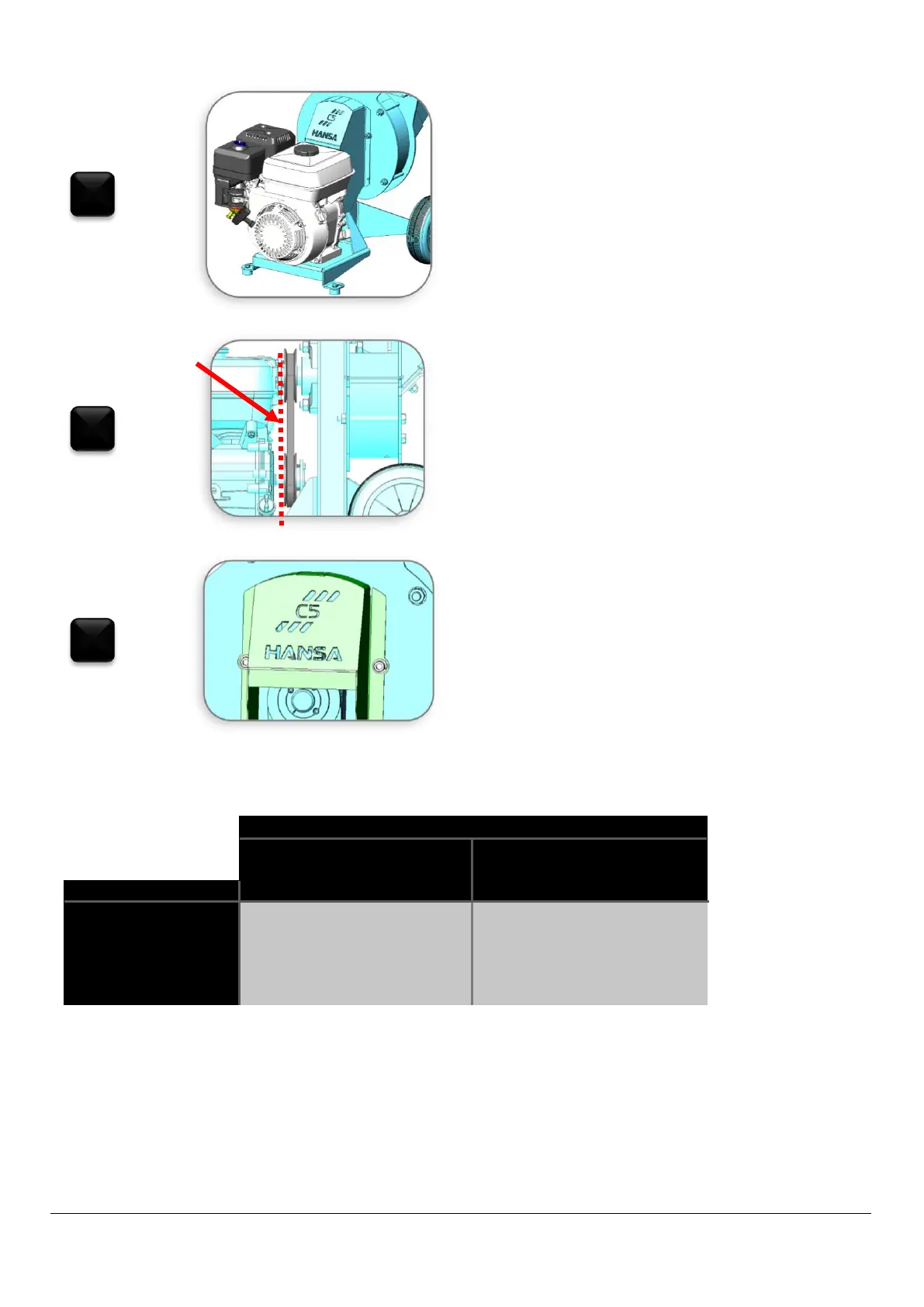

Replace the engine back in place and ensure the pulleys
are in line
Fully tighten the four bolts holding the engine to the
chassis. Check the pulleys are still in line by placing a
straight-edge across the top and bottom front pulley. If
they are not in line, loosen the four bolts holding the
engine in place and repeat this step
Ensure the belts are properly tensioned (follow the
‘adjusting belt tension’ procedure on page 16). Fasten
the pulley guard back into place.
Note: Engine not shown in this view
Bolt torque
Relative Strength Bolt Marking
4.6
8.8
Recommended Tightening Torque
Recommended Tightening Torque
Bolt size
Spanner size
lb ft
Nm
lb ft
Nm
M8
13 mm
6
8.5
16
22
M10
16 mm
12.5
17
32
44
M12
18 mm
22
30
57
77
M16
24 mm
54
73
140
190
M20
30 mm
105
143
274
372
3
4
5
