Hansa C7 - Wheel Attachment Procedures; Attaching wheels to axles; Securing wheels with fasteners; Outlet Chute Installation

Hansa C7eu O&M Manual - OM-019 revision B 03/09/2018
© Hansa Chippers 2018
4

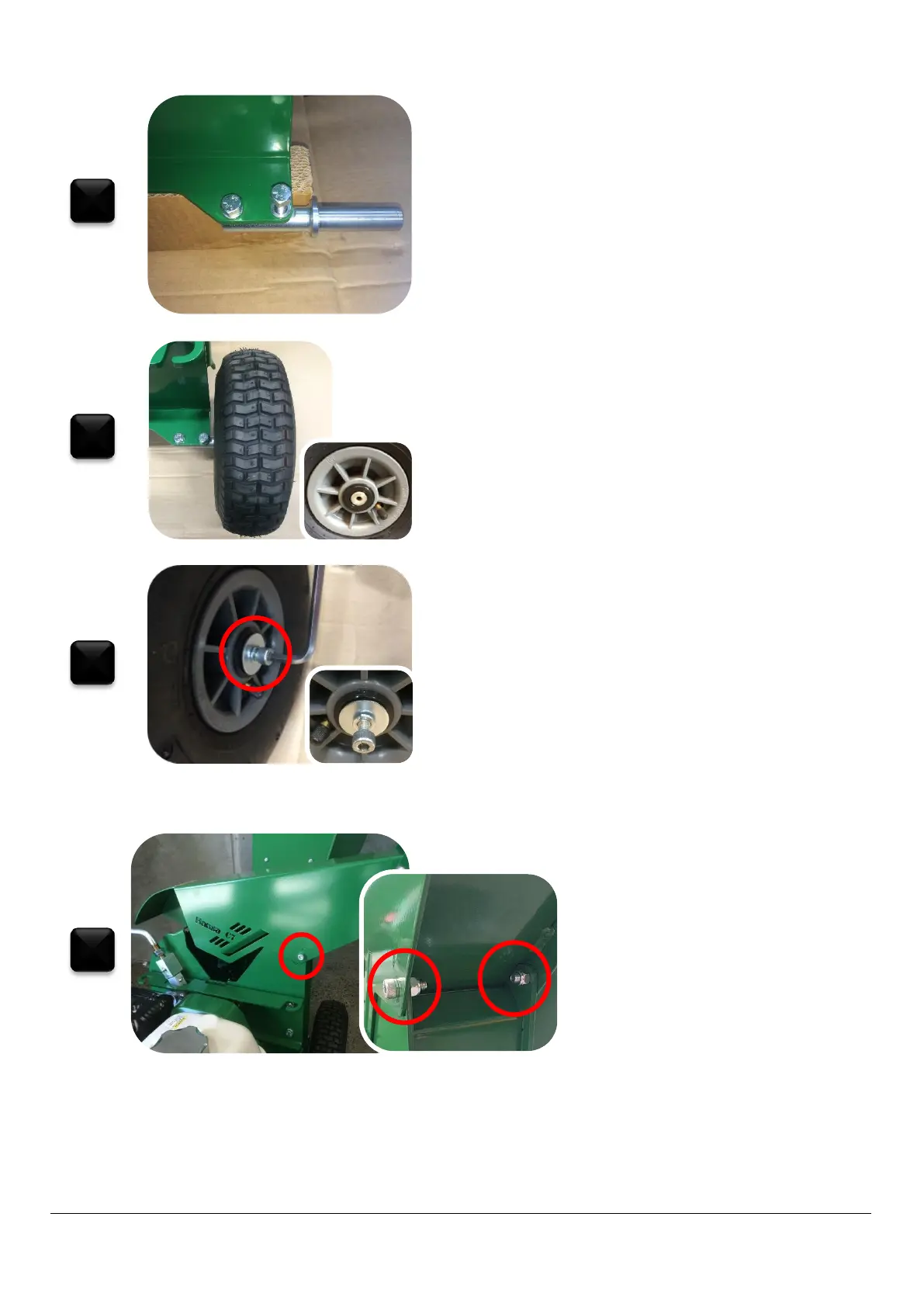

Untighten the screws of the axles, move the axles out and re-
tighten the bolts.
Slide the wheels onto the axles. Ensure valve is facing outwards.
Using a 6 mm Allen key, fasten the wheels to the chipper body.
Use the small spring washers (item no. 2), cap screws (item no. 6),
and big washers (item no. 5) to do so. Ensure the big washer is
touching the wheel followed by the smaller spring washers, then
the bolt head.
Fit the outlet chute
Slide the outlet chute over the black
cutting rotor onto the body; the open side
of the chute is facing the engagement
handle. Fix the outlet chute to the
chipper body by tightening the cap screws
(item no. 6) and nyloc nuts (item no. 7)
using a 6 mm Allen key and 13 mm
spanner.
