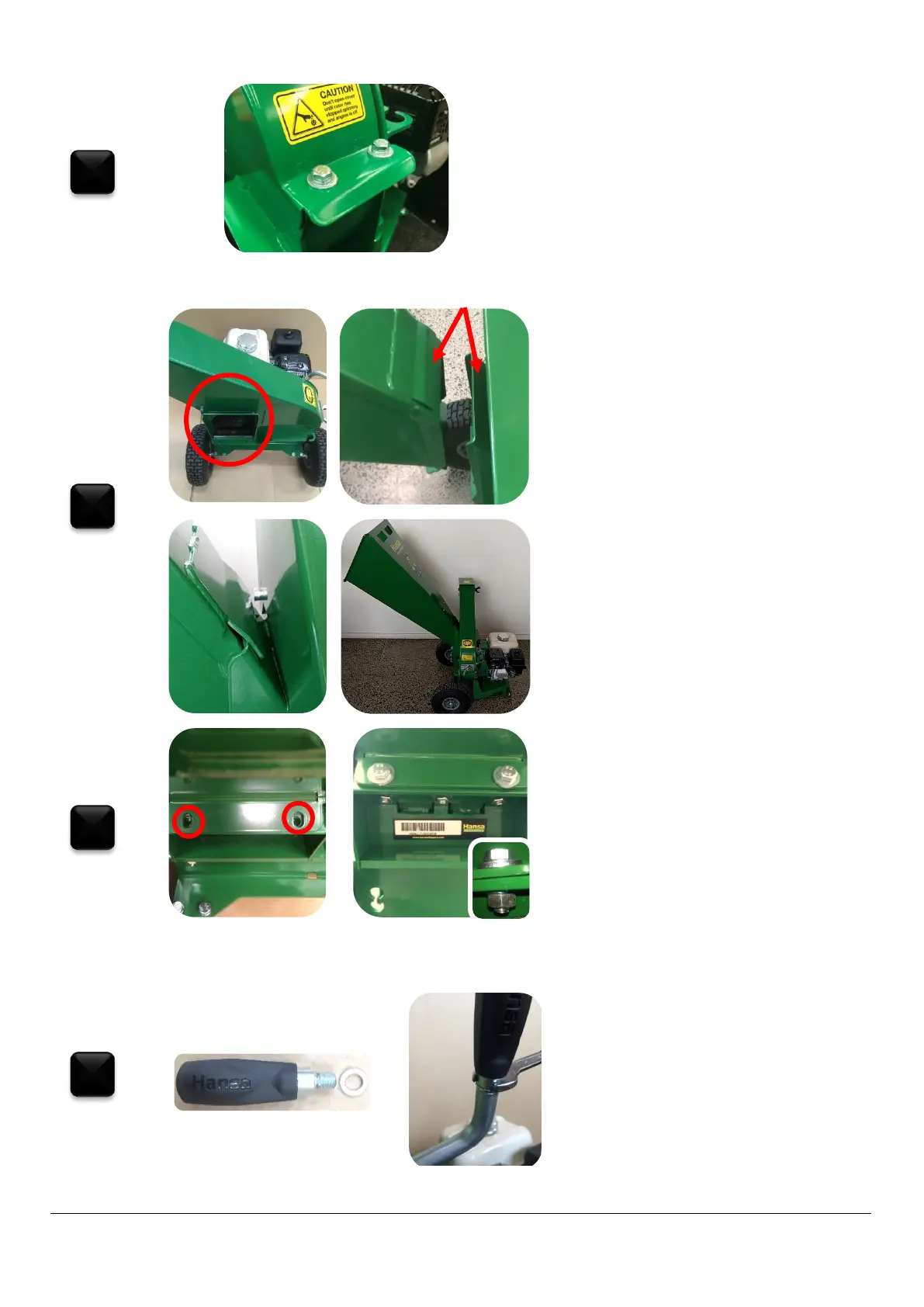

Fix the other side of the outlet to the
chipper body by inserting two heavy
washers, two spring washers, and two 16
mm m8 bolts (item no. 8) into the
threaded holes on the chipper body.
Ensure the spring washer sits between the
bolt head and heavy washer. Use a 13 mm
spanner to ensure these are fully
tightened.
Fix the inlet chute - check that it slides in
on the top, and at the bottom. If the holes
don’t fit to tighten the screws, the best
option is to take the chute out and re-
insert it.
Line up the holes and insert the bolts,
washers and nuts (item no. 4), ensuring
the big washer is touching the bolt head
(top) and the spring washer is touching
the nut (bottom).
Attach the swivel handle (item no. 3) to
the engagement handle using a 14mm
spanner. Ensure the spring washer (item
no. 1) is placed on the thread of the
engagement handle before tightening it.
