Assembly
Assemble the chipper body
Place the cardboard block underneath the chipper body - this
makes it easier to attach the wheels.
Item no.

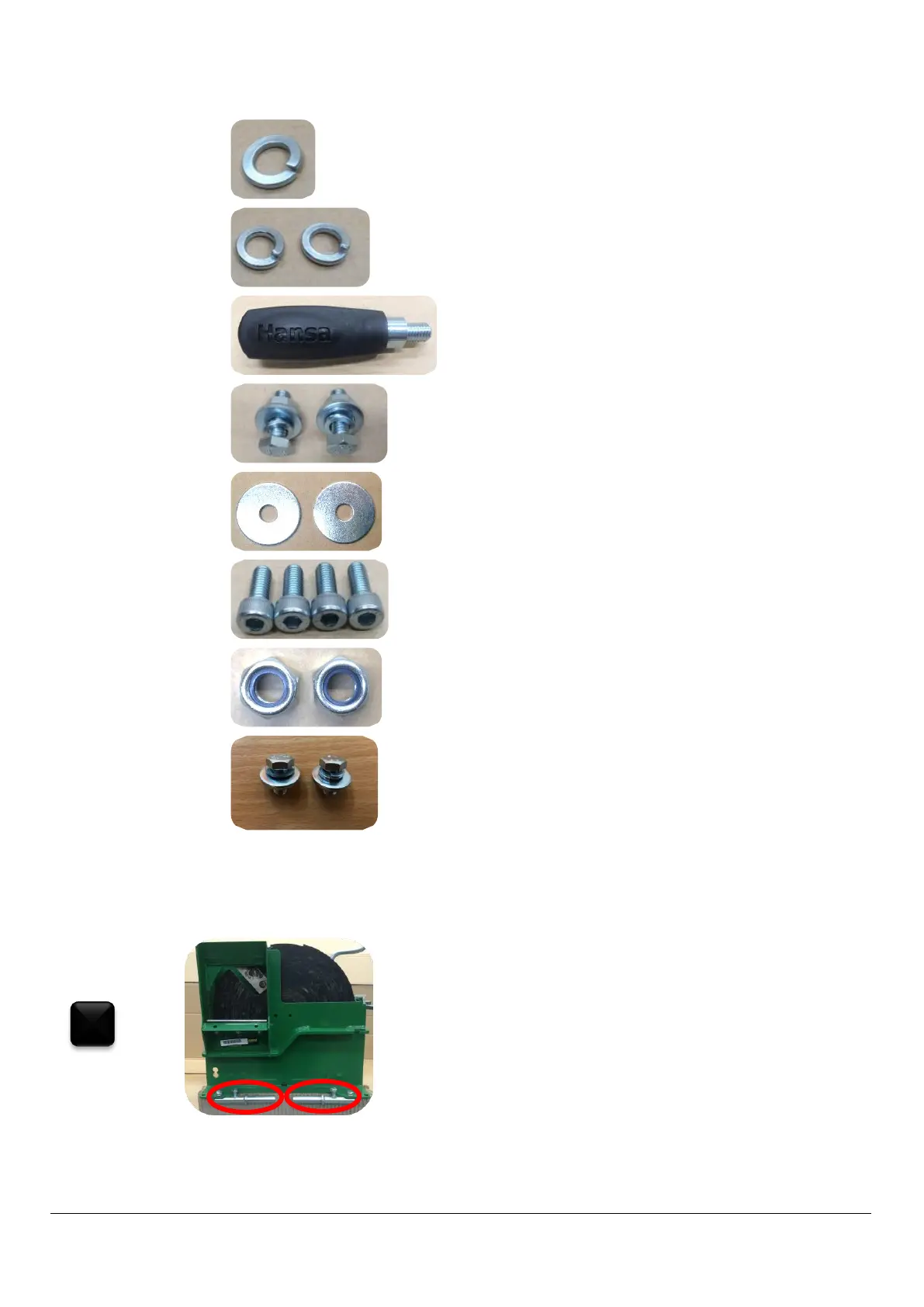

Fastener pack contents (in box 2)
1
One big spring washer for swivel handle
2
Two small spring washers for wheels
3
One swivel handle
4
Two bolts, spring washers, heavy washers, and nuts used to fix
the inlet chute to the chipper body
5
Two washers to fix wheels onto the axle
6
Four cap screws to attach the wheels and outlet chute to the
chipper body
7
Two nyloc nuts to fix screws on outlet chute
8
Two bolts, spring washers, and heavy washers, used to fix the
outlet chute to the chipper body
