UART decode settings: Source: CH1; Baud: 19200; Idle: High; Parity: No; Data Bit: 8; When: “Start”.

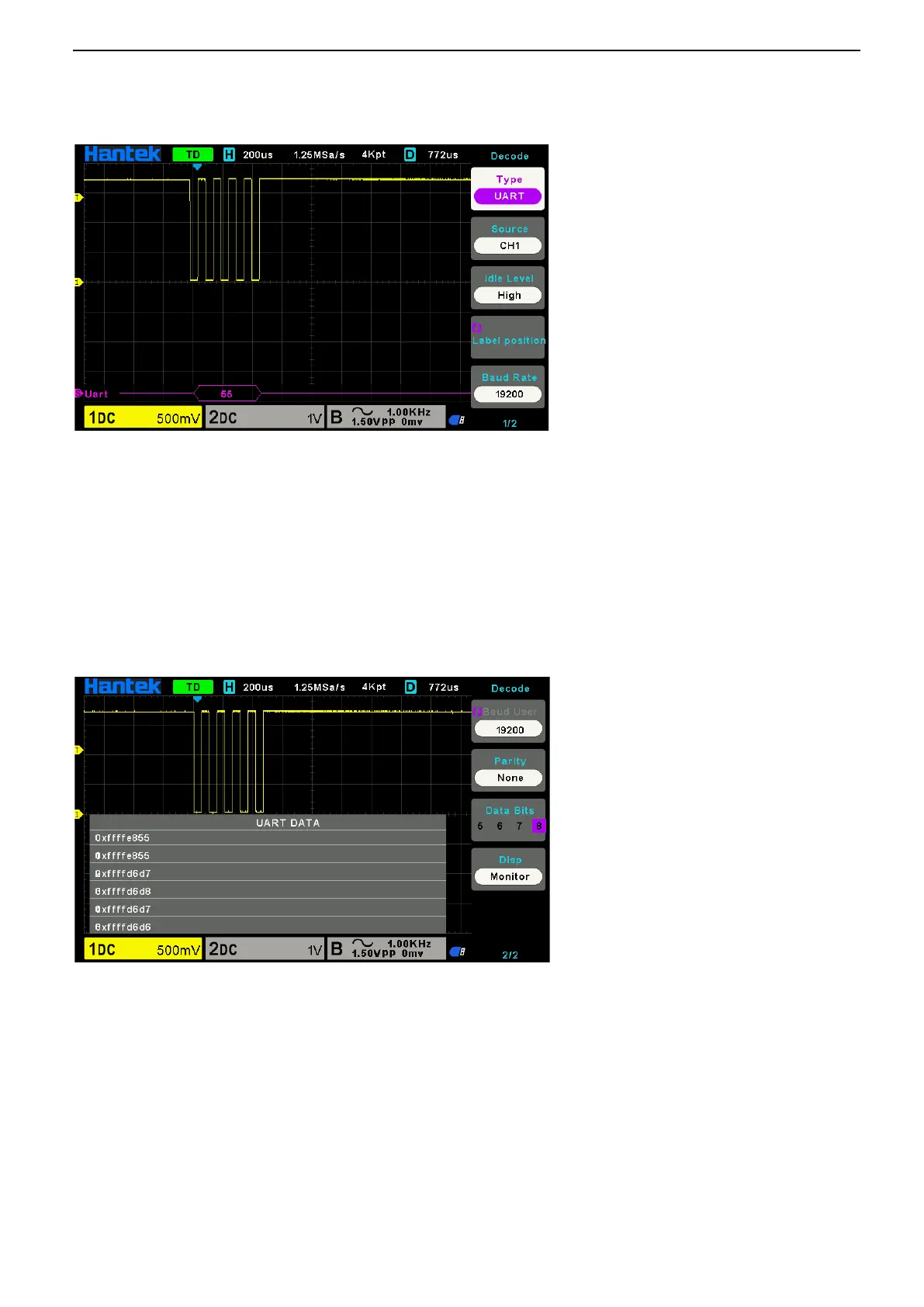

The trigger result is shown below:

UART Decode interpretation:

1. The decode data is displayed in hexadecimal;

2. The decoded data is at the bottom of the waveform interface by default, and displayed in purple;

3. When there are "?" or "adjust the time base", you need to adjust the time base to see the

decoding results.

UART text interface is shown as below:

2.8.2. LIN Decode

LIN decode settings: Source: CH1; Baud: 19200; Idle: High; When: Identifier; Identifier: 0X15; And set

the trigger level.

The trigger result is shown below:
