values of at most 4 measurement items that are turned on last.
1. Press the [Meas] button on the front panel to enter the Measure function menu.
2. Press the Statistics softkey to select ON.

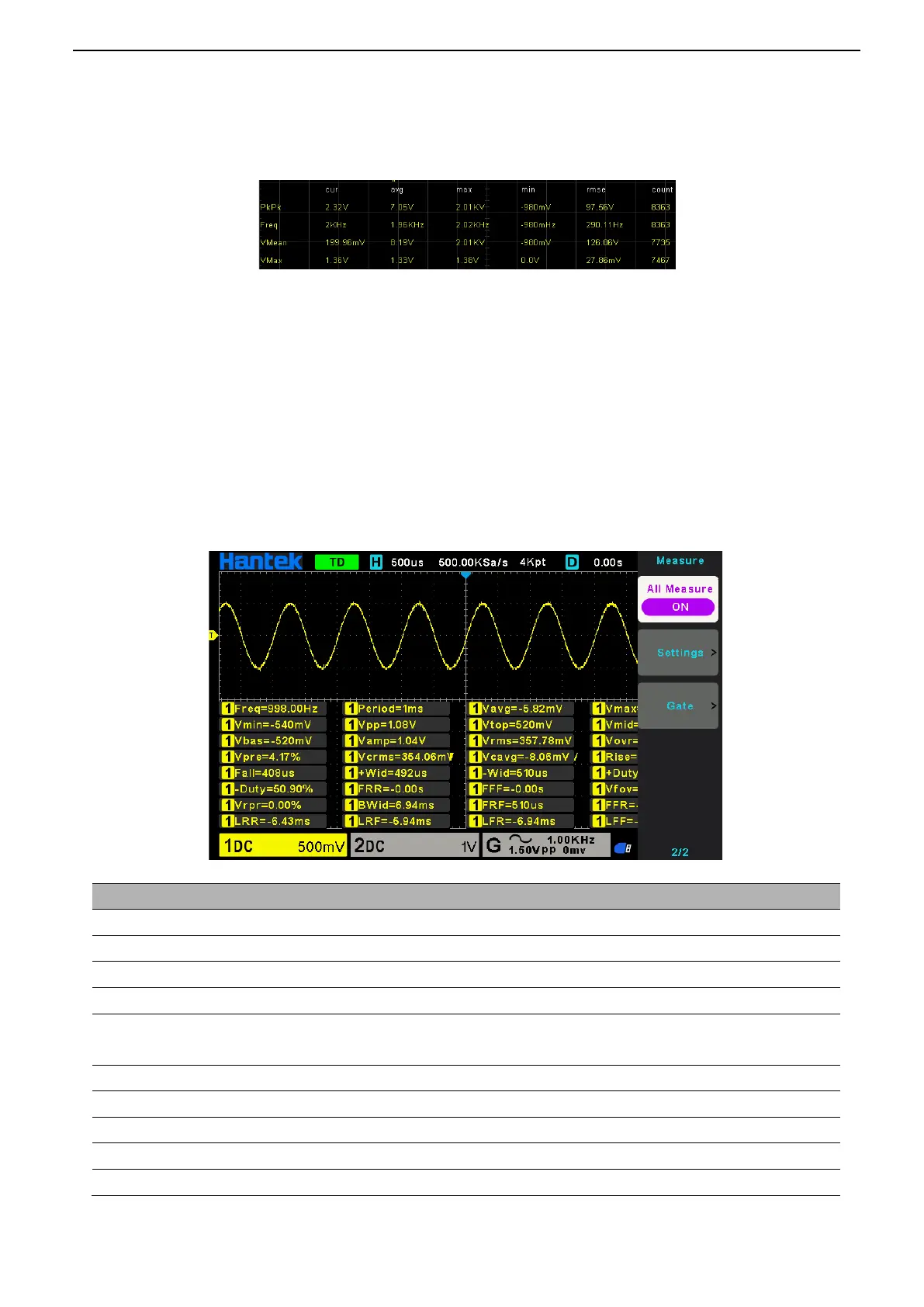

To Make All Measurement
All measurement could measure all parameters of the current measurement source and display the
results on the screen.
Do the following steps to make all parameters measurement.
1. Press the [Meas] button on the front panel to enter the MEASURE function menu.
2. Press the All Measure softkey to select ON.
3. Press the Source softkey to select the measure source (CH1~CH2).
The reciprocal of the period.
The time between two consecutive threshold points of the same polarity edge.
The arithmetic mean of the entire waveform or selected area.
The voltage value from the peak to the lowest point of the waveform.
That is a valid value. According to the energy converted by the AC signal in one cycle, the DC
voltage corresponding to the equivalent energy is the root mean square value.
The root mean square value of the signal within 1 cycle.
The most negative peak voltage measured over the entire waveform.
The most positive peak voltage measured over the entire waveform.
Measure the time between 10% and 90% of the first rising edge of the waveform.
Measure the time between 90% and 10% of the first falling edge of the waveform.
