Hantek DSO2C10 User Manual

4 / 72
Safety Terms and Symbols
Terms on the product. The following terms may appear on the product:
Danger It represents that harms may be caused to you at once if you perform the operation.
Warning It represents that latent harms may be caused to you if you perform the operation.
Notice It represents the damage possibly caused to the product or other properties if you perform the operation.

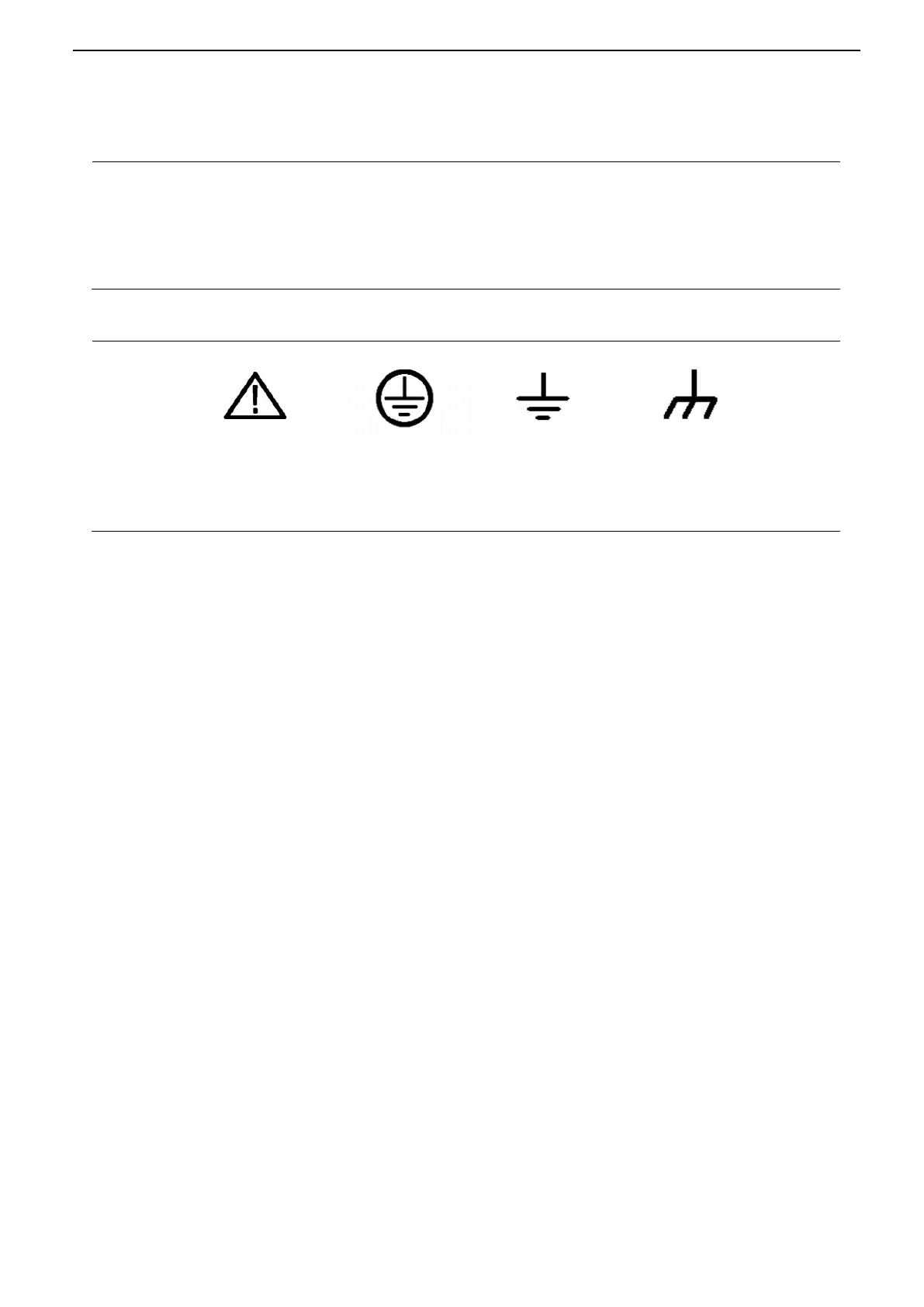

Characters on the product. The following characters may appear on the product:
Product Scrapping
Device Recycling
We need extract and utilize natural resources to produce this device. If you do not reclaim the device in
a proper way, some substances it contains may become harmful or poisonous to environments or
human bodies. To avoid them being released outside and to minimize the waste of natural resources,
we suggest you reasonably call back this device to ensure proper recovery and recycling of most
materials within it.
Notice
Protective
Test ground
Shell ground terminal

Hantek DSO2C10 Specifications

General

Bandwidth	100 MHz
Channels	2
Sample Rate	1 GSa/s
Memory Depth	8 Mpts
Trigger Types	Edge, Pulse, Video, Slope, Alternative
Display Resolution	800 x 480 pixels
FFT	Yes
Math Functions	+, -, *, /, FFT
Power Supply	100-240 V AC, 50/60 Hz
Display	7 inch LCD
Vertical Resolution	8-bit
Interface	USB host, USB device
Input Impedance	1 MΩ ± 2%
Waveform Capture Rate	50, 000 wfm/s
