2.8.4. SPI Decode
SPI decode settings：SCL: CH2; SDA: CH1; Slope: Rising; Data Width: 8; Overtime: 8.37us.

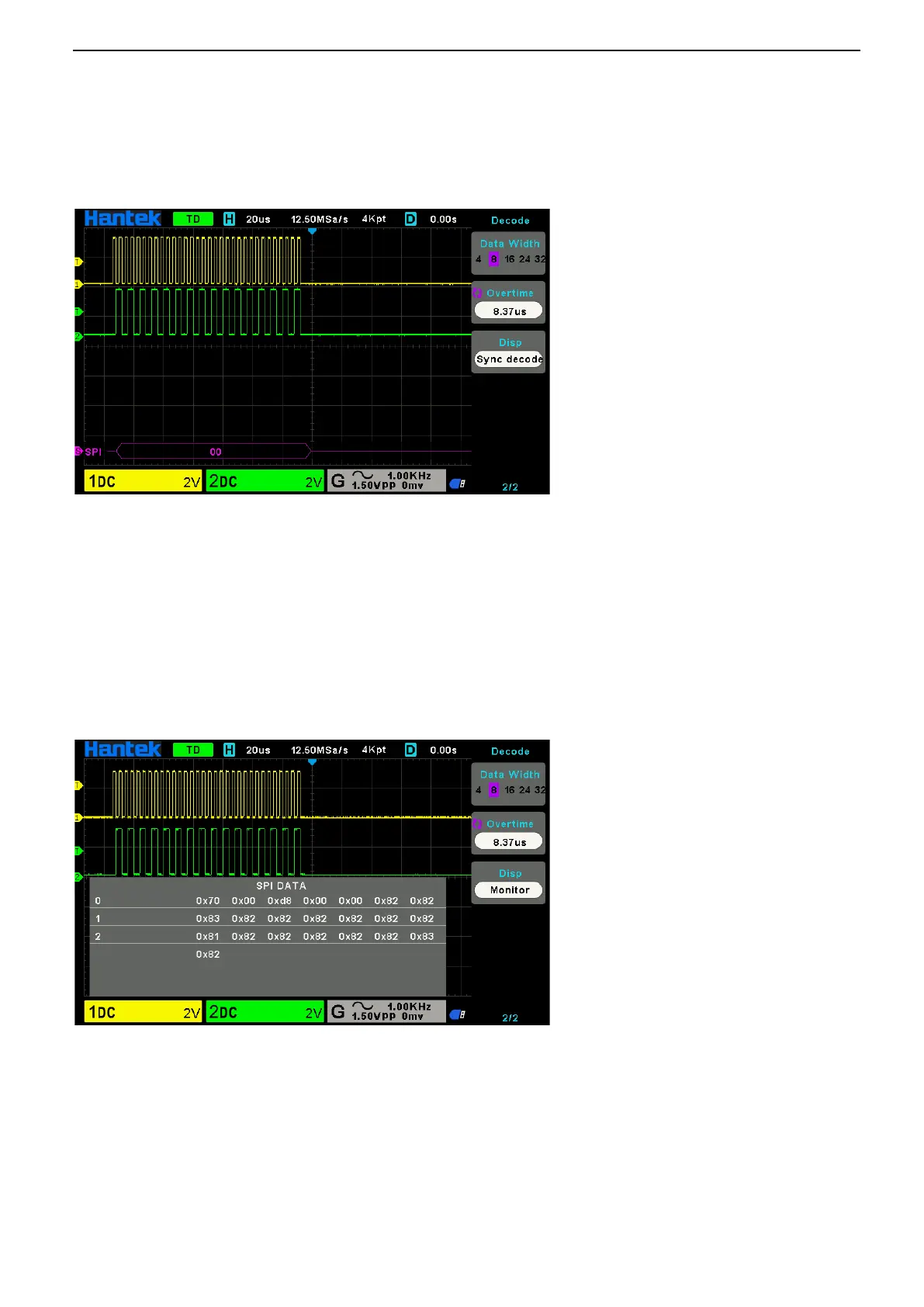

The trigger result is shown below:
SPI Decode interpretation:
1. The decode data is displayed in hexadecimal;
2. The decoded data is at the bottom of the waveform interface. The color of “Data” is displayed purple;
3. When there are "?" or "adjust the time base", you need to adjust the time base to see the decoding
results.
SPI text interface is shown as below:
2.8.5. IIC Decode
IIC decode settings: SCL: CH1; SDA: CH2; When: Start Bit. The trigger result is shown below:
