Hantek DSO2C10 User Manual

9 / 72
digital oscilloscope so that you can get familiar with this series of digital oscilloscope well within the
shortest time.

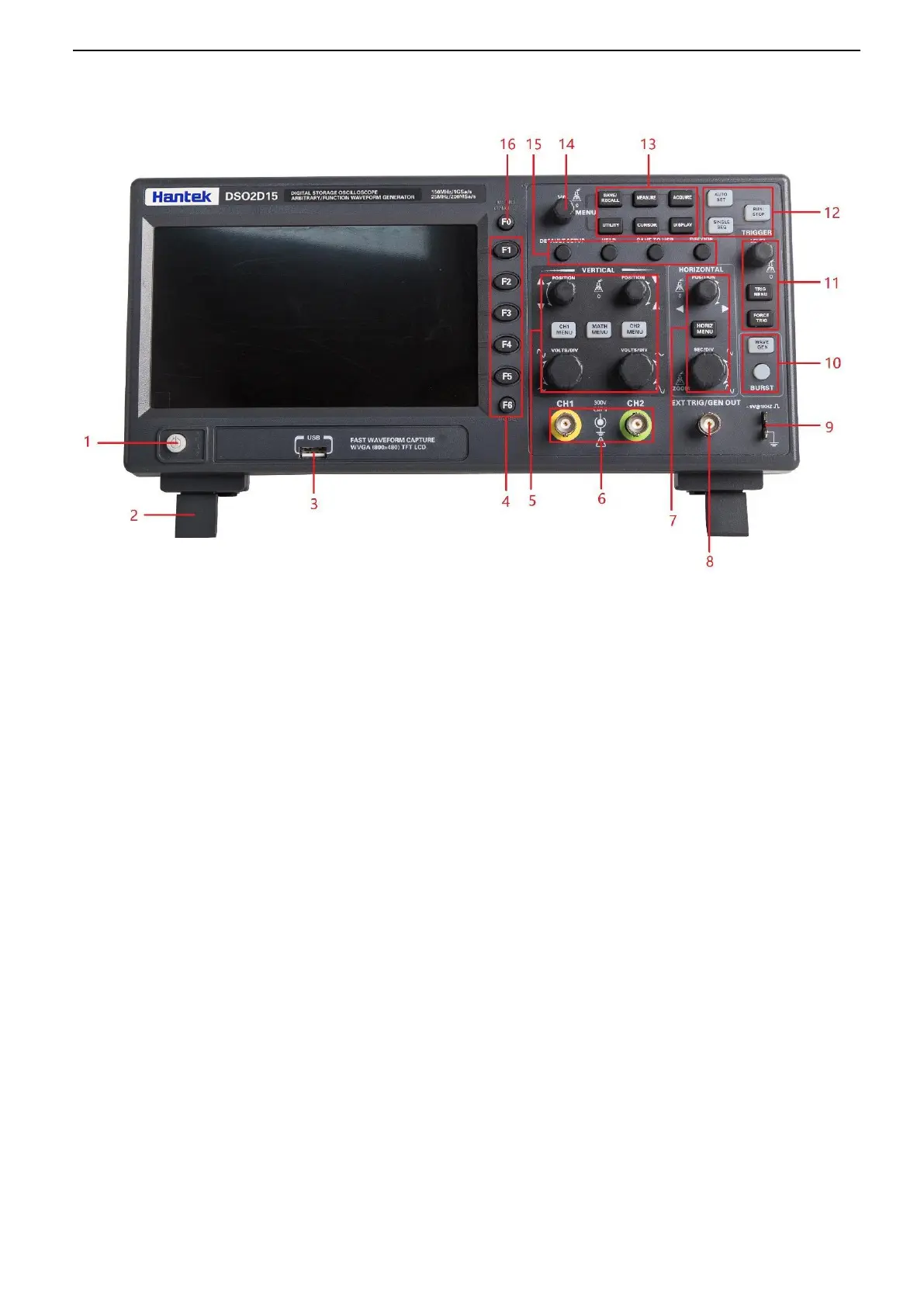

1. Power button
2. Bracket
3. USB interface
4. Menu selection key
5. Vertical control system
6. CH1、CH2 Input Channel for signal
7. Horizontal control system
8. Signal source output (only valid for model with function generator) /external trigger input channel
9. Probe compensation function zone
10. Signal source (only valid for model with function generator)
11. Trigger control system
12. Operation mode hot key (Run/Stop, Single SEQ, Auto Set)
13. Menu Function Button
14. Multifunctional Knob
15. Function hot key
16. Menu display/hide key

Hantek DSO2C10 Specifications

General

Bandwidth	100 MHz
Channels	2
Sample Rate	1 GSa/s
Memory Depth	8 Mpts
Trigger Types	Edge, Pulse, Video, Slope, Alternative
Display Resolution	800 x 480 pixels
FFT	Yes
Math Functions	+, -, *, /, FFT
Power Supply	100-240 V AC, 50/60 Hz
Display	7 inch LCD
Vertical Resolution	8-bit
Interface	USB host, USB device
Input Impedance	1 MΩ ± 2%
Waveform Capture Rate	50, 000 wfm/s
