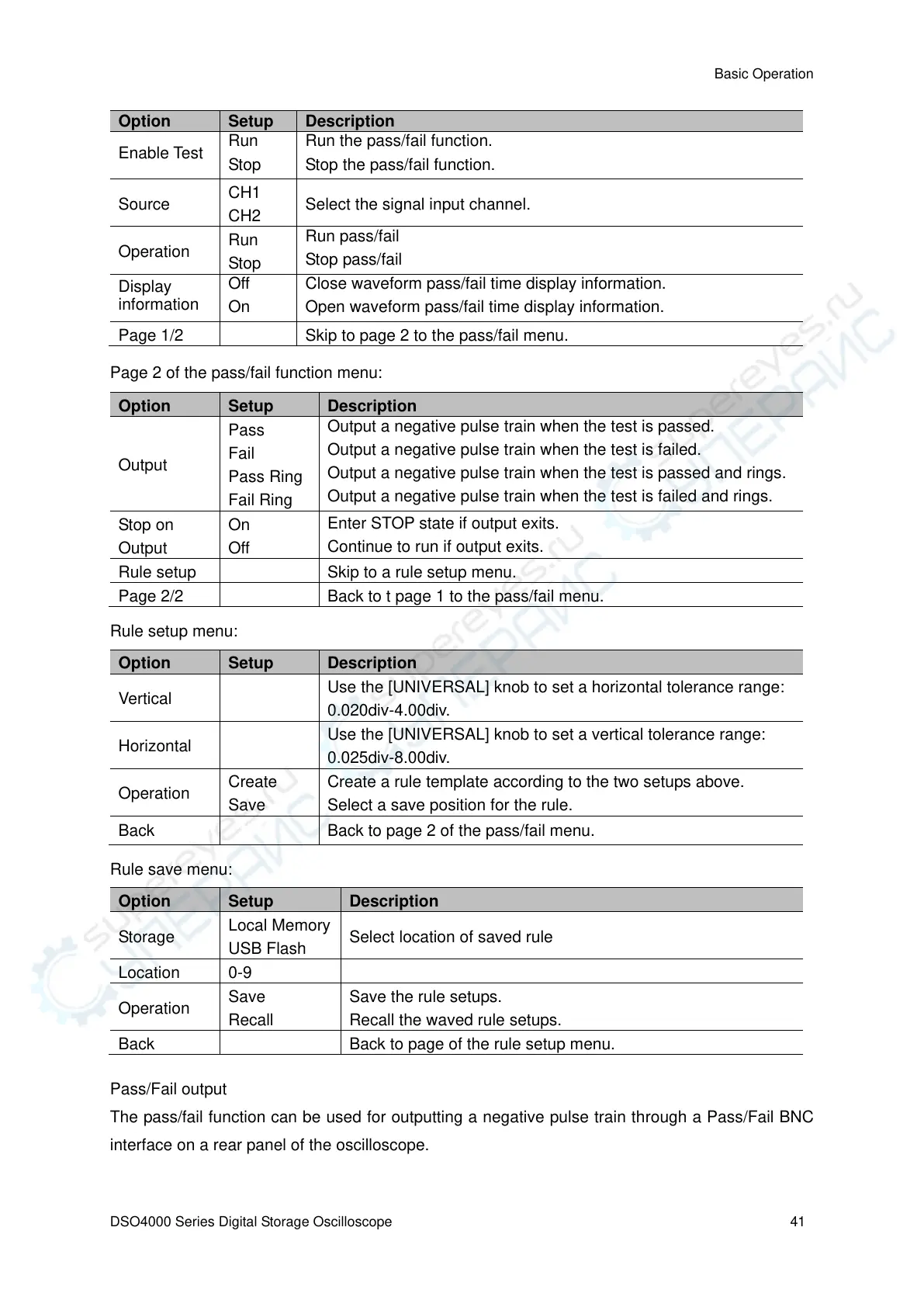

Hantek DSO4202 User Manual

Basic Operation
DSO4000 Series Digital Storage Oscilloscope 41
Option
Setup
Description
Enable Test
Run
Stop
Run the pass/fail function.
Stop the pass/fail function.
Source
CH1
CH2
Select the signal input channel.
Operation
Run
Stop
Run pass/fail
Stop pass/fail
Display
information
Off
On
Close waveform pass/fail time display information.
Open waveform pass/fail time display information.
Page 1/2
Skip to page 2 to the pass/fail menu.
Page 2 of the pass/fail function menu:
Option
Setup
Description
Output
Pass
Fail
Pass Ring
Fail Ring
Output a negative pulse train when the test is passed.
Output a negative pulse train when the test is failed.
Output a negative pulse train when the test is passed and rings.
Output a negative pulse train when the test is failed and rings.
Stop on
Output
On
Off
Enter STOP state if output exits.
Continue to run if output exits.
Rule setup
Skip to a rule setup menu.
Page 2/2
Back to t page 1 to the pass/fail menu.
Rule setup menu:
Option
Setup
Description
Vertical
Use the [UNIVERSAL] knob to set a horizontal tolerance range:
0.020div-4.00div.
Horizontal
Use the [UNIVERSAL] knob to set a vertical tolerance range:
0.025div-8.00div.
Operation
Create
Save
Create a rule template according to the two setups above.
Select a save position for the rule.
Back
Back to page 2 of the pass/fail menu.
Rule save menu:
Option
Setup
Description
Storage
Local Memory
USB Flash
Select location of saved rule
Location
0-9
Operation
Save
Recall
Save the rule setups.
Recall the waved rule setups.
Back
Back to page of the rule setup menu.
Pass/Fail output
The pass/fail function can be used for outputting a negative pulse train through a Pass/Fail BNC
interface on a rear panel of the oscilloscope.
