DSO4000 Series Digital Storage Oscilloscope 1
1.1 Accidence of front panel and the user interface
This section will make you understand the front operation panel of this series of digital oscilloscope
at first before use.
1.1.1 Front Panel
The content below simply describes and introduces the front panel and the back part of this series
of digital oscilloscope so that you can get familiar with this series of digital oscilloscope well within
the shortest time.

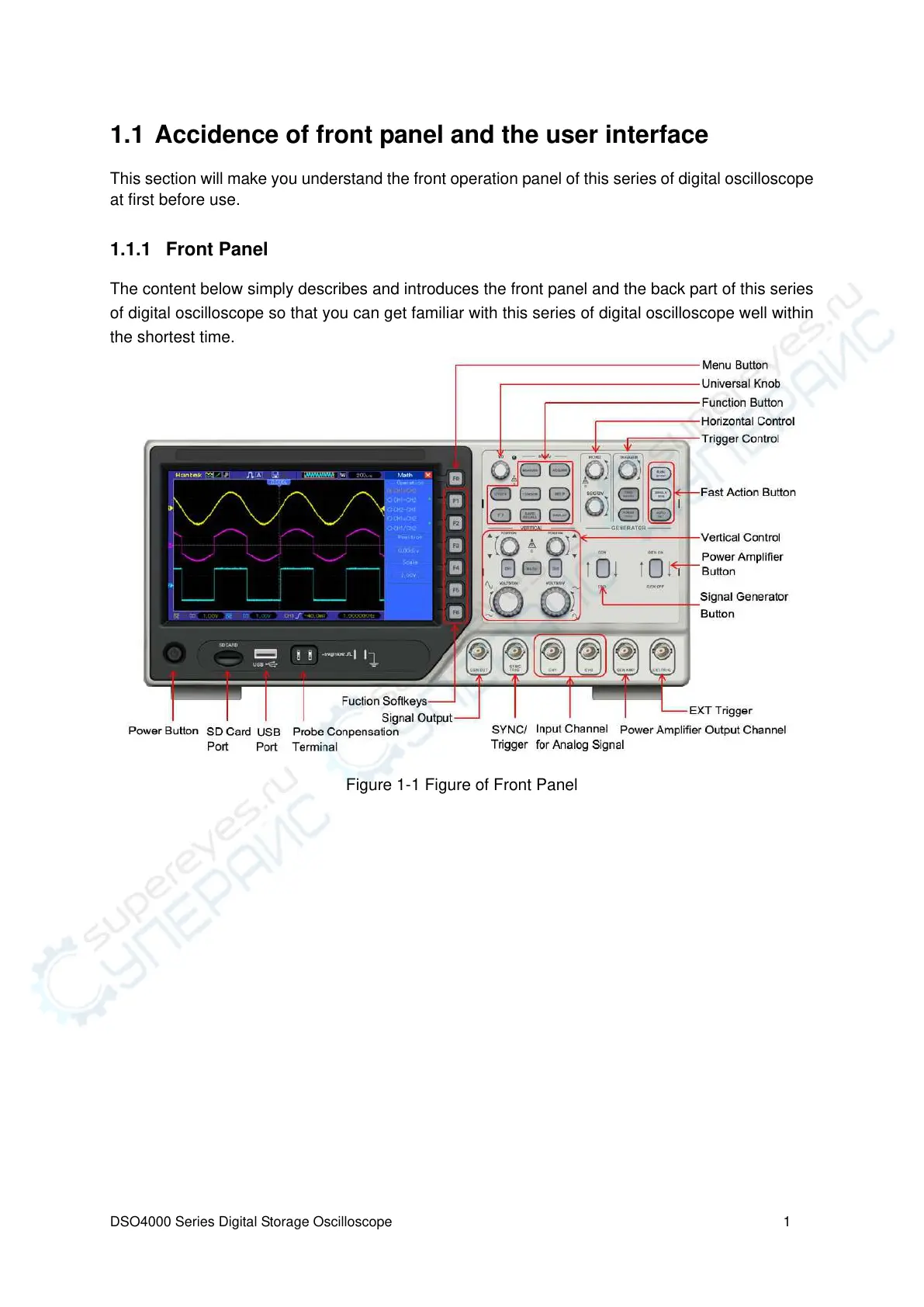

Figure 1-1 Figure of Front Panel
