Hantek DSO4202 User Manual

Specifications

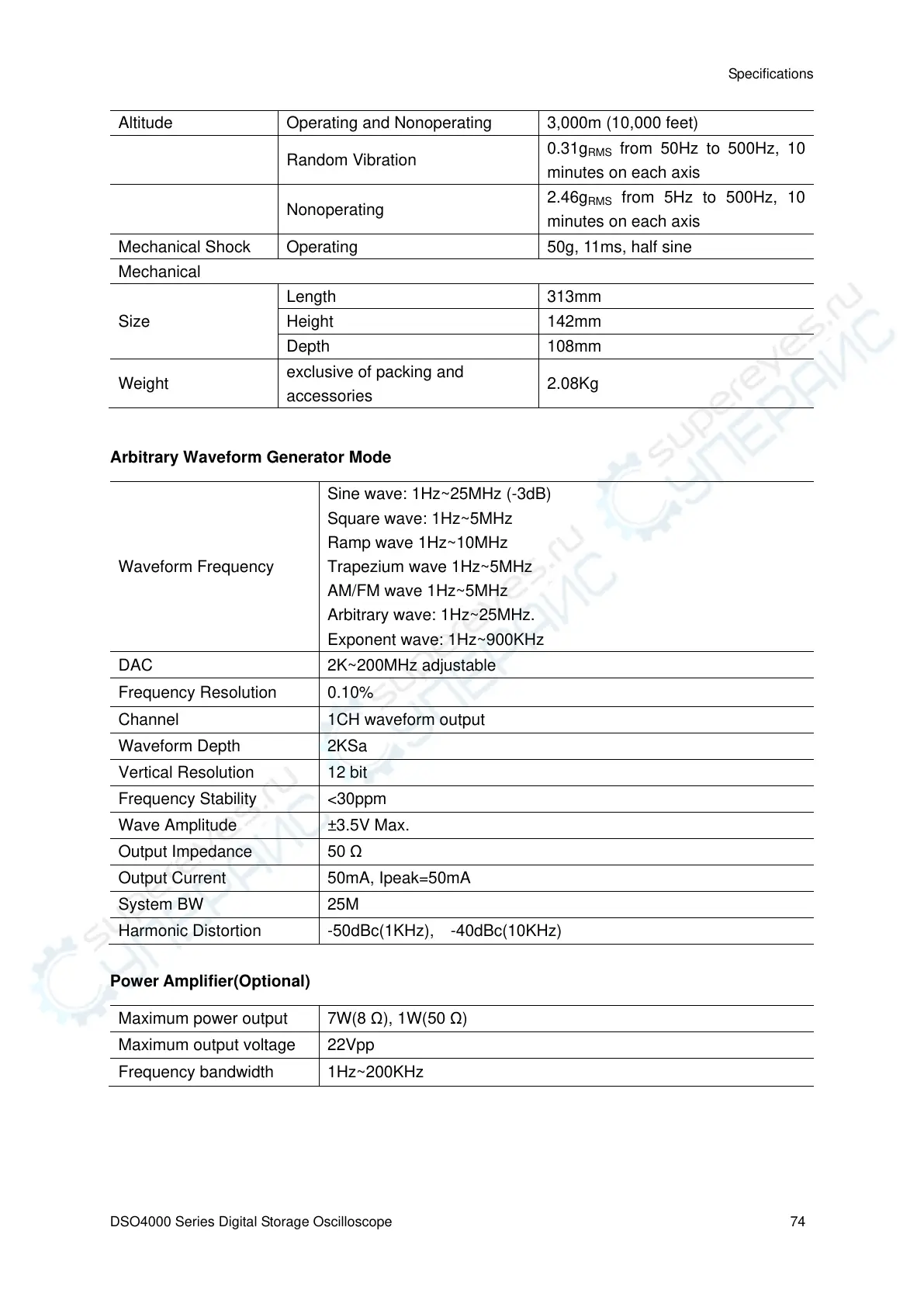

DSO4000 Series Digital Storage Oscilloscope 74
Altitude
Operating and Nonoperating
3,000m (10,000 feet)
Random Vibration
0.31g
RMS
from 50Hz to 500Hz, 10
minutes on each axis
Nonoperating
2.46g
RMS
from 5Hz to 500Hz, 10
minutes on each axis
Mechanical Shock
Operating
50g, 11ms, half sine
Mechanical
Size
Length
313mm
Height
142mm
Depth
108mm
Weight
exclusive of packing and
accessories
2.08Kg
Arbitrary Waveform Generator Mode
Waveform Frequency
Sine wave: 1Hz~25MHz (-3dB)
Square wave: 1Hz~5MHz
Ramp wave 1Hz~10MHz
Trapezium wave 1Hz~5MHz
AM/FM wave 1Hz~5MHz
Arbitrary wave: 1Hz~25MHz.
Exponent wave: 1Hz~900KHz
DAC
2K~200MHz adjustable
Frequency Resolution
0.10%
Channel
1CH waveform output
Waveform Depth
2KSa
Vertical Resolution
12 bit
Frequency Stability
<30ppm
Wave Amplitude
±3.5V Max.
Output Impedance
50 Ω
Output Current
50mA, Ipeak=50mA
System BW
25M
Harmonic Distortion
-50dBc(1KHz), -40dBc(10KHz)
Power Amplifier(Optional)
Maximum power output
7W(8 Ω), 1W(50 Ω)
Maximum output voltage
22Vpp
Frequency bandwidth
1Hz~200KHz

Hantek DSO4202 Specifications

General

Brand	Hantek
Model	DSO4202
Category	Test Equipment
Language	English
