Basic Operation
DSO5000P Series Digital Storage Oscilloscope User Manual 17
oscilloscope also has an arrow icon at the top of the graticule to indicate the horizontal position.

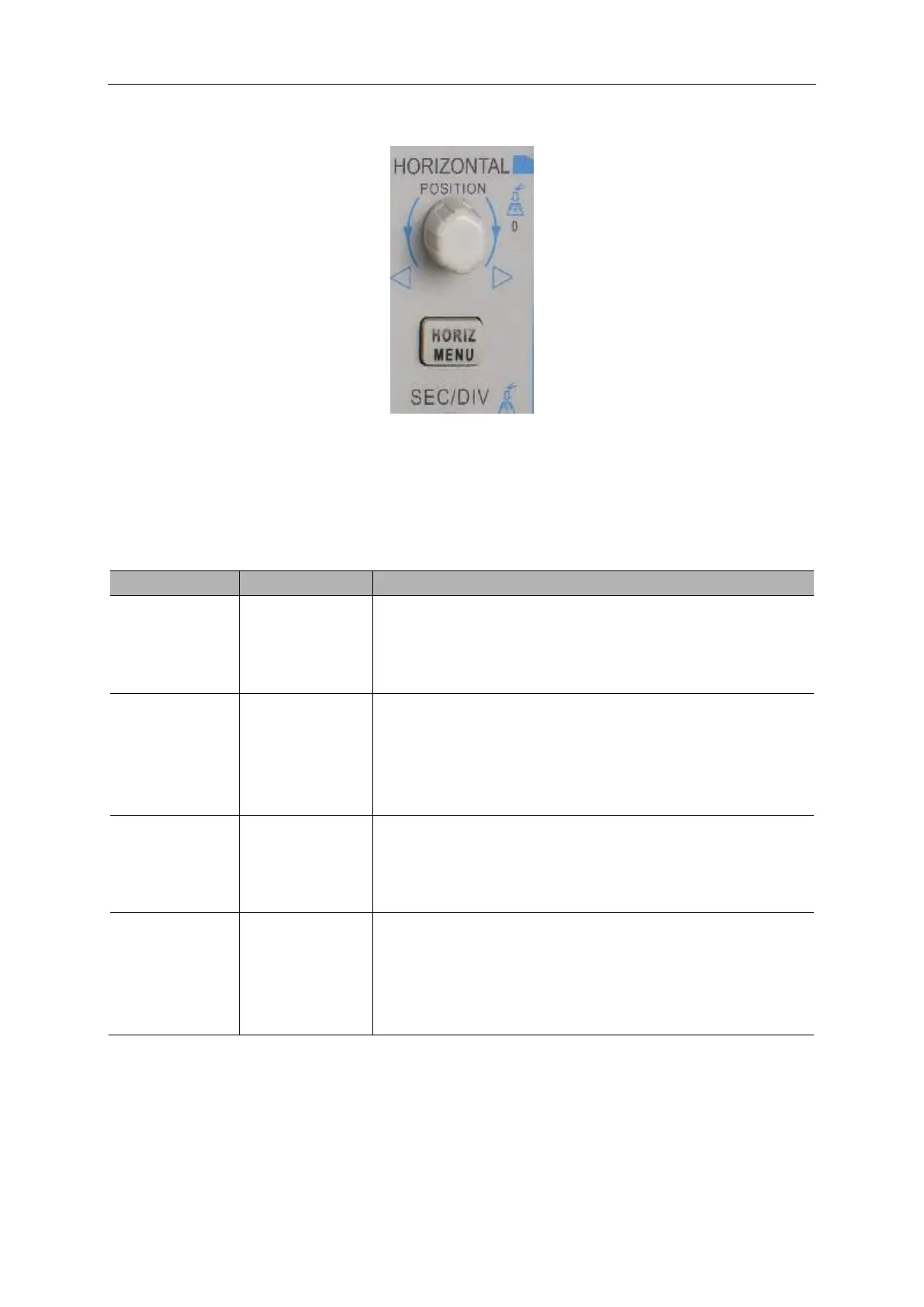

1. HORIZONTAL POSITION Knob: Used to control the trigger position against the screen center.
Push this button to reset the trigger point back to the screen center.
AN: Used to set the horizontal position as zero.
2. Each option in HORIZ MENU is described as follows.
Major Window
Minor Window
Selects the major or minor window in dual-window mode.
The window is highlighted once selected. Press this option
button in single-window mode to enter the daul-window
mode.
Right arrow
Left arrow
Set/Clear
Clear All
This function is usable only in dual-window mode. It sets
marks at some waveform record locations that users are
interested in, and searches for these marks by right and left
arrows. Then it positions the window to this mark for further
observation.
Select this menu and turn the multi-functional knob to
adjust the trigger holdoff time within the range of
100ns-10s. Select this menu and push the multi-functional
knob to reset the holdoff time with the starting value 100ns.
This function is usable in dual-window mode. Push this
menu button and auto move it from left to right at a
specified speed. In the expanded window will display
corresponding waveforms until it stops once reaching the
rightmost side of the major scan window
To Next Page
