The time between the first rising edge of source 1 and the first
falling edge of source 2.
Off
Do not take any measurement.
Use the knob V0 or the functional keys F3, F4 to select the type of measurement.
Taking Measurements: For a single waveform (or a waveform divided among multiple
waveforms), up to 8 automatic measurements can be displayed at a time. The waveform channel
must stay in an ‘ON’ (displayed) state to facilitate the measurement. The automatic measurement
can not be performed on reference or math waveforms, or in XY or Scan mode.
5.5.3 Acquire
Push the ACQUIRE button to set the acquisition parameter.
Options
Settings
Comments
Category
Real Time
Equ-Time
Acquire waveforms by real-time digital technique.
Rebuild waveforms by equivalent sample technique.
Mode
(Real Time)
Normal
Peak Detect
Average
Acquire and accurately display most waveforms.
Detect glitches and eliminate the possibility of aliasing.
Reduce random or uncorrelated noise in signal display.
The number of averages is selectable.
Averages
(Real Time)
4
8
16
32
64
128
Select the number of averages by pressing F3 or F4.

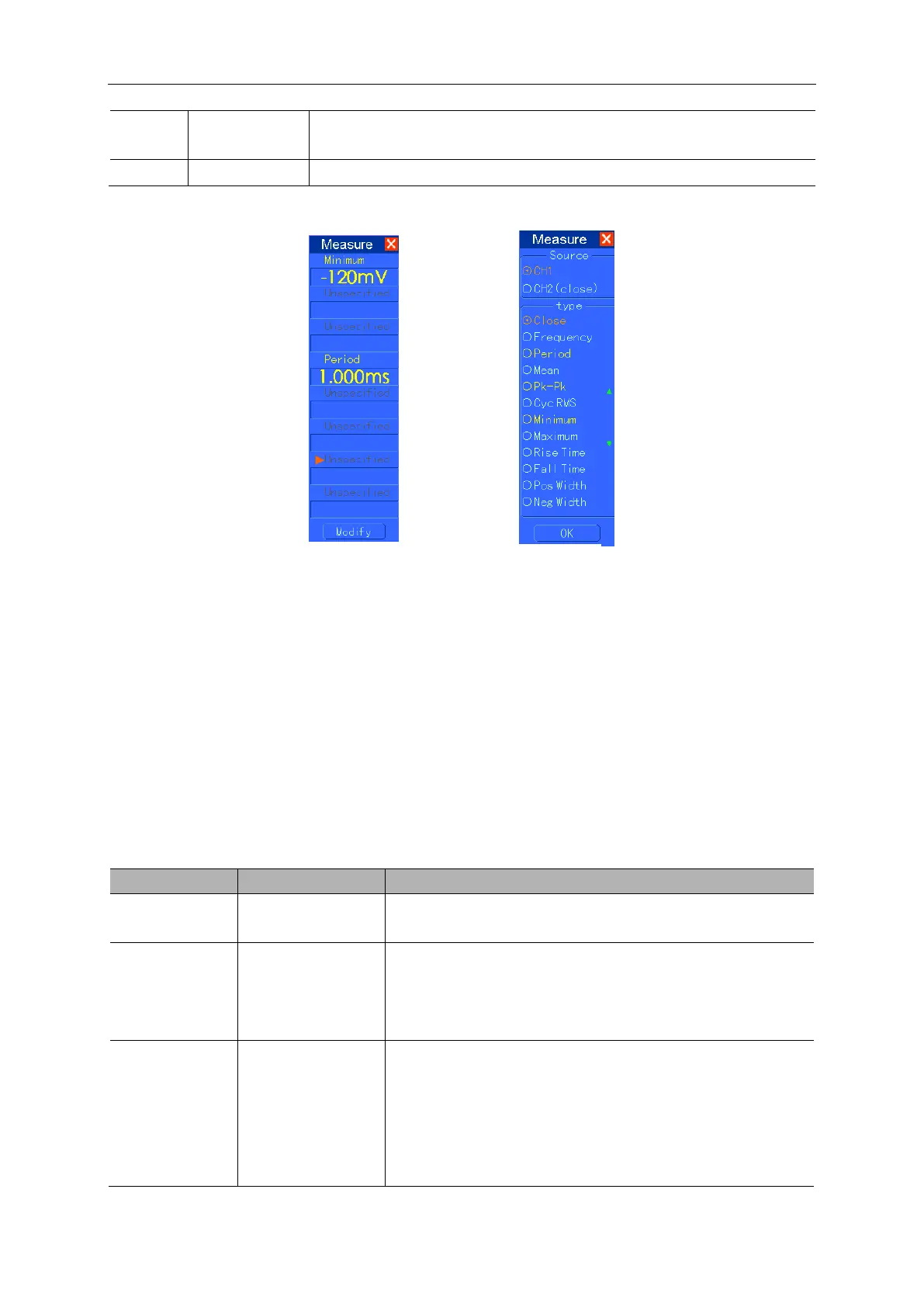

The readouts in big font size on
the menu are just results of the
corresponding measurements.
