Hantek DSO5000P Series

Basic Operation
DSO5000P Series Digital Storage Oscilloscope User Manual 32

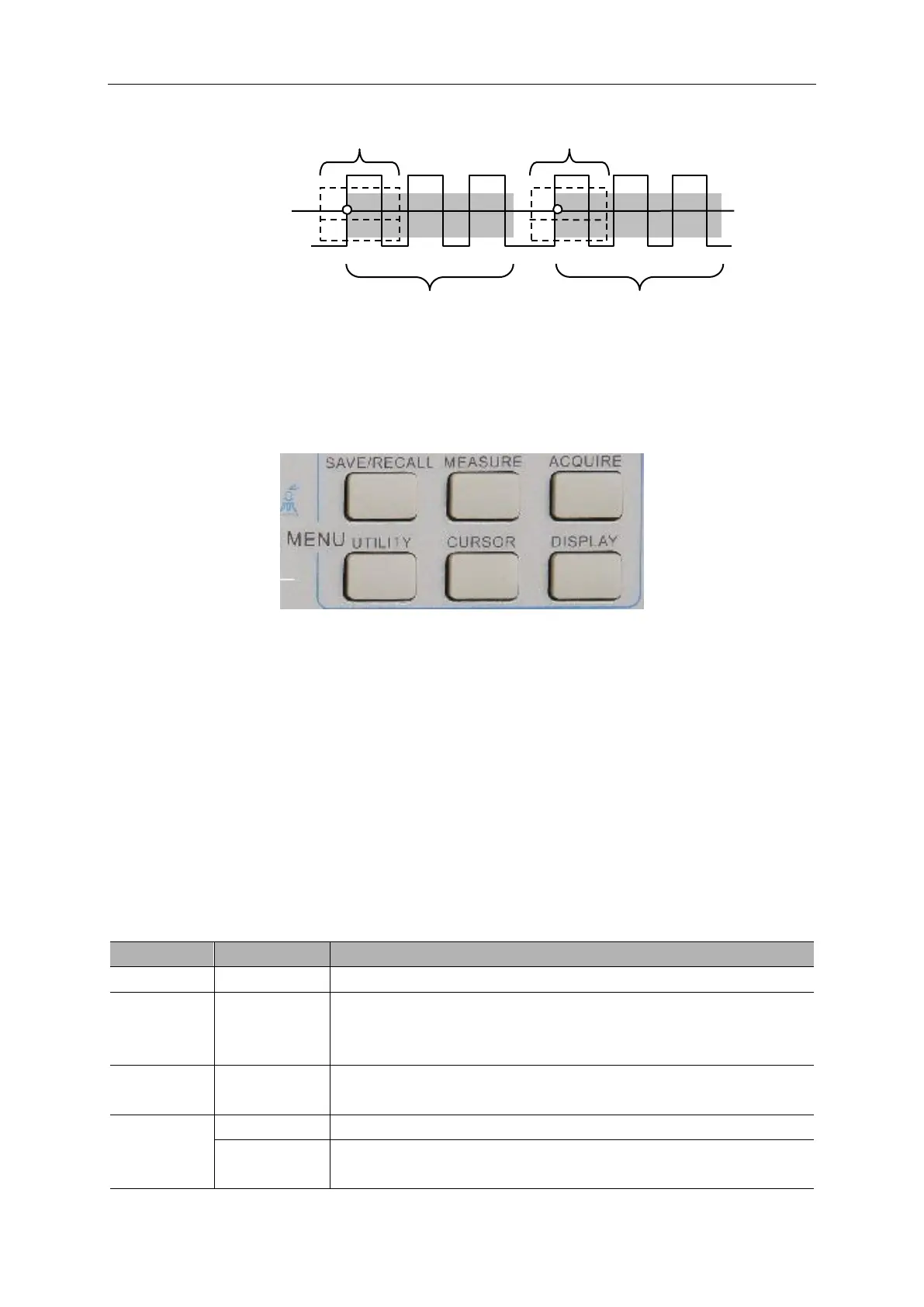

5.5 Menu and Option Buttons
As shown below, these six buttons at the top of the front panel are used mainly to recall relative
setup menus.
SAVE/RECALL: Displays the Save/Recall menu for setups and waveforms.
MEASURE: Displays the Measure menu.
ACQUIRE: Displays the Acquire menu.
UTIILITY: Displays the Utility menu.
CURSOR: Displays the Cursor menu.
DISPLAY: Displays the Display menu.
5.5.1 Save/Recall
Press the SAVE/RECALL button to save or recall oscilloscope setups or waveforms.
The first page shows the following menu.
Options
Settings
Comments
Waveforms
Source
CH1
CH2 off
MATH off
Select a waveform display to store.
REF
RefA
RefB
Select the reference location to store or recall a waveform.
Operation
Save
Save the source waveform to the selected reference location.
Ref on
Ref off
Display or remove the reference waveform on the screen.
Trigger Level
Indicates
Trigger Points
Holdoff
Holdoff
Acquisition Interval
Acquisition Interval
