INSTALLING FAN WITHOUT LIGHT KIT
3
4.
4
3.

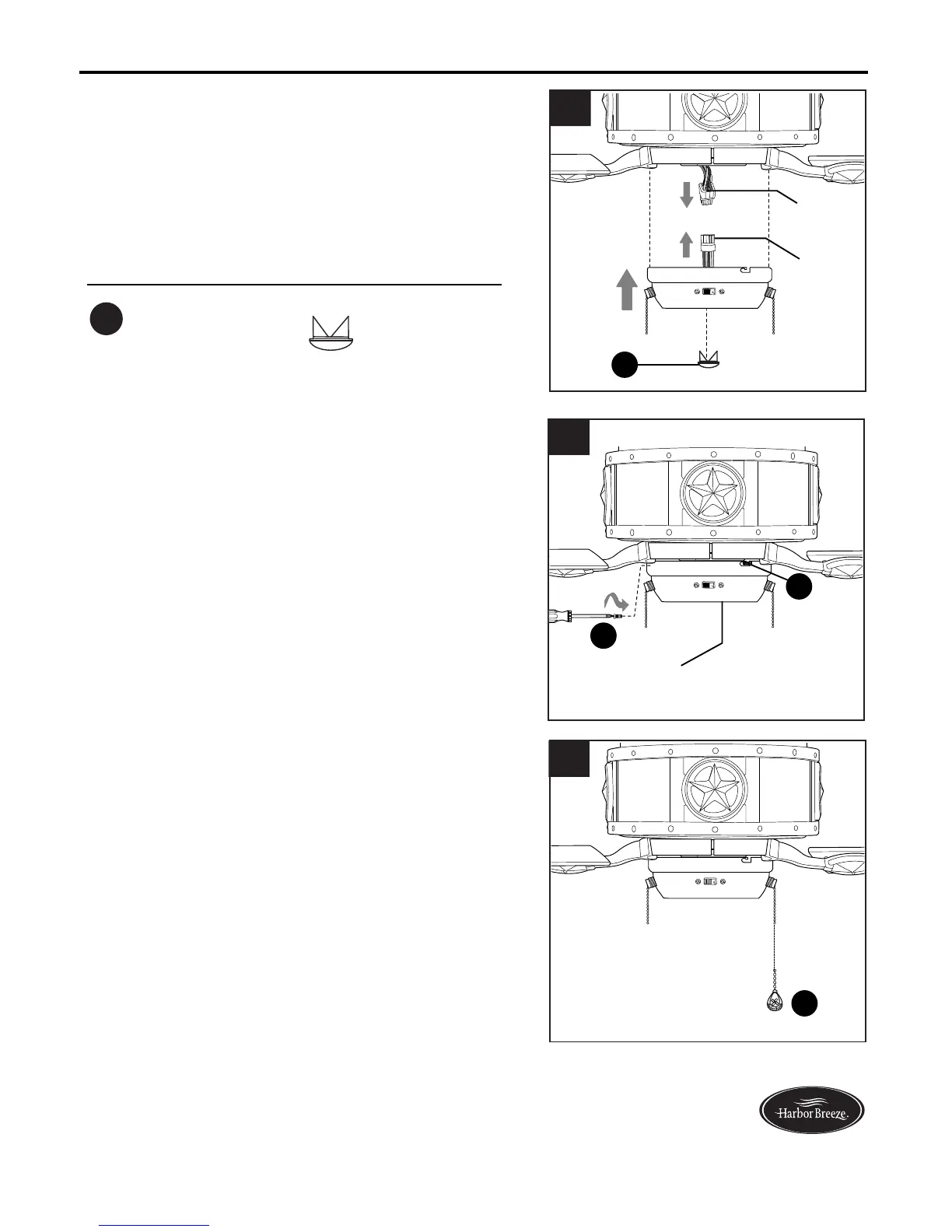

Align slotted holes in switch housing with
loosened switch housing screws (U) in switch
housing plate (H). Twist switch housing to lock,
then re-install the switch housing screw (U)
previously removed (Step 4, page 12). Tighten all
switch housing screws (U) securely.
Attach pull chain extension (X) or custom pull
chain extension (not included) to fan pull chain.
Assembly is now complete.
Firmly place cap (DD) in hole in middle of switch
housing.
Connect male plug from motor housing (G) to
female plug from the switch housing, matching
up the colors on the male plug with the colors on
the female plug for a proper fit. Make sure plugs
are connected completely.
2.
2
Hardware Used
Cap
x 1
DD
Male
Plug
Female
Plug
DD
Switch
Housing
U
U
X
To Next Page
