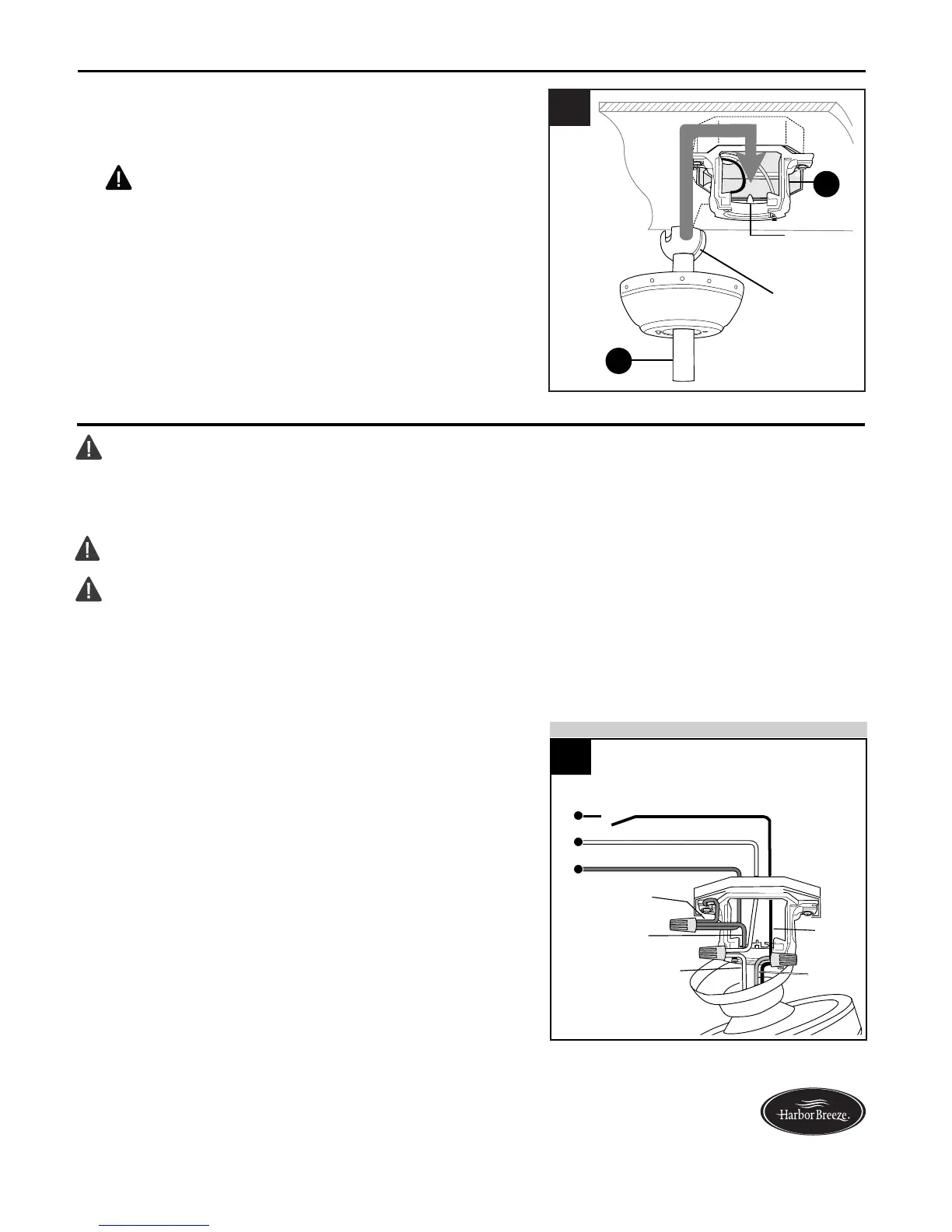

FAN MOUNTING
9
Lowes.com/harborbreeze
WIRING
6.
6
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and a ground (green or bare) wire is present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
1.
Choose wiring diagram (Fig. 1a, Fig. 1b or Fig. 1c) that
fits your situation and make appropriate wiring
connections as follows: [IMPORTANT: For each wire
connection below, use one of the wire connectors
(CC), making sure to screw wire connector (CC) on in
a clockwise direction.]
1a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from fan
to BLACK wire from ceiling. Connect WHITE wire
from fan to WHITE wire from ceiling. Connect all
GROUND (GREEN) wires together from fan (on
downrod (A) and mounting bracket (B)) to
BARE/GREEN wire from ceiling.
NOTE: This fan is remote control adaptable (remote control not included). Please refer to instructions
provided with the remote control before proceeding with these wiring instructions.
Hanging
Ball Slot
Tab
A
B
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
BLACK (POWER)
WHITE (NEUTRAL)
BLACK
GROUND/GREEN (BARE)
WHITE
BLUE &
BLACK
120V POWER
FROM CEILING
GREEN
GREEN
Install hanging ball of downrod (A) into opening of
mounting bracket (B). Align the slot in hanging ball
with the tab in mounting bracket (B).
DANGER: Failure to align slot in hanging ball
with the tab in mounting bracket (B) may result in
serious injury or death.
To Next Page
