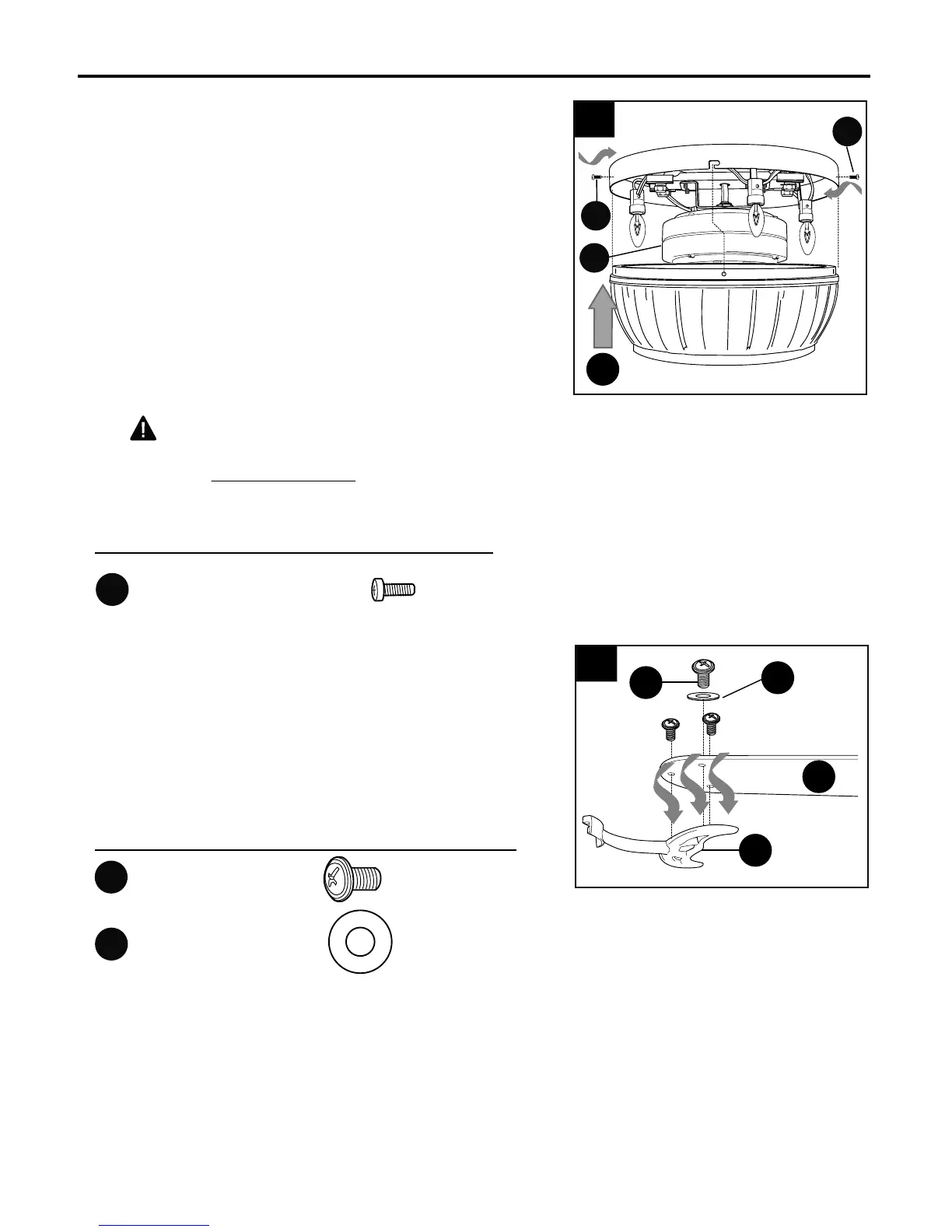

Locate four motor housing mounting screws (FF) in
hardware pack. Temporarily lift motor housing (L)
to mounting plate (A) to determine which of the
four holes in motor housing (L) align with the two
slotted holes in mounting plate (A). Lower motor
housing (L) and partially insert one motor housing
mounting screw (FF) in each hole in motor housing
(L) that aligned with one of the slotted holes. Slide
motor housing (L) over mounting plate (A), aligning
loosened motor housing mounting screws (FF) in
motor housing (L) with slotted holes in mounting
plate (A). Twist motor housing (L) to lock. Insert the
other two motor housing mounting screws (FF) and
tighten all four motor housing mounting screws
(FF) securely. (Fig. 4)
CAUTION: Do NOT use power tools to
avoid breakage or cracking of the motor housing
(L). Use a HAND screwdriver to tighten screws
instead.
FINAL INSTALLATION
11
4.
4
L
B
FF
FF
B
AA
Blade Screw x15
Fiber Blade Washer x15
BB
Hardware Used
5.
Before proceeding, make sure electricity has
been SHUT OFF.
Partially insert three blade screws (AA), along with
three fiber blade washers (BB), to attach one blade
arm (D) to a blade (E). Then, tighten each blade
screw (AA), starting with the one in the middle.
(Fig. 5) Repeat with remaining blades (E).
E
5
D
AA
BB
Motor Housing Mounting x4
Screw
Hardware Used
FF
