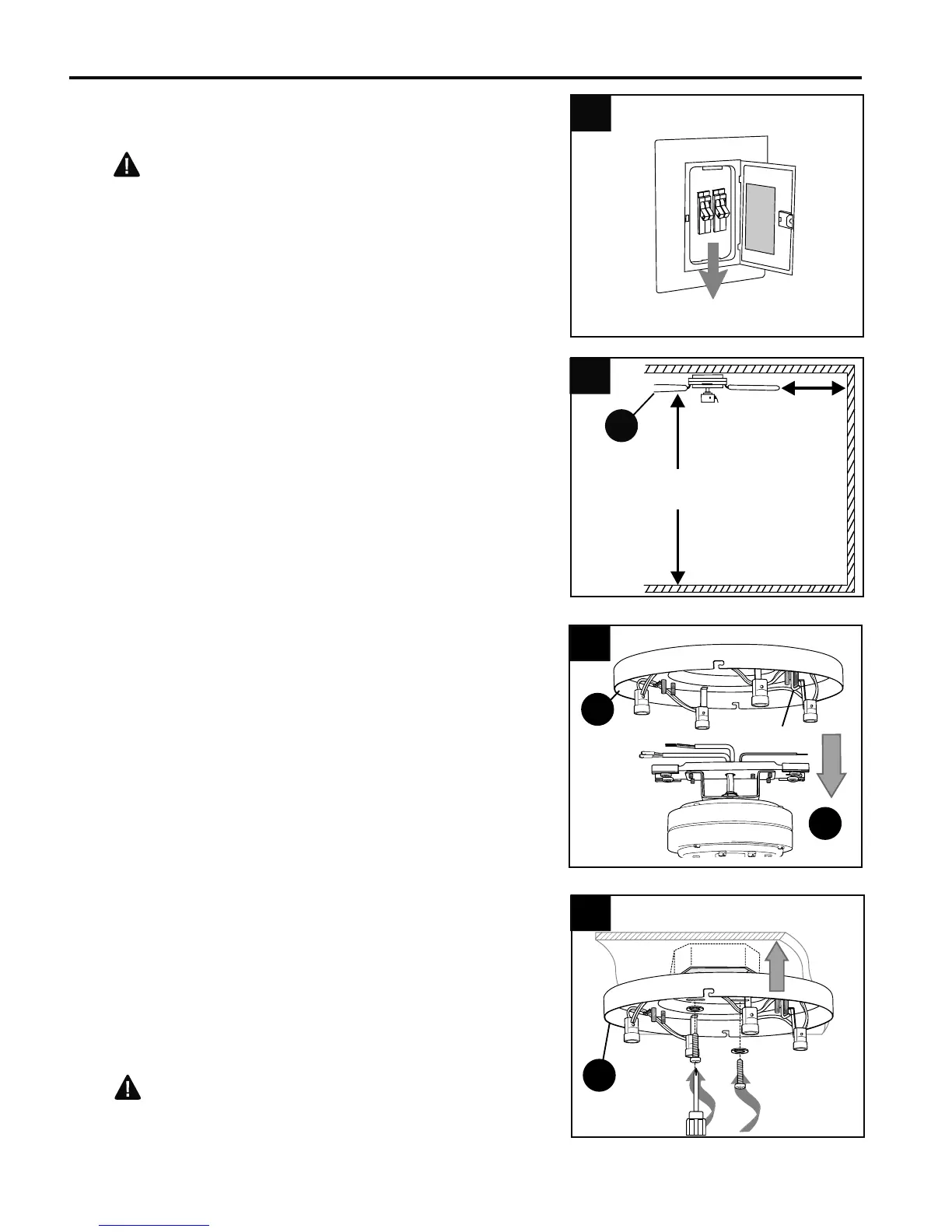

INITIAL INSTALLATION
Check to make sure blades (E) are at least 30 in.
from any obstruction and at least 7 ft. above the
floor. (Fig. 2)
1
ON
OFF
ON
OFF
Turn off circuit breakers and wall switch to the fan
supply line leads. (Fig. 1)
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
2.
6
7 ft.
min.
30 in.
min.
2
E
3.
Before proceeding, make sure that motor
assembly (B) and mounting plate (A) do not
remain connected to one another after they have
been removed from the box. If necessary,
disengage motor assembly (B) from “J” hook on
mounting plate (A) so that motor assembly (B) can
be separated from mounting plate (A). (Fig. 3)
3
4.
Secure mounting plate (A) to outlet box using
screws, spring washers, and flat washers
provided with the outlet box. (Fig. 4) Pull wires
from outlet box through center hole in mounting
plate (A).
*Note: It is very important that you use the proper
hardware when installing the mounting plate (A)
as this will support the fan.
CAUTION: Be sure outlet box is properly
grounded or that a ground (green or bare) wire is
present.
A
4
A
B
"J" Hook
