13HARDI
®
ATV SPRAYER DIAPHRAGM OPERATOR'S MANUAL
1. The sprayer should not be attached to any ATV/tractor while
adjusting the axle position. Make sure the storage jack is supporting
the tongue of the sprayer.
2. Using suitable lifting equipment, lift the rear of the sprayer frame until
the wheels just leave the ground.
3. Remove bolts A (Fig. 2) from both sides of the sprayer frame.
4. Move the axle to the desired set of holes. Re-install and tighten bolts
A (Fig. 2).
5. Lower sprayer frame.
WARNING: ALWAYS CHECK THE TONGUE WEIGHT AFTER
CHANGING THE AXLE POSITION. MAKE SURE THE
TONGUE WEIGHT IS NOT TOO HEAVY OR TOO LIGHT
FOR SAFE OPERATION WITH YOUR ATV/TRACTOR.
3.3 Hitch Height Adjustment
1. Attach sprayer tongue to ball hitch on ATV/tractor.
2. Lock the ball hitch lever and secure with safety pin.
3. Remove storage jack pin B (Fig. 3). Raise storage jack to highest
position and replace pin.
4. If the sprayer tank is not level, support the front of the sprayer frame
with an adjustable jack and loosen the two U-bolts C (Fig. 3).
5. Raise or lower the sprayer frame with the adjustable jack until the
tank is level.
6. Tighten U-bolts C (Fig. 3) and remove adjustable jack.

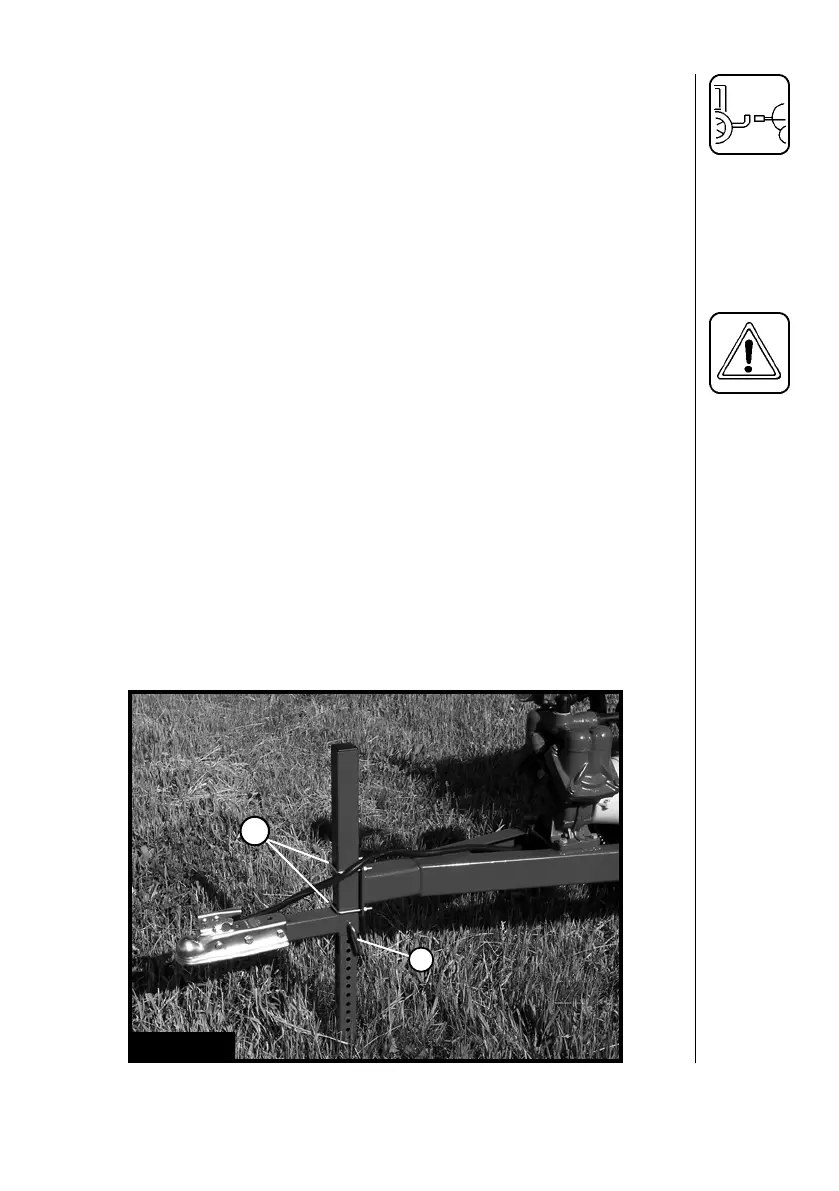

Fig. 3
C
B
