18 HARDI
®
ATV SPRAYER DIAPHRAGM OPERATOR'S MANUAL
9
10
11
1
2
4
8
3
12
13
14
6
7
5
1. Bottom Suction Valve
2. Suction Filter
3. Diaphragm Pump
4. Pressure Control Valve
5. Manifold Pressure Gauge
6. Agitation Valve
7. Spraygun Valve (optional)
8. Spraygun (optional)
9. Agitation
10. Tank
11. Bypass Return
12. Boom Distribution Valves
13. Boom
14. Boom Pressure Gauge

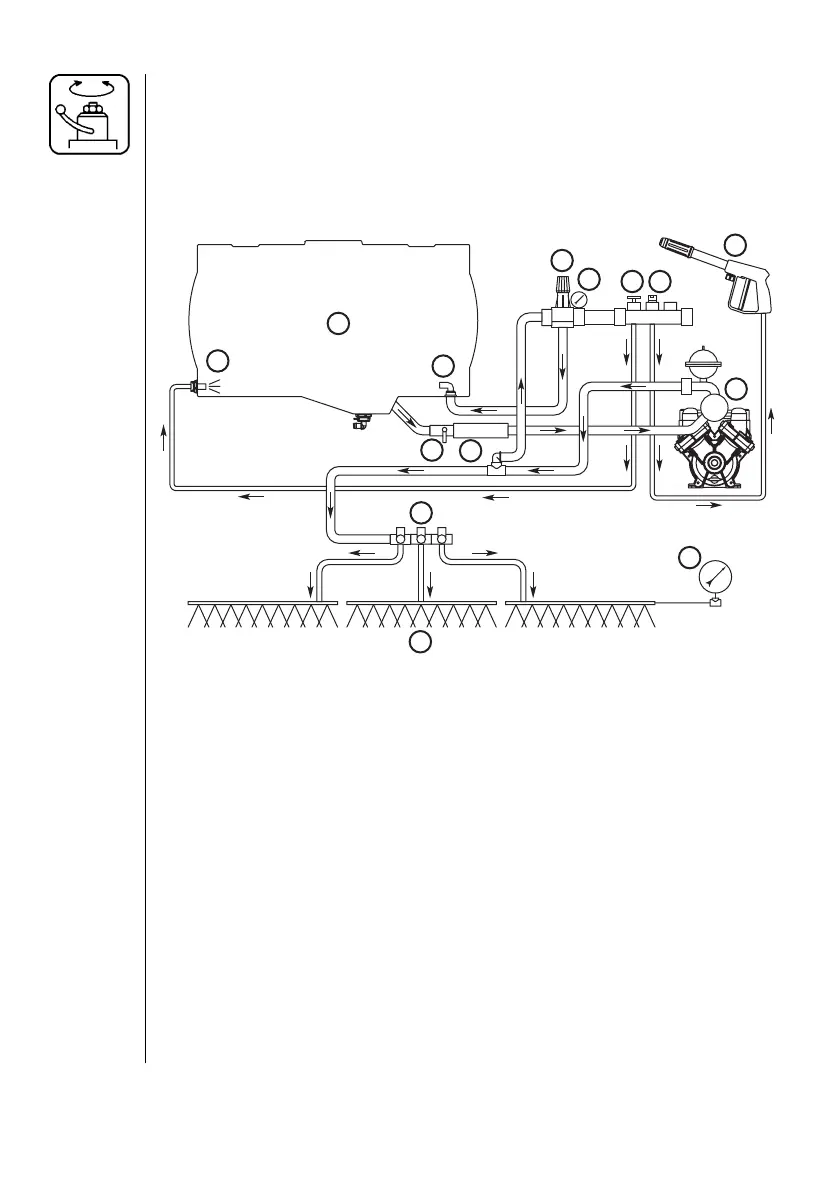

4.3 Standard Plumbing Diagram
Review and study the following diagram. By following the fl ow through
the diagram, you will better understand the various functions of your
sprayer system.
Standard Plumbing Diagram
Fig. 7
