19HARDI
®
ATV SPRAYER DIAPHRAGM OPERATOR'S MANUAL
10
11
12
1
2
4
9
3
14
15
16
6
7
5
13
8
1. Bottom Suction Valve
2. Suction Filter
3. Diaphragm Pump
4. Pressure Relief Valve*
5. Manifold Pressure Gauge
6. Agitation Valve
7. Spraygun Valve (optional)
8. Pressure Regulator
9. Spraygun (optional)
10. Agitation
11. Tank
12. Bypass Returns
13. Flowmeter
14. Boom Distribution Valves
15. Boom
16. Boom Pressure Gauge

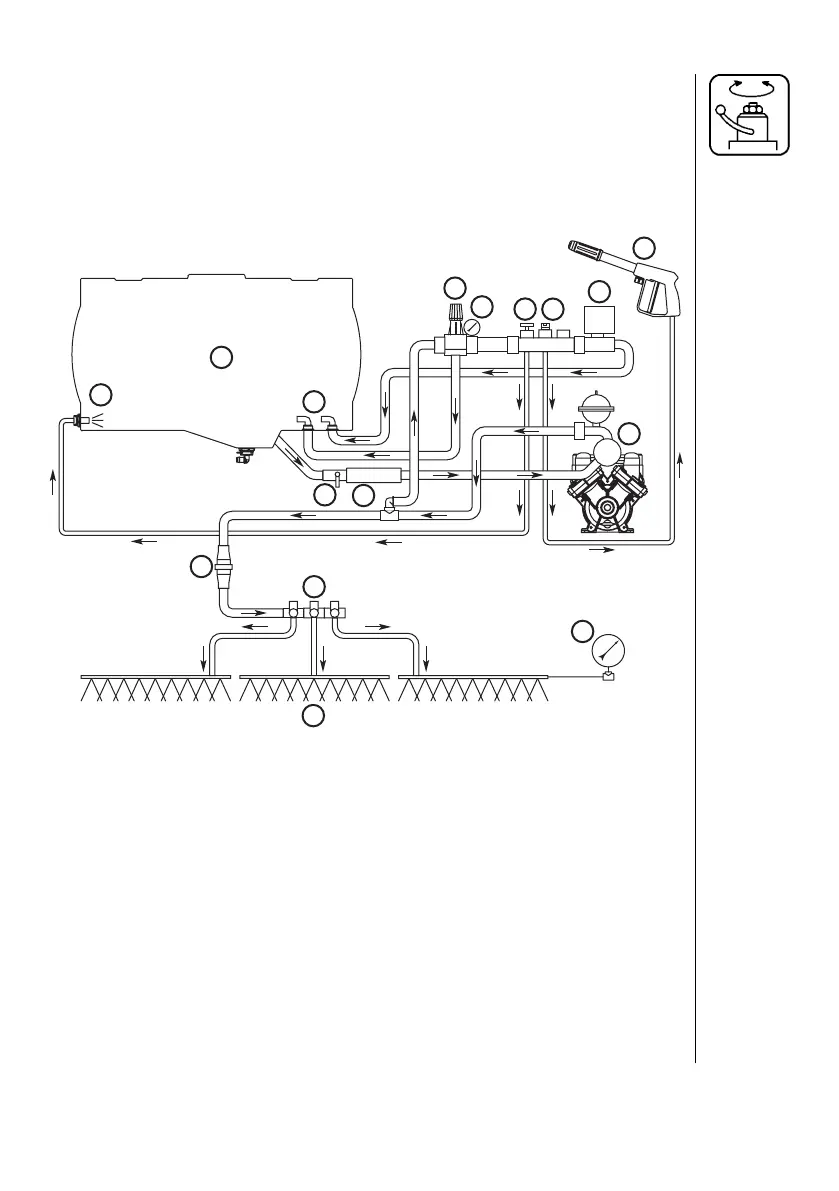

4.4 Plumbing Diagram with optional Rate Controller
Review and study the following diagram. By following the fl ow through
the diagram, you will better understand the various functions of your
sprayer system.
Rate Controller Plumbing Diagram
Fig. 8
*
Turn Pressure Relief Valve clockwise all the way in when used with
the optional Rate Controller.
