Operation
Turn green valve towards HARDI FILLER and the other
green valve towards agitation. Close remaining
valves.
3. Check that bottom valve A at the FILLER is closed.
4. Engage the pump and set P.T.O. speed at 540 r/min
or 1000 r/min (depending on pump model).
5. Open FILLER lid.
6. Measure the correct quantity of chemical and fill it into
the hopper.
NOTE! The scale in the hopper can only be used if the
sprayer is parked at level ground! It is recommended to
use a measuring jug for best accuracy.
7. Open the bottom valve A and the chemical is trans-
ferred to the main tank.
8. If the chemical container is empty it can be rinsed by
the container rinsing device (if fitted). Place the
container over the multi-hole nozzle and press the
lever B.
WARNING! Do not press lever B unless the multi-
hole nozzle is covered by a container to avoid
spray liquid hitting the operator.
IMPORTANT! Rinsing device uses spray liquid to rinse
containers for concentrated chemicals. Always rinse the
chemical containers with clean water several times until
they are clean before disposal.
9. Engage the hopper rinsing device by opening valve C.
10. Close valve C again when the hopper is rinsed.
IMPORTANT! The hopper rinsing device is using spray
liquid for rinsing the hopper for concentrated chemical!
The FILLER must always be cleaned together with the
rest of the sprayer when the spray job is done.
11. Close valve A and the FILLER lid again.
12. When the spray liquid is well mixed, turn handle on
the Pressure Manifold towards Spraying position.
Keep P.T.O. engaged so the spray liquid is continu-
ously agitated until it has been sprayed on the crop.

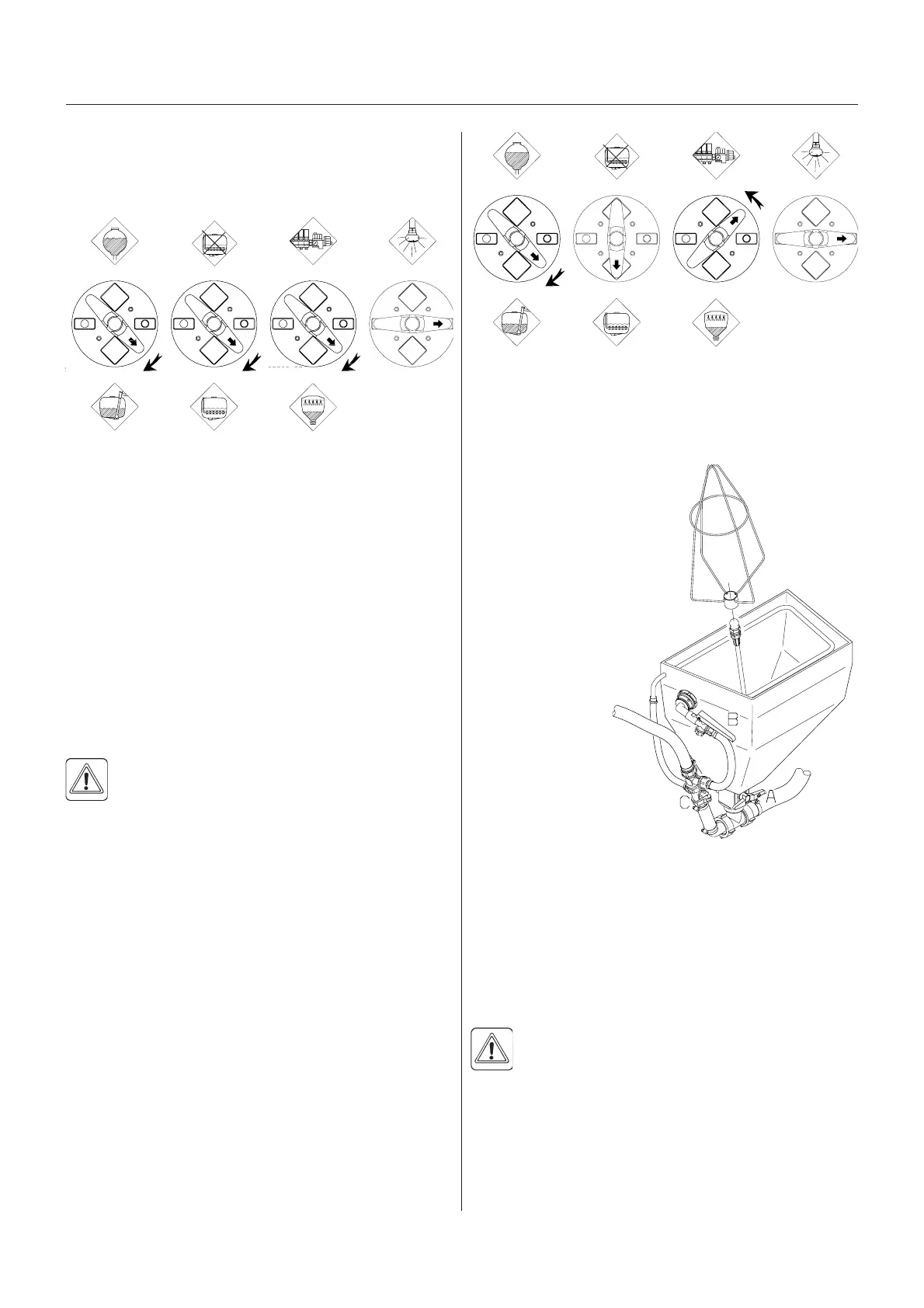

Filling of Powder chemicals
1. Fill the main tank at least
1
/
2
with water (unless some-
thing else is stated on the
chemical container label).
See section Filling of
water.
2. Turn the handle at the
Suction Manifold
towards Main tank
and green valve
towards Agitation.
Turn the handle at
the Pressure
Manifold towards
HARDI FILLER.
Close remaining
valves.
3. Engage the pump
and increase
P.T.O. speed to
540 r/min or 1000 r/
min (depending on
pump model).
4. Open the bottom valve A at
the FILLER. Open FILLER lid.
5. Engage the hopper rinsing device by opening valve C.
6. Measure the correct quantity of chemical and sprinkle
it into the hopper as fast as the rinsing device can
flush it down.
7. If the chemical container is empty it can be rinsed by
the container rinsing device (if fitted). Fit the bag
bracket and place the powder bag over the multi-hole
nozzle and press the lever B.
WARNING! Do not press lever B unless the multi-
hole nozzle is covered by a container to avoid
spray liquid hitting the operator.
IMPORTANT! Rinsing device uses spray liquid to rinse
containers for concentrated chemicals. Always rinse the
chemical containers with clean water several times until
they are clean before disposal.
9. Close valve C again when the hopper is rinsed.
